PP 11536 - Poulan Pro Lawn Tractor Mower Deck Parts Diagram

Lawn Tractor

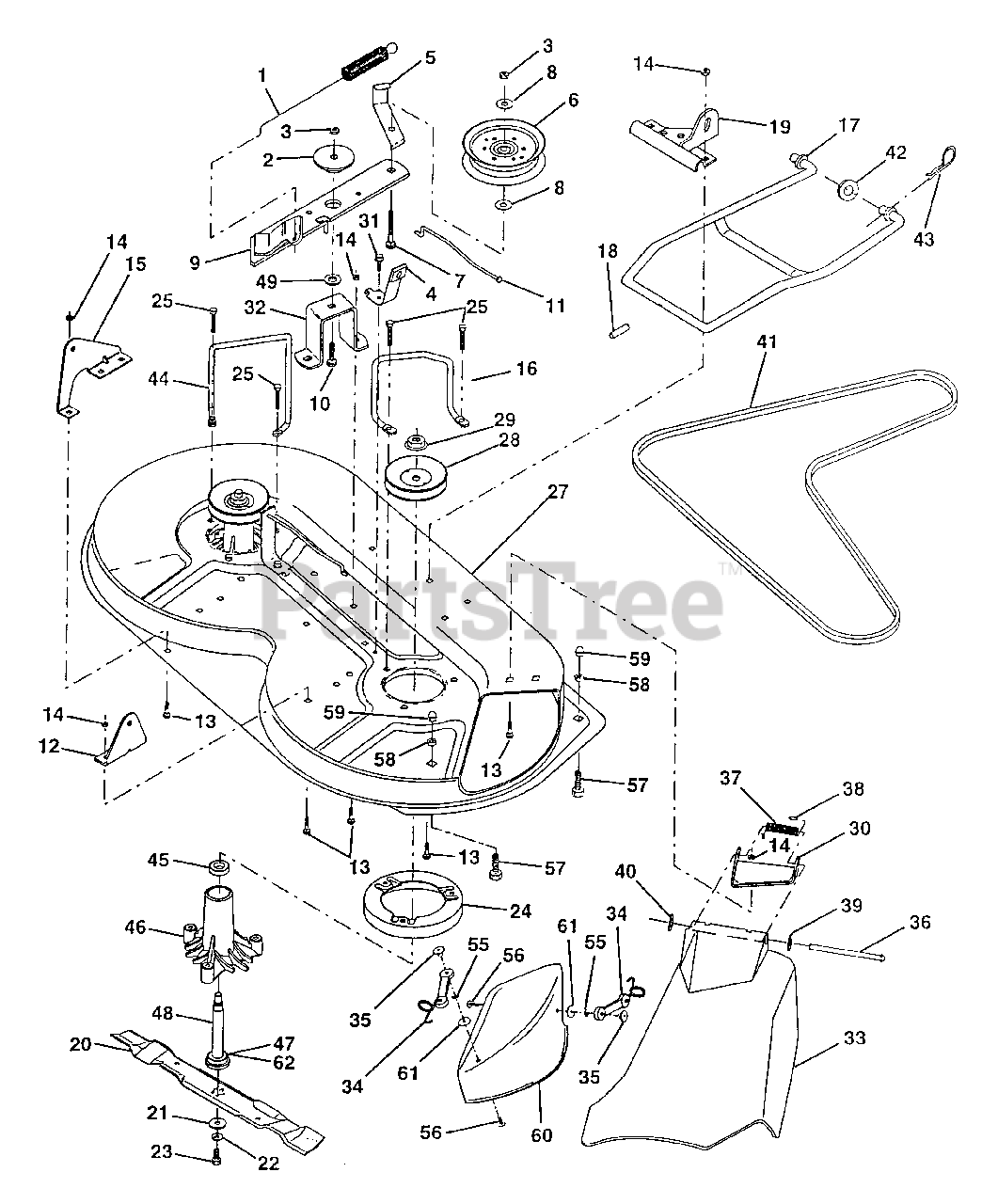

Mower Deck Parts Diagram

  • Title

1

Poulan 140064

Spring, Mower Clutch
(Superseded to 532140064)

$24.99

$

In Stock, only 1 left!

0

2

Poulan 122052X

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

3

Poulan 73680600

Nut, Crownlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

4

Poulan 130840

Brake Asm.
(Superseded to 532130840)

$12.99

$

Usually ships in 3-10 days

0

5

Poulan 131251

Guide, Belt Idler

$

$

Not available

6

Poulan 121316X

Pulley, Flat Idler
(Superseded to 532121316)

$51.99

$

In Stock, only 4 left!

0

7

Poulan 72110616

Bolt, Carr. 3/8-16 x 1-3/4 Gr. 5
(Superseded to 872110616)

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 19131410

Washer 13/21 x 7/8 x 10 Ga.
(Superseded to 819131410)

$1.99

$

Usually ships in 3-10 days

0

9

Poulan 127744

Arm Asm., Idler Mower (AYP part number)

$

$

Not available

10

Poulan 72140610

Bolt, Carriage 3/8-16 x 1-1/4
(Superseded to 595901101)

$4.99

$

Usually ships in 3-10 days

0

11

Poulan 130841

Rod, Brake
(Superseded to 532130841)

$30.99

$

Usually ships in 3-10 days

0

12

Poulan 127356

Bracket, Lift R.H. Rear

$2.99

$

Usually ships in 3-10 days

0

13

Poulan 72140506

Bolt, Carriage 5/16-18 x 5/8
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

14

Poulan 73680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

15

Poulan 127357

Bracket, Lift L.H. Rear

$3.99

$

Usually ships in 3-10 days

0

16

Poulan 153298

Keeper, R.H.
(Superseded to 532153298)

$14.99

$

Usually ships in 3-10 days

0

17

Poulan 128508

Link, Asm. Mower Stabilizer
(Superseded to 539128508)

$157.99

$

Usually ships in 3-10 days

0

18

Poulan 128511

Pin, Drive

$2.49

$

Usually ships in 3-10 days

0

19

Poulan 127380

Bracket, Asm. Front

$5.99

$

Usually ships in 3-10 days

0

20

Poulan 140101

Blade Mulching
(Superseded to 532140101)

$27.99

$

Usually ships in 3-10 days

0

21

Poulan 140296

Washer, Hard
(Superseded to 532140296)

$6.99

$

In Stock, only 2 left!

0

22

Poulan 10030600

Washer, Lock 3/8 (AYP part number)

$

$

Not available

23

Poulan 850857

Bolt 3/8-24 x 1-1/4 Gr. 8
(Superseded to 532850857)

$4.99

$

In Stock, only 1 left!

0

24

Poulan 140329

Stripper (AYP part number)
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

25

Poulan 138776

Screw Thdrol Hex Hd (AYP part number)
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

27

Poulan 156600

Deck Assembly
(Superseded to 532174082)

$

$

Not available

28

Poulan 153531

Pulley, Mandrel (AYP part number)
(Superseded to 532173434)

$18.99

$

Usually ships in 3-10 days

0

29

Poulan 137266

Nut, Flangelock 9/16
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

30

Poulan 136631

Bracket, Asm. Deflector

$7.49

$

Usually ships in 3-10 days

0

31

Poulan 17490508

Screw, Hex Wsh. Thdrol. 5/16-18 x 1/2
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

32

Poulan 122051X

Arm, Support Idler Mower

$2.99

$

Usually ships in 3-10 days

0

33

Poulan 131560

Deflector (AYP part number)

$

$

Not available

34

Poulan 130758

Latch Asm. Bagger
(Superseded to 532160793)

$

$

Not available

35

Poulan 532125004

Nut, Weld .327/.304 #10-24 (AYP part number)
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

36

Poulan 121980X

Rod, Hinge
(Superseded to 532121980)

$

$

Not available

37

Poulan 123713X

Spring, Torsion Deflector
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

38

Poulan 105304X

Cap, Sleeve
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

39

Poulan 19111016

Washer 11/32 x 5/8 x 16 Ga
(Superseded to 819111016)

$3.99

$

In Stock, Qty 11

0

40

Poulan 110452X

Pushnut
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 131264

V-Belt
(Superseded to 532131264)

$39.99

$

Usually ships in 3-10 days

0

42

Poulan 19171616

Washer 11/32 x 5/8 16 Ga.

$2.99

$

Usually ships in 3-10 days

0

43

Poulan 3146R

Retainer, Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

44

Poulan 140608

Keeper, L.H.
(Superseded to 532140608)

$27.99

$

Usually ships in 3-10 days

0

45

Poulan 110485X

Bearing
(Superseded to 532110485)

$13.99

$

In Stock, Qty 11

0

46

Poulan 128774

Housing Mandrel Vented
(Superseded to 532128774)

$34.99

$

Usually ships in 3-10 days

0

47

Poulan 129895

Bearing
(Superseded to 532129895)

$17.99

$

In Stock, only 2 left!

0

48

Poulan 137645

Shaft, Mandrel (AYP part number)

Note: Includes Key #47

$

$

Not available

49

Poulan 133943

Washer, Hardened (AYP part number)
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

55

Poulan 10071000

Washer, Lock #10
(Superseded to 810071000)

$4.99

$

In Stock, Qty 11

0

56

Poulan 71161010

Screw, Truss, Hd, Phil 10-24 X 5/8 (AYP part number)
(Superseded to 871081010)

$6.49

$

Usually ships in 3-10 days

0

57

Poulan 74930516

Bolt, Fin, Hex 5/16 x 18 Unc x 1

$2.49

$

Usually ships in 3-10 days

0

58

Poulan 63124

Nut, Nylon Insert 5/16-18

$

$

Not available

59

Poulan 133841

Nut, Acorn, Hex 5/16 x 18
(Superseded to 532133841)

$2.99

$

Usually ships in 3-10 days

0

60

Poulan 532140102

Cover, Mulching 36 (AYP part number)

$

$

Not available

61

Poulan 19061216

Washer #10
(Superseded to 819061216)

$4.99

$

Usually ships in 3-10 days

0

62

Poulan 153390

Washer Felt
(Superseded to 532153390)

$6.49

$

In Stock, only 3 left!

0

Poulan 130794

Mandrel Asm.
(Superseded to 532130794)

Note: Includes Key No.'s 22-23, 26, 29 and 45-48

$56.99

$

In Stock, only 4 left!

0

Poulan 156866

Deck, Mower Complete
(Superseded to 532156866)

$728.99

$

Usually ships in 3-10 days

0
