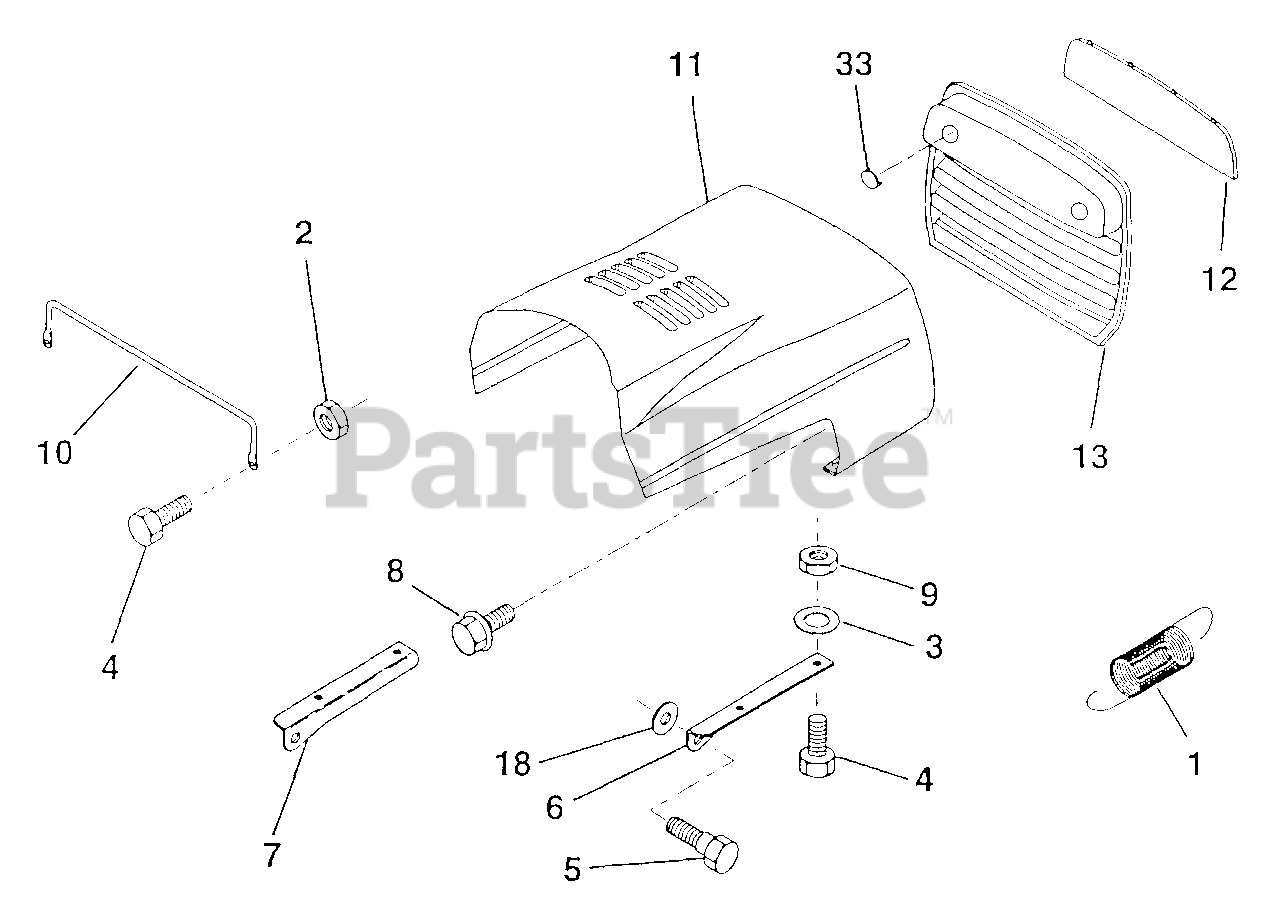

PP 11536 - Poulan Pro Lawn Tractor Hood Parts Diagram

Lawn Tractor

Hood Parts Diagram

  • Title

1

Poulan 124657X

Extension, Spring
(Superseded to 532124657)

$10.99

$

Usually ships in 3-10 days

0

2

Poulan 73640400

Nut, Hex, Keps 1/4-20
(Superseded to 873640400)

$

$

Not available

3

Poulan 19091416

Washer, 9/32 x 7/8 x 16 Ga.
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

4

Poulan 74780412

Bolt, Hex Fin 1/4-20 x 3/4 Gr. 5 (AYP part number)

$

$

Not available

5

Poulan 139888

Bolt, Shoulder
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

6

Poulan 122549X

Bracket, Hood R.H.

$

$

Not available

7

Poulan 122548X

Bracket, Hood L.H.
(Superseded to 532122548)

$2.99

$

Usually ships in 3-10 days

0

8

Poulan 17521312

Screw Sltd. Hex Hd W/PL Washer
(Superseded to 532189747)

$17.99

$

Usually ships in 3-10 days

0

9

Poulan 73800400

Nut Lock W/Insert 1/4-20 UNC
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

10

Poulan 123693X

Brace, Hood
(Superseded to 532123693)

$

$

Not available

11

Poulan 132918X500

Hood

$

$

Not available

12

Poulan 122035X

Lens Clear Bar
(Superseded to 532122035)

$14.99

$

Usually ships in 3-10 days

0

13

Poulan 127029X

Grille
(Superseded to 583672601)

$35.99

$

Usually ships in 3-10 days

0

18

Poulan 19111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

20

Poulan 131319

Plug, Socket Light (AYP part number)

$

$

Not available

33

UNKNOWN

$

$

Not available
