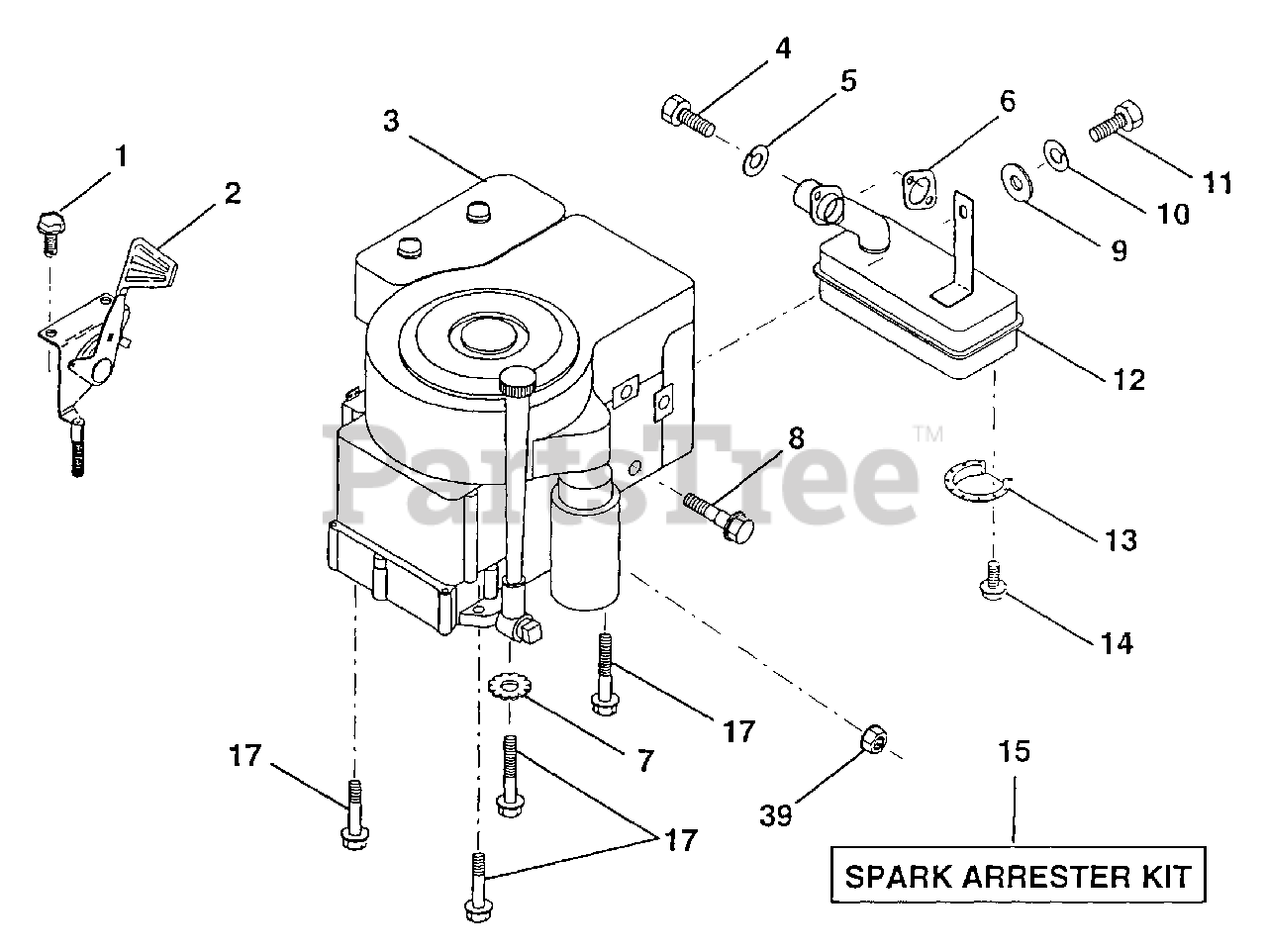

PP 11536 - Poulan Pro Lawn Tractor Engine Parts Diagram

Lawn Tractor

Engine Parts Diagram

  • Title

1

Poulan 17060408

Screw, Hex Thd. Cut 1/4-20 x 1/2
(Superseded to 817060408)

$5.99

$

In Stock, only 2 left!

0

2

Poulan 132752

Control, Throttle
(Superseded to 532132752)

$

$

Not available

3

Engine, Briggs & Stratton

Note: Model No. 289707

$

$

Not available

4

Poulan 71070512

Screw, Hex, Cap 5/16-18 x 3/4
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

5

Poulan 10040500

Washer, Lock Heavy Helical Spring 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

6

Poulan 272293

Gasket, Exhaust
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

7

Poulan 11050600

Washer, Lock Ext. Tooth 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

8

Poulan 121094X

Bolt, Shoulder 5/16
(Superseded to 532121094)

$2.99

$

Usually ships in 3-10 days

0

9

Poulan 19101216

Washer 5/16 x 3/4 x 16

$

$

Not available

10

Poulan 10040400

Washer, Lock Hvy Hlcl Spring 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

11

Bolt, Hex Fin.

Note: Order From Eng. Mfg.

$

$

Not available

12

Poulan 137437

Muffler
(Superseded to 532137437)

$242.99

$

Usually ships in 3-10 days

0

13

Poulan 101326L

Deflector, Muffler

$

$

Not available

14

Poulan 17030808

Screw, Spiderloc Hex Hd #8 x 1/2 (AYP part number)

$

$

Not available

15

Poulan 137180

Arrester, Spark
(Superseded to 532137180)

Note: Optional equipment

$182.99

$

In Stock, only 1 left!

0

17

Poulan 17490624

Screw, Hex Washer Head, Thdrol. 3/8-16 x 1-1/2
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

39

Poulan 128861

Nut, Flange 1/4-20
(Superseded to 539128861)

$31.99

$

Usually ships in 3-10 days

0
