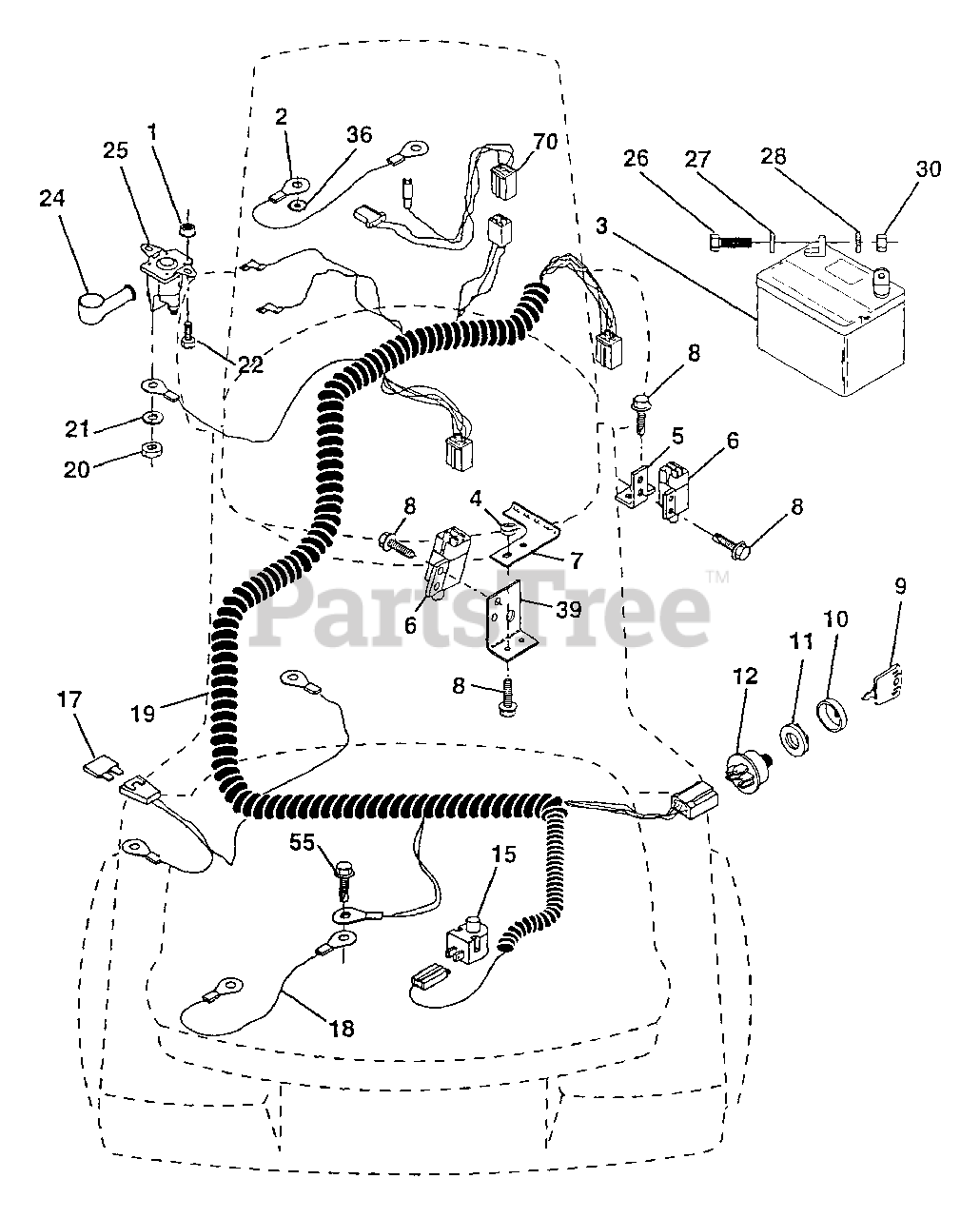

PP 11536 - Poulan Pro Lawn Tractor Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

Poulan 73640400

Nut, Hex Keps 1/4-20
(Superseded to 873640400)

$

$

Not available

2

Poulan 108423X

Assembly, Cable
(Superseded to 532108423)

$8.99

$

Usually ships in 3-10 days

0

3

Poulan 144924

Battery (AYP part number)

$

$

Not available

4

Poulan 69180

Nut Lock #10-24 UNC
(Superseded to 532069180)

$6.49

$

Usually ships in 3-10 days

0

5

Poulan 108236X

Bracket, Switch
(Superseded to 532108236)

$2.99

$

Usually ships in 3-10 days

0

6

Poulan 109553X

Switch, Interlock (4-terminal)
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

7

Poulan 146374

Keeper Actuator

$2.49

$

Usually ships in 3-10 days

0

8

Poulan 17021008

Screw, Hex Hd. Tap #10-24 x 1/2

$

$

Not available

9

Poulan 140401

Key, Steel Delta
(Superseded to 532140401)

$6.99

$

In Stock, Qty 7

0

10

Poulan 141226

Cover, Key Ignition
(Superseded to 532141226)

$5.99

$

Usually ships in 3-10 days

0

11

Poulan 140400

Nut, Ignition (AYP part number)

$

$

Not available

12

Poulan 144921

Switch, Ignition (AYP part number)
(Superseded to 532144921)

$

$

Not available

15

Poulan 121305X

Switch, Plunger
(Superseded to 532421062)

$14.99

$

In Stock, only 1 left!

0

17

Poulan 108824X

Fuse
(Superseded to 532108824)

$6.49

$

Usually ships in 3-10 days

0

18

Poulan 128353

Assembly, Cable
(Superseded to 532128353)

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 146063

Harness, Ignition

$

$

Not available

20

Poulan 73350400

Nut, Hex Jam 1/4-20

$2.49

$

Usually ships in 3-10 days

0

21

Poulan 10090400

Washer, Lock 1/4 (AYP part number)

$

$

Not available

22

Poulan 71110408

Bolt, Fin. Hex 1/4-20 UNC x 1/2 Gr. 5

$2.99

$

Usually ships in 3-10 days

0

24

Poulan 131563

Cover, Terminal
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

25

Poulan 145653

Solenoid
(Superseded to 582964701)

$4.99

$

Usually ships in 3-10 days

0

26

Poulan 74760412

Bolt, Hex Hd. 1/4-20 UNC x 3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

27

Poulan 19091016

Washer 9/32 x 5/8 x 16
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

28

Poulan 10040400

Washer, Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

30

Poulan 73220400

Nut, Fin. Hex 1/4-20 UNC
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

36

Poulan 11150400

Washer Lock Inter. Tooth 1/4
(Superseded to 811150400)

$2.99

$

Usually ships in 3-10 days

0

39

Poulan 141735

Bracket Switch Clutch
(Superseded to 532141735)

$2.99

$

Usually ships in 3-10 days

0

55

Poulan 17490508

Screw, Thdrol. 5/16-18 x 1/2
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

70

Poulan 532140413

Harness Engine (AYP part number)

$

$

Not available
