PP 11536 KA - Poulan Pro Lawn Tractor MOWER LIFT LEVER Parts Diagram

Lawn Tractor

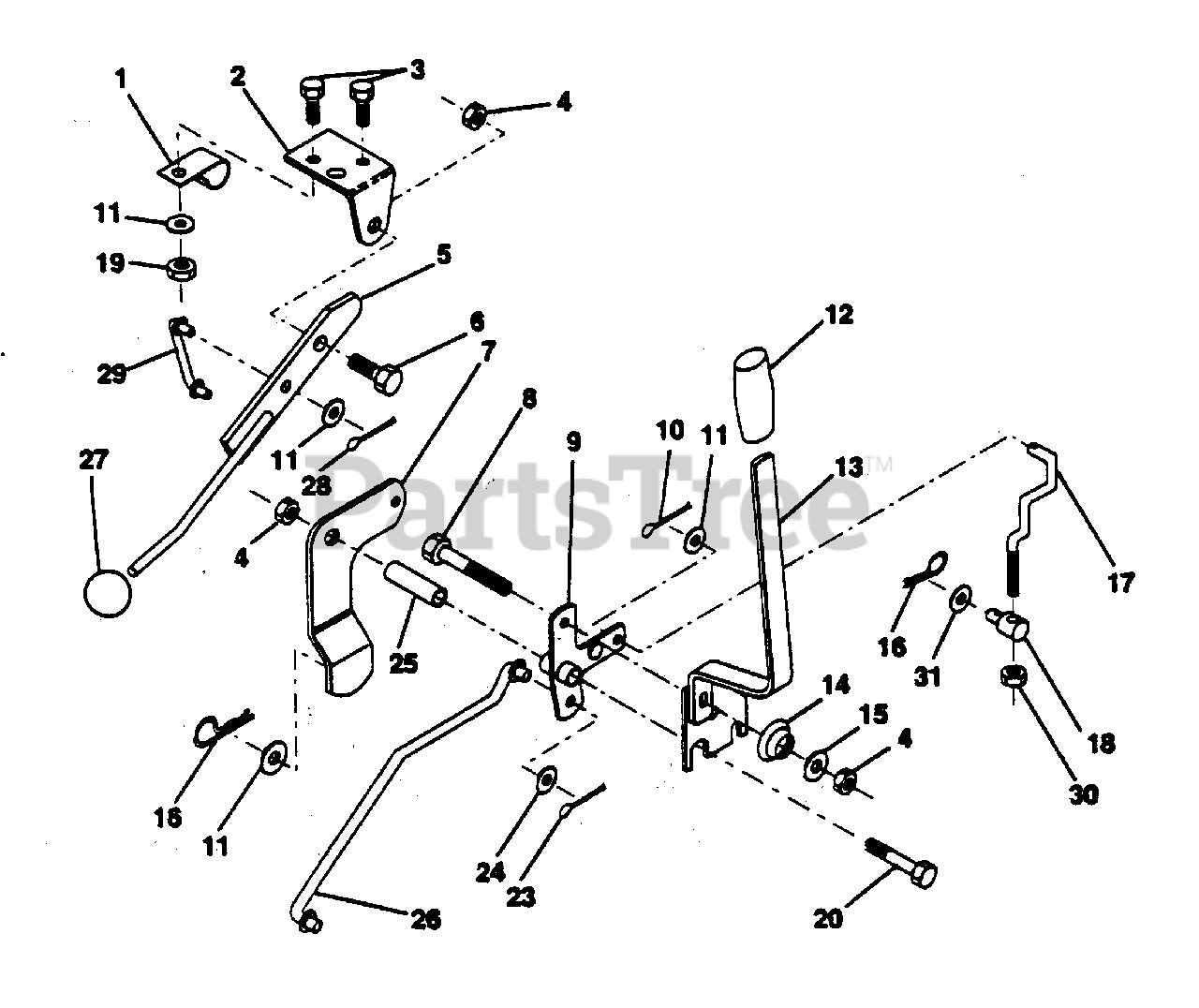

MOWER LIFT LEVER Parts Diagram

  • Title

1

Poulan 532126470

Clip, Insulated (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

2

Poulan 532122018

Bracket, Mower Clutch (AYP part number)

$

$

Not available

3

Poulan 871110408

Bolt, Fin. Hex 1/4-20 UNC x 1/2 Gr. 5 (AYP part number)
(Superseded to 71110408)

$2.99

$

Usually ships in 3-10 days

0

4

Poulan 873680600

Nut, Crownlock 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, Qty 9

0

5

Poulan 532145187

Assembly, Clutch Lever (AYP part number)

$

$

Not available

6

Poulan 532106451

Bolt, Shoulder (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

7

Poulan 532135371

Assembly, Mower Clutch Arm (AYP part number)

$

$

Not available

8

Poulan 874760636

Bolt, Hex 3/8-16 UNC x 2-1/4 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

9

Poulan 532121930

Assembly, Bellcrank Lift (AYP part number)

$11.99

$

Usually ships in 3-10 days

0

10

Poulan 876020412

Pin, Cotter 1/8 x 3/4 (AYP part number)
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 819131316

Washer 13/32 x 13/16 x 16 Ga. (AYP part number)

$4.99

$

In Stock, Qty 5

0

12

Poulan 532131861

Grip, Handle

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 532139352

Assembly, Lift Handle (AYP part number)

$

$

Not available

14

Poulan 532123496

Spring, Compression (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

15

Poulan 819131212

Washer 13/32 x 3/4 x 12 Ga. (AYP part number)
(Superseded to 19131212)

$2.99

$

Usually ships in 3-10 days

0

16

Poulan 532124961

Retainer, Spring (AYP part number)
(Superseded to 532004921)

$6.49

$

Usually ships in 3-10 days

0

17

Poulan 532127359

Link, Front Lift (AYP part number)

$24.99

$

Usually ships in 3-10 days

0

18

Poulan 532142028

Trunnion, Threaded 3/8-16 (AYP part number)

$

$

Not available

19

Poulan 873680400

Nut, Crownlock 1/4-20 (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

20

Poulan 874760644

Bolt, Fin. Hex 3/8-16 UNC x 2-3/4 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

23

Poulan 876020416

Pin, Cotter 1/8 x 1 (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 819171612

Washer 17/32 x 1 x 12 Ga. (AYP part number)
(Superseded to 734117801)

$

$

Not available

25

Poulan 532121933

Tube, Spacer (AYP part number)

$

$

Not available

26

Poulan 532141470

Rod, Mower Lift (AYP part number)

$

$

Not available

27

Poulan 532106932

Knob (AYP part number)

$7.99

$

In Stock, Qty 5

0

28

Poulan 876020312

Pin, Cotter 3/32 x 3/4 (AYP part number)
(Superseded to 876020308)

$

$

Not available

29

Poulan 532131655

Link, Mower Clutch (AYP part number)

$

$

Not available

30

Poulan 873350600

Nut Hex Jam 3/8-16 x 1.30 (AYP part number)
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

31

Poulan 819132012

Washer 13/32 x 1-1/4 x 12 Ga. (AYP part number)

$1.99

$

Usually ships in 3-10 days

0
