PP 11536 KA - Poulan Pro Lawn Tractor ENGINE Parts Diagram

Lawn Tractor

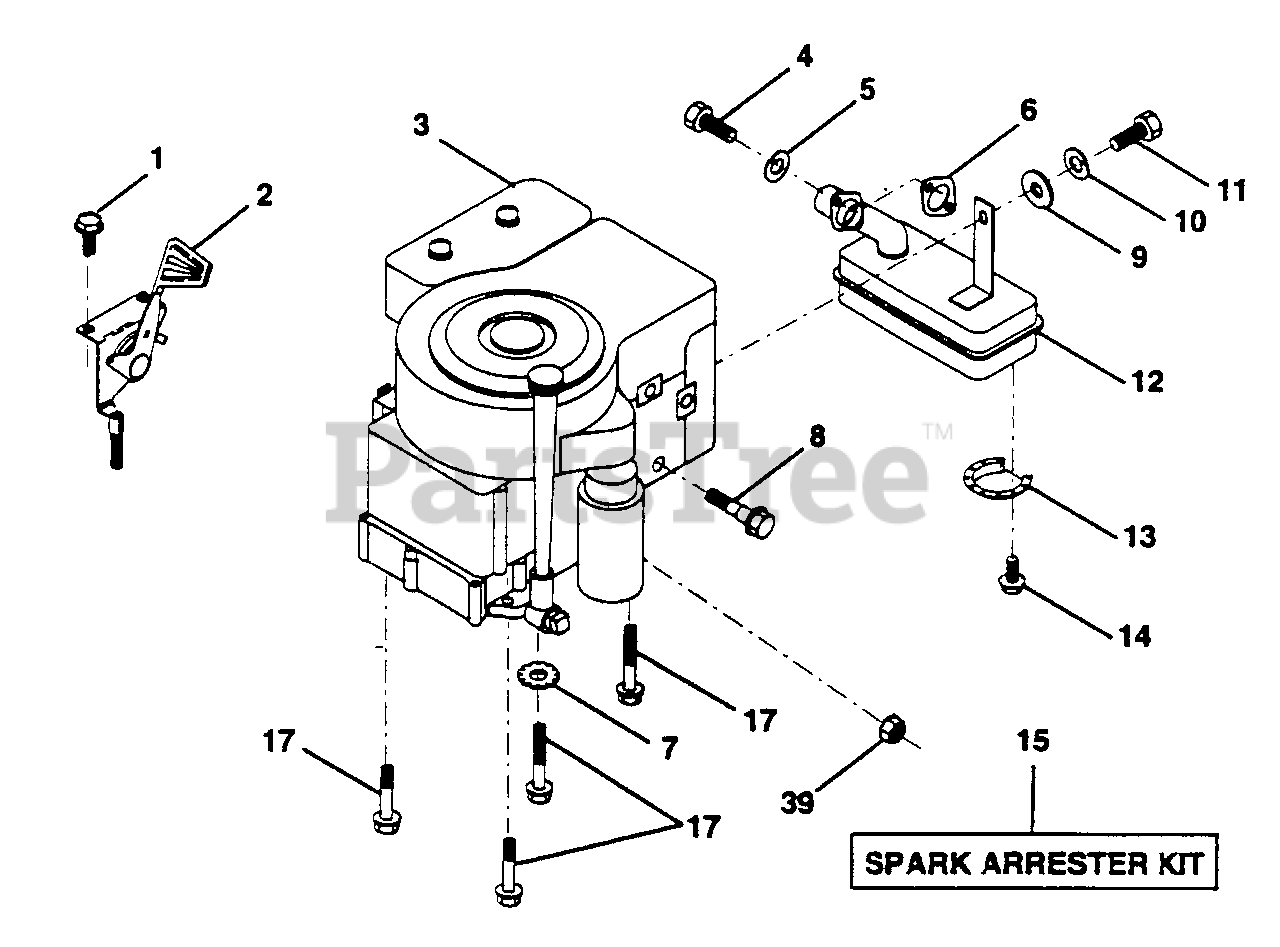

ENGINE Parts Diagram

  • Title

1

Poulan 817060408

Screw, Hex Thd. Cut 1/4-20 x 1/2 (AYP part number)

$5.99

$

In Stock, only 2 left!

0

2

Poulan 532132752

Control, Throttle (AYP part number)

$

$

Not available

3

Poulan 532146380

Engine, Briggs and Stratton Model

$

$

Not available

4

Poulan 871070512

Screw, Hex, Cap 5/16-18 x 3/4 (AYP part number)
(Superseded to 532192334)

$

$

Not available

5

Poulan 810040500

Washer, Lock Heavy Helical Spring 5/16 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

6

Poulan 532125593

Gasket, Exhaust (AYP part number)
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

7

Poulan 811050600

Washer, Lock Ext. Tooth 3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

8

Poulan 532121094

Bolt, Shoulder 5/16 (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

9

Poulan 819101216

Washer 5/16 x 3/4 x 16 (AYP part number)
(Superseded to 734115441)

$4.99

$

In Stock, only 1 left!

0

10

Poulan 810040400

Washer, Lock Hvy Hlcl Spring 1/4 (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

12

Poulan 532137437

Muffler (AYP part number)

$242.99

$

Usually ships in 3-10 days

0

13

Poulan 532101326

Deflector, Muffler (AYP part number)
(Superseded to 101326L)

$

$

Not available

14

Poulan 817030808

Screw, Spiderloc Hex Hd ??8 x 1/2 (AYP part number)
(Superseded to 817030814)

$

$

Not available

15

Poulan 532137180

Arrester, Spark (Optional equipment) (AYP part number)

$182.99

$

In Stock, only 1 left!

0

17

Poulan 817490624

Screw, Hex Washer Head. Thdrol. 3/8-16 x 1-1/2 (AYP part number)
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

39

Poulan 873510400

Nut, Keps Hex 1/4-20 (AYP part number)
(Superseded to 873640400)

$

$

Not available
