PP 11536 A - Poulan Pro Lawn Tractor Transaxle - Peerless (930-009A) Parts Diagram

Lawn Tractor

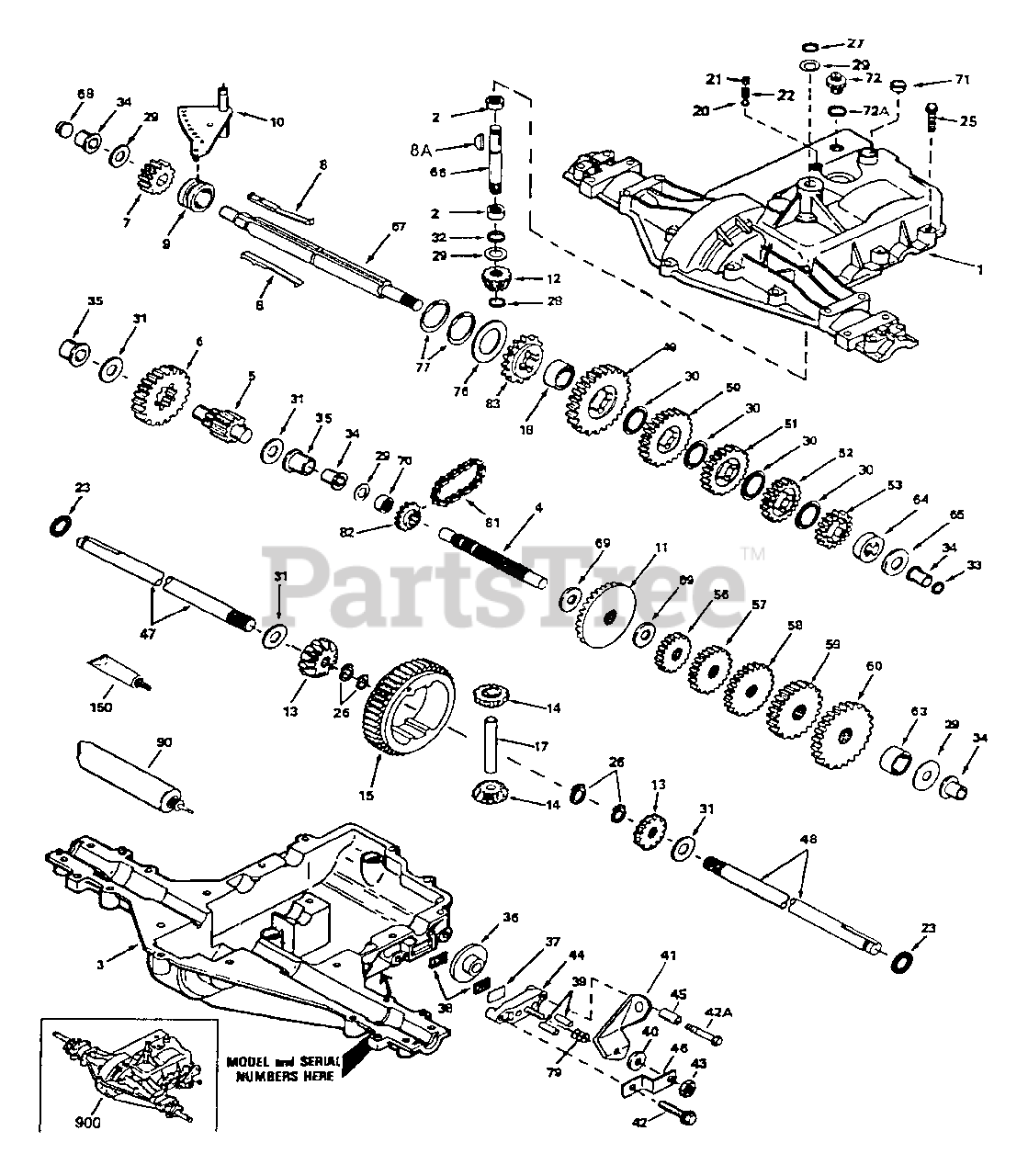

Transaxle - Peerless (930-009A) Parts Diagram

  • Title

1

Poulan 772108A

Cover, Transaxle (Peerless part number)

$

$

Not available

2

Poulan 780086

Bearing, Needle (Peerless part number)

$

$

Not available

3

Poulan 770102A

Case, Transaxle (Peerless part number)

$

$

Not available

4

Poulan 776260

Shaft, Counter (Peerless part number)

$

$

Not available

5

Poulan 776219B

Shaft and Pinion Assembly, Output (Peerless part number)

$

$

Not available

6

Poulan 778139

Gear, Output (Peerless part number)

$

$

Not available

7

Poulan 778136

Gear, Spur, 15 Teeth (Peerless part number)

$

$

Not available

8

Poulan 792136A

Key, Shift (Peerless part number)

$

$

Not available

8A

Poulan 792047

Key, Woodruff (Peerless part number)

$

$

Not available

9

Poulan 784352

Collar, Shifter (Peerless part number)

$

$

Not available

10

Poulan 784355

Rod and Fork Assembly, Shift (Peerless part number)

$

$

Not available

11

Poulan 778229

Gear, Bevel, 42 Teeth (Peerless part number)

$

$

Not available

12

Poulan 778113A

Bevel Pinion, Input (Peerless part number)

$

$

Not available

13

Poulan 778221

Gear, Bevel (Peerless part number)

$

$

Not available

14

Poulan 778068

Gear, Bevel Pinion (Peerless part number)

$

$

Not available

15

Poulan 778260

Gear, Ring (Peerless part number)

$

$

Not available

17

Poulan 786139

Pin, Drive (Peerless part number)

$

$

Not available

18

Poulan 786102

Spacer, Neutral (Peerless part number)

$

$

Not available

20

Poulan 792077

Ball, Steel 5/16" diameter (Peerless part number)

$

$

Not available

21

Poulan 792078

Set Screw 3/8-16 x 3/8 (Peerless part number)

$

$

Not available

22

Poulan 792079

Spring (Peerless part number)

$

$

Not available

23

Poulan 788061

Ring, Seal (Peerless part number)

$

$

Not available

25

Poulan 792073

Screw, Flanged Hex Head, Thread Forming 1/4-20 x 1-1/4 (Peerless part number)

$

$

Not available

26

Poulan 792125

Ring, Retainer (Peerless part number)

Note: 4 Required

$

$

Not available

27

Poulan 792035

Ring, Retainer (Peerless part number)

$

$

Not available

28

Poulan 788040

Ring, Retainer (Peerless part number)

$

$

Not available

29

Poulan 780072

Washer, Thrust (Peerless part number)

$

$

Not available

30

Poulan 780108

Washer, Thrust (Peerless part number)

$

$

Not available

31

Poulan 780001

Washer (Peerless part number)

$

$

Not available

32

Poulan 792001

"O" Ring (Peerless part number)

$

$

Not available

33

Poulan 788095

Seal, Square Cut (Peerless part number)

$

$

Not available

34

Poulan 780105A

Bushing, Flanged (Peerless part number)

$

$

Not available

35

Poulan 780118A

Bushing, Flanged (Peerless part number)

$

$

Not available

36

Poulan 790003

Disk, Brake (Peerless part number)

$

$

Not available

37

Poulan 790007

Plate, Brake Pad (Peerless part number)

$

$

Not available

38

Poulan 799021

Pad, Brake (Peerless part number) (AYP part number)

$

$

Not available

39

Poulan 786026

Pin, Dowel (Peerless part number)

$

$

Not available

40

Poulan 792076A

Washer, Flat (Peerless part number)

$

$

Not available

41

Poulan 790079

Lever, Brake (Peerless part number)

$

$

Not available

42

Poulan 792073

Screw, Flanged Hex Head, Thread Forming 1/4-20 x 1-1/4 (Peerless part number)

$

$

Not available

42A

Poulan 792085A

Screw 1/4-20 x 2-1/4 (Peerless part number)

$

$

Not available

43

Poulan 792075

Locknut 5/16-24 (Peerless part number)

$

$

Not available

44

Poulan 790025

Holder, Brake Pad (Peerless part number)

$

$

Not available

45

Poulan 786066

Spacer (Peerless part number)

$

$

Not available

46

Poulan 786086

Bracket, Brake Lever (Peerless part number)

$

$

Not available

47

Poulan 774690

Axle 11-5/16" long (Peerless part number)

$

$

Not available

48

Poulan 774691

Axle 16-1/2" long (Peerless part number)

$

$

Not available

49

Poulan 778191

Gear, Spur, 37 Teeth (1st) (Peerless part number)

$

$

Not available

50

Poulan 778124A

Gear, Spur, 30 Teeth (2nd ) (Peerless part number)

$

$

Not available

51

Poulan 778123A

Gear, Spur, 25 Teeth (3rd) (Peerless part number)

$

$

Not available

52

Poulan 778122A

Gear, Spur, 22 Teeth (4th) (Peerless part number)

$

$

Not available

53

Poulan 778273

Gear, Spur, 19 Teeth, Steel (5th) (Peerless part number)

$

$

Not available

56

Poulan 778230

Gear, Spur, 12 Teeth (1st) (Peerless part number)

$

$

Not available

57

Poulan 778126A

Gear, Spur, 20 Teeth (2nd) (Peerless part number)

$

$

Not available

58

Poulan 778127A

Gear, Spur, 25 Teeth (3rd) (Peerless part number)

$

$

Not available

59

Poulan 778128A

Gear, Spur, 28 Teeth (4th) (Peerless part number)

$

$

Not available

60

Poulan 778163

Gear, Spur, 31 Teeth (5th) (Peerless part number)

$

$

Not available

63

Poulan 786071

Spacer (Peerless part number)

$

$

Not available

64

Poulan 786072

Spacer (Peerless part number)

$

$

Not available

65

Poulan 780109

Washer, Thrust (Peerless part number)

$

$

Not available

66

Poulan 776135

Shaft, Input (Peerless part number)

$

$

Not available

67

Poulan 776315A

Shaft, Brake, 4 Keyed (Peerless part number)

$

$

Not available

68

Poulan 786116A

Plug (Peerless part number)

$

$

Not available

69

Poulan 780051

Washer, Thrust (Peerless part number)

$

$

Not available

70

Poulan 786118

Spacer (Peerless part number)

$

$

Not available

71

Poulan 788069

Seal, Square Cut (Peerless part number)

$

$

Not available

72

Poulan 792165

Plug, Threaded 9/16-18 (Peerless part number)

$

$

Not available

72A

Poulan 788091

"O" Ring (Peerless part number)

$

$

Not available

76

Poulan 780090

Washer, Thrust (Peerless part number)

$

$

Not available

77

Poulan 788078A

Ring, Retaining, Inverted (Peerless part number)

$

$

Not available

79

Poulan 792144

Spring, Brake (Peerless part number)

$

$

Not available

81

Poulan 786081

Chain, Roller (Peerless part number)

Note: Number 41 Chain, 24 Links

$

$

Not available

82

Poulan 786082

Sprocket, 9 Teeth (Reverse) (Peerless part number)

$

$

Not available

83

Poulan 786123

Sprocket, 18 Teeth (Reverse) (Peerless part number)

$

$

Not available

90

Poulan 788067B

Grease, Bentonite, 32 Ounce Bottle (Peerless part number)

$

$

Not available

150

Poulan 510334

Gasket Eliminator

Note: Loctite #515

$

$

Not available

900

Poulan 794528A

Replacement Transaxle (Peerless part number)

$

$

Not available
