PP 11536 A - Poulan Pro Lawn Tractor Transaxle Parts Diagram

Lawn Tractor

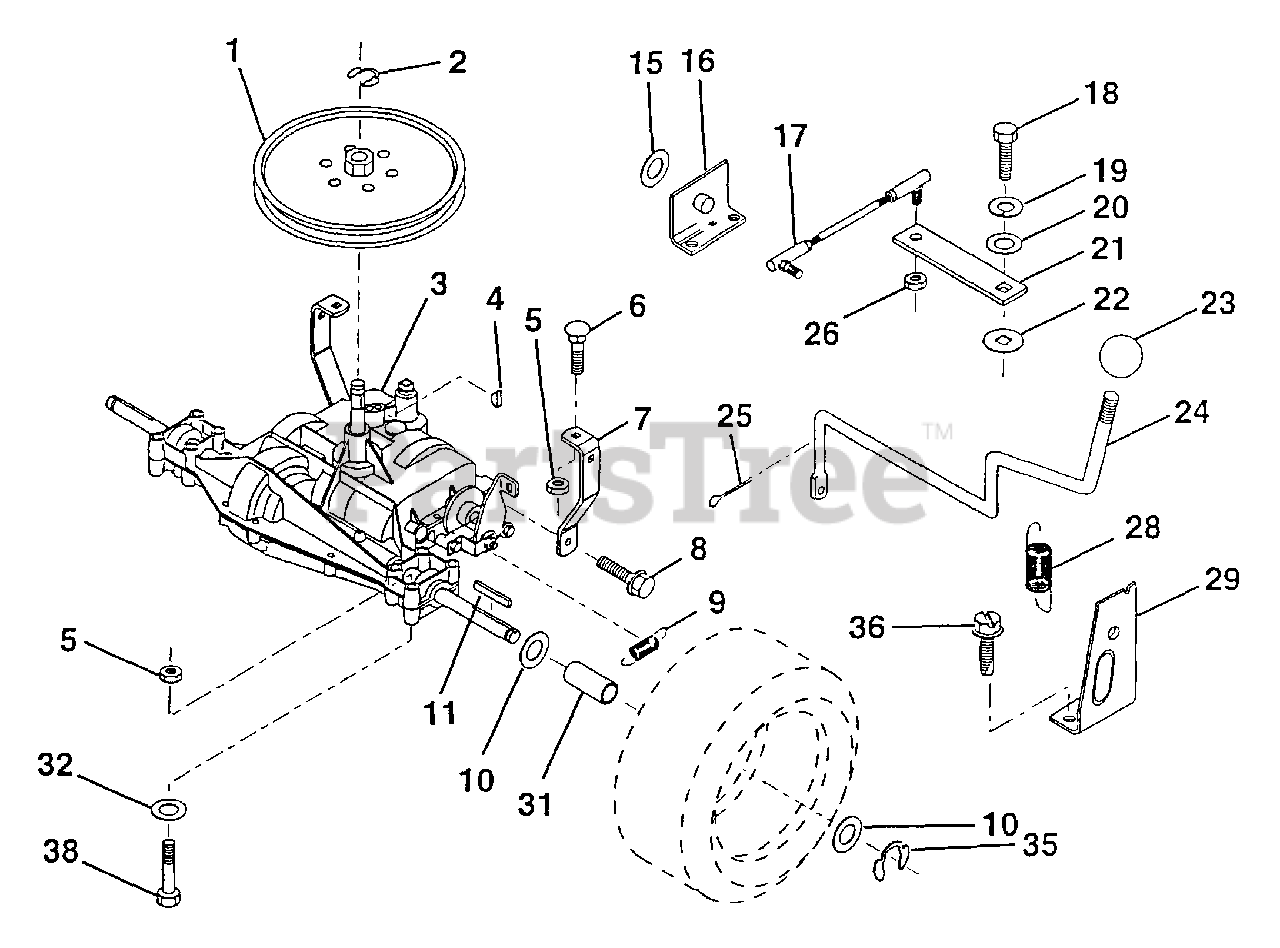

Transaxle Parts Diagram

  • Title

1

Poulan 123385X

Pulley
(Superseded to 532123385)

$45.99

$

Usually ships in 3-10 days

0

2

Poulan 12000028

Ring, Retainer (AYP part number)

$0.99

$

Usually ships in 3-10 days

0

3

Transaxle

Note: See "Peerless Transaxle" (Peerless P390-009A) illustration and parts list.

$

$

Not available

4

Poulan 2228M

Key, Woodruff #9 (AYP part number)

$

$

Not available

5

Poulan 73680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

6

Poulan 72140506

Bolt, Carriage 5/16-18 UNC x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

7

Poulan 123378X

Strap, Torque

$2.49

$

Usually ships in 3-10 days

0

8

Poulan 17490512

Screw 5/16-18 x 3/4
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

9

Poulan 146682

Spring, Brake
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

10

Poulan 121749X

Washer 25/32 x 1-1/4 x 16 Ga.
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

11

Poulan 123583X

Key, Square
(Superseded to 532123583)

$4.99

$

In Stock, only 3 left!

0

15

Poulan 19171616

Washer 17/32 x 1 x 16 Ga.

$2.99

$

Usually ships in 3-10 days

0

16

Poulan 532124660

Support Handle Shift LH (AYP part number)
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

17

Poulan 126293X

Link, Shift
(Superseded to 583671201)

$28.99

$

Usually ships in 3-10 days

0

18

Poulan 74550412

Bolt 1/4-28 UNF Gr. 8 W/Patch
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 10040400

Washer, Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

20

Poulan 19091210

Washer 9/32 x 3/4 x 10 Ga.
(Superseded to 819091210)

$4.99

$

Usually ships in 3-10 days

0

21

Poulan 126292X

Arm, Shift

$2.99

$

Usually ships in 3-10 days

0

22

Poulan 105701X

Washer, Shift Plate
(Superseded to 532105701)

$6.49

$

Usually ships in 3-10 days

0

23

Poulan 106933X

Knob, Duckhead
(Superseded to 532106933)

$7.99

$

In Stock, only 1 left!

0

24

Poulan 128215

Rod Shift

$17.99

$

Usually ships in 3-10 days

0

25

Poulan 76020416

Pin, Cotter 1/8 x 1

$2.99

$

Usually ships in 3-10 days

0

26

Poulan 73810500

Locknut 5/16-24 UNF

$2.99

$

Usually ships in 3-10 days

0

28

Poulan 128085

Extension, Spring

$3.99

$

Usually ships in 3-10 days

0

29

Poulan 128084

Support Handle Shift RH

$2.49

$

Usually ships in 3-10 days

0

32

Poulan 19111116

Washer 11/32 x 11/16 x 16
(Superseded to 596204101)

$3.99

$

In Stock, Qty 18

0

31

Poulan 137057

Spacer Axle
(Superseded to 532137057)

$7.49

$

In Stock, only 3 left!

0

35

Poulan 12000001

E-Ring
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

36

Poulan 17720408

Screw, Thdrol 5/16-18 x 1/2
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

38

Poulan 74490544

Bolt, Hex Hd 5/16-18 x 2-3/4
(Superseded to 874490544)

$4.99

$

Usually ships in 3-10 days

0
