PP 11536 A - Poulan Pro Lawn Tractor Sector Gear/Axle Support Parts Diagram

Lawn Tractor

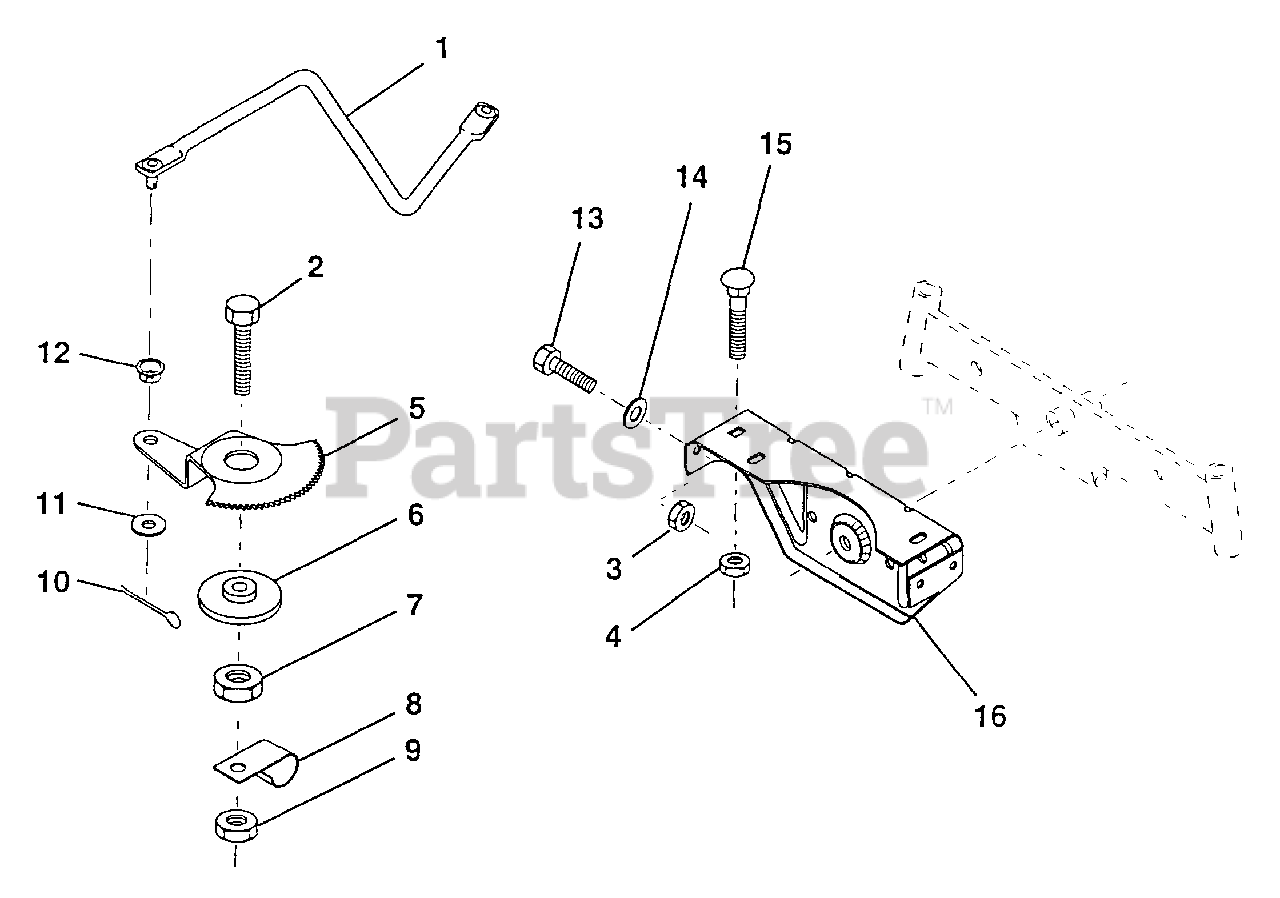

Sector Gear/Axle Support Parts Diagram

  • Title

1

Poulan 132566

Link, Drag
(Superseded to 532132566)

$46.99

$

In Stock, only 1 left!

0

2

Poulan 74780828

Bolt, Fin Hex 1/2-13 x 1-3/4
(Superseded to 874780828)

$4.99

$

Usually ships in 3-10 days

0

3

Poulan 73680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

4

Poulan 73680600

Nut, Crownlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 121926X

Gear, Sector
(Superseded to 532121926)

$

$

Not available

6

Poulan 121927X

Bushing
(Superseded to 532121927)

$

$

Not available

7

Poulan 73030800

Nut, Heavy Hex Top Lock 1/2-13 UNC (AYP part number)
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

8

Poulan 126472X

Clip, Insulated

$

$

Not available

9

Poulan 73680800

Nut, Crownlock 3/8-16
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

10

Poulan 76020412

Pin, Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

11

Poulan 19131316

Washer, 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

12

Poulan 126847X

Bushing
(Superseded to 532126847)

$5.99

$

In Stock, only 2 left!

0

13

Poulan 74760512

Bolt, Hex Hd. 5/16-18 UNC x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

14

Poulan 19111416

Washer 11/32 x 7/8 x 16 Ga.

$2.49

$

Usually ships in 3-10 days

0

15

Poulan 72110606

Bolt, Carriage 3/8-16 UNC x 3/4
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

16

Poulan 137096

Support, Front Axle

$

$

Not available
