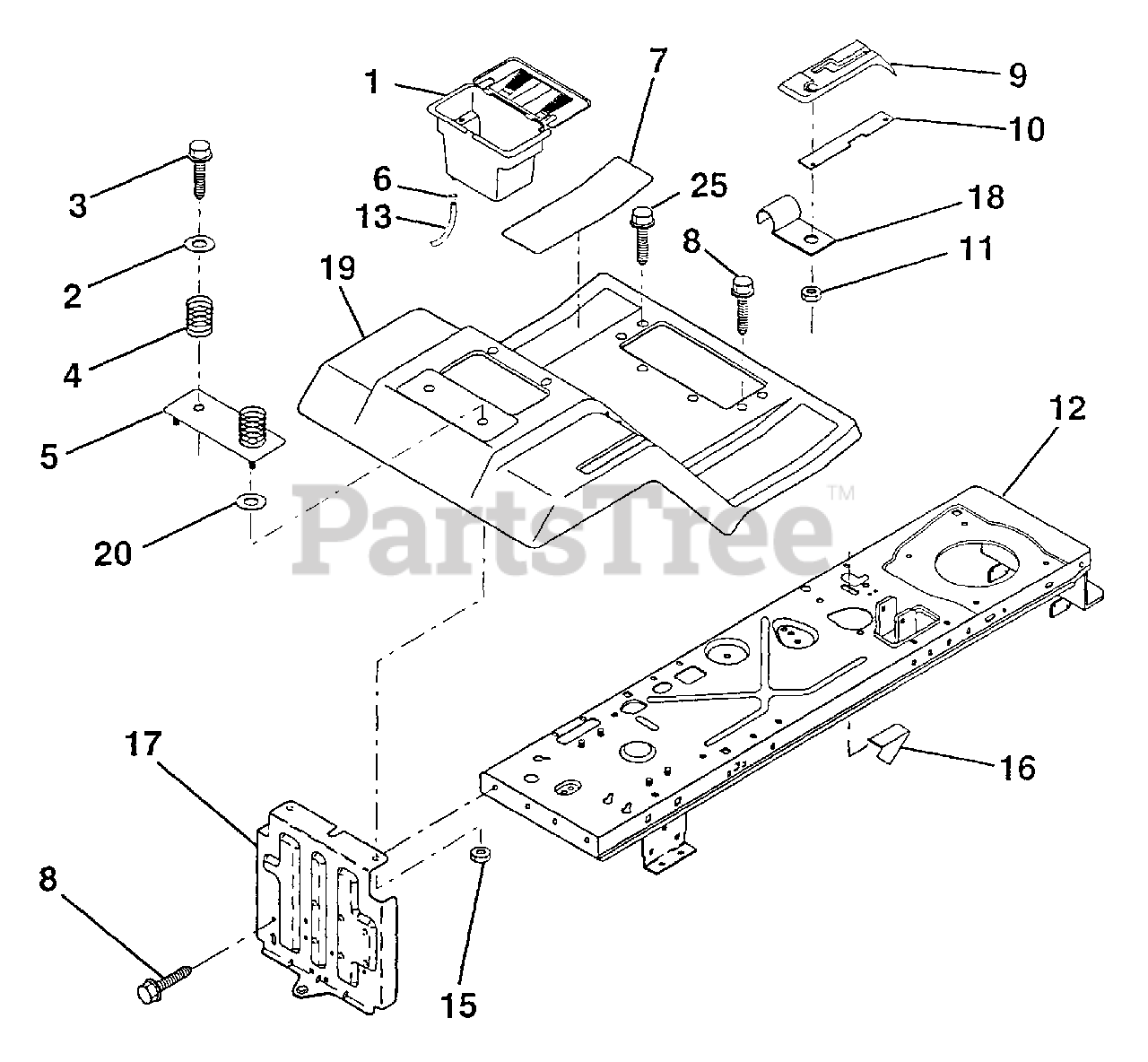

PP 11536 A - Poulan Pro Lawn Tractor Fender/Chassis Parts Diagram

Lawn Tractor

Fender/Chassis Parts Diagram

  • Title

1

Poulan 156417

Case, Battery
(Superseded to 532404349)

$

$

Not available

2

Poulan 19132012

Washer 13/32 x 1-1/4 x 12 Ga.
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

3

Poulan 17490612

Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

4

Poulan 124181X

Spring, Compression, Seat
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

5

Poulan 127115X421

Plate, Asm. Battery

$

$

Not available

6

Poulan 109596X

Clamp, Hose
(Superseded to 532109596)

$4.99

$

Usually ships in 3-10 days

0

7

Poulan 124144X

Pad, Footrest
(Superseded to 134214)

$

$

Not available

8

Poulan 17490512

Screw, Hex Wsh Thdrol. 5/16-18 x 3/4
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

9

Poulan 126997X

Console, Shift Control

$

$

Not available

10

Poulan 139783

Bar, Shift Lock

$2.99

$

Usually ships in 3-10 days

0

11

Poulan 124346X

Nut, Self-Thrd., Wsh. Head 3/16
(Superseded to 532124346)

$7.99

$

In Stock, only 1 left!

0

12

Poulan 145190

Chassis Asm. Weldment

$

$

Not available

13

Poulan 109238X

Tube, Battery Drain

$

$

Not available

15

Poulan 73640400

Nut, Keps Hex 1/4-20 UNC
(Superseded to 873640400)

$

$

Not available

16

Poulan 141736

Switch Actuator (AYP part number)

$

$

Not available

17

Poulan 140782

Drawbar

$

$

Not available

18

Poulan 126470X

Clip, Insulated
(Superseded to 532126470)

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 140955X421

Fender/Footrest (AYP part number)

$

$

Not available

20

Poulan 19091413

Washer 9/32 x 7/8 x 13 Ga.

$2.49

$

Usually ships in 3-10 days

0

25

Poulan 17190516

Screw Hex 5/16-18 x 1

$

$

Not available
