PP 11536 A - Poulan Pro Lawn Tractor Dash Parts Diagram

Lawn Tractor

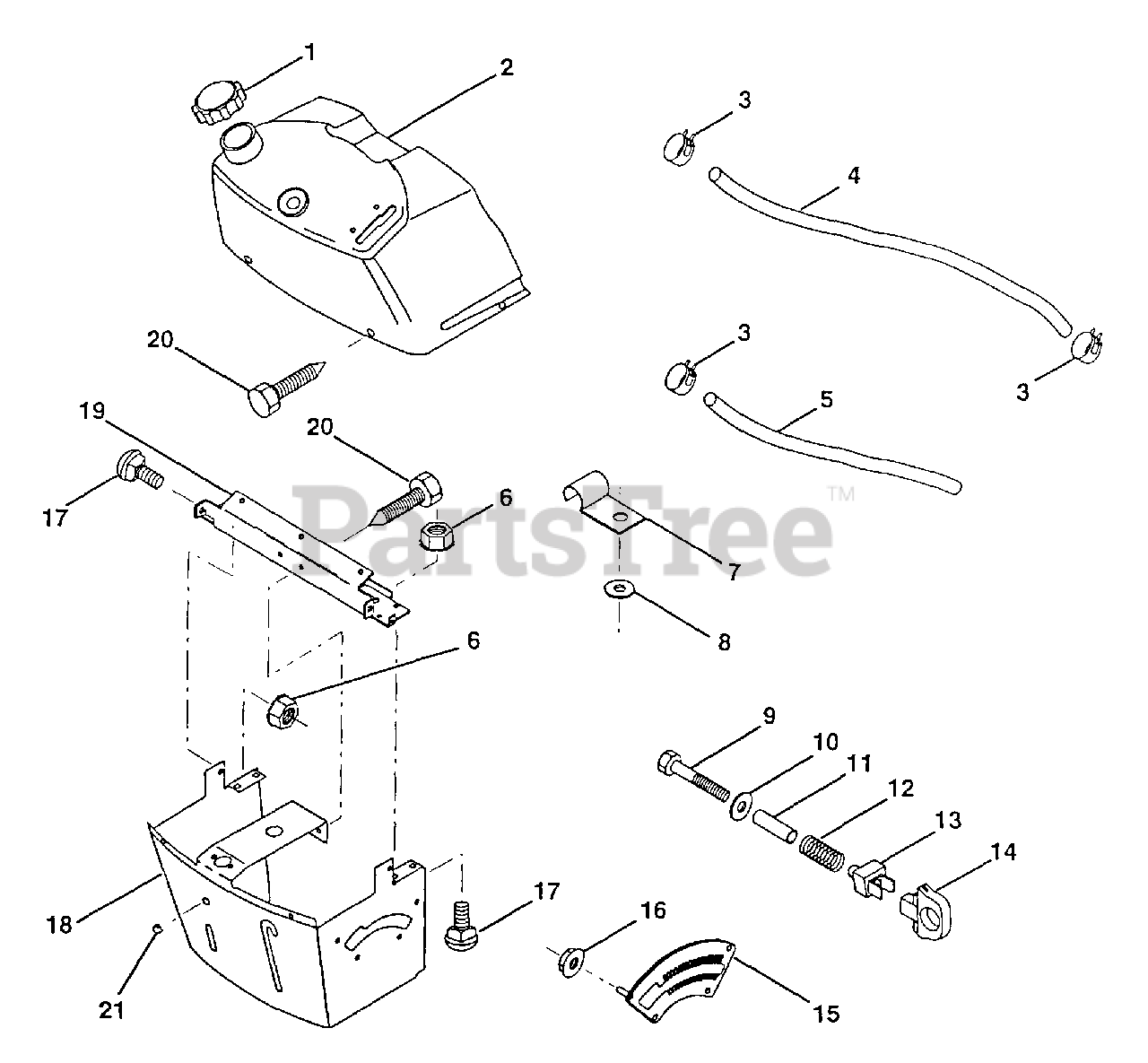

Dash Parts Diagram

  • Title
1

Poulan 141523

Cap, Fuel
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

2

Poulan 138393

Assembly, Dash & Fuel Tank
(Superseded to 584445501)

$

$

Not available

3

Poulan 123487X

Clamp, Hose
(Superseded to 532123487)

$7.49

$

In Stock, only 1 left!

0

4

Poulan 8544R

Line, Fuel (AYP part number)

$

$

Not available

5

Poulan 8548R

Line, Fuel
(Superseded to 532008548)

$7.99

$

In Stock, only 1 left!

0

6

Poulan 73640400

Nut, Hex, Keps 1/4-20
(Superseded to 873640400)

$

$

Not available

7

Poulan 2751R

Clip, Fuel Line

$

$

Not available

8

Poulan 19091216

Washer 9/32 x 3/4 x 16 Ga.
(Superseded to 819091216)

$4.99

$

In Stock, only 2 left!

0

9

Poulan 74760428

Bolt, Hex, Fin 1/4-20 x 1-3/4 (AYP part number)
(Superseded to 874760432)

$9.49

$

Usually ships in 3-10 days

0

10

Poulan 19091413

Washer 11/32 x 11/16 x 16 Ga.

$2.49

$

Usually ships in 3-10 days

0

11

Poulan 121249X

Spacer, Split
(Superseded to 532121249)

$6.49

$

In Stock, only 2 left!

0

12

Poulan 3720R

Spring
(Superseded to 532003720)

$6.49

$

Usually ships in 3-10 days

0

13

Poulan 126450X

Clip, Height Adjustment
(Superseded to 532126450)

$4.99

$

Usually ships in 3-10 days

0

14

Poulan 126115X

Knob, Height Stop

$

$

Not available

15

Poulan 122023X

Adjustment, Quadrant Height
(Superseded to 532122023)

$9.49

$

Usually ships in 3-10 days

0

16

Poulan 124346X

Nut, Self-Threading 3/16-18
(Superseded to 532124346)

$7.99

$

In Stock, only 1 left!

0

17

Poulan 72110404

Bolt, Carriage 1/4-20 x 1/2 Gr. 5
(Superseded to 872110404)

$9.49

$

Usually ships in 3-10 days

0

18

Poulan 130745

Support Assembly, Dash

$

$

Not available

19

Poulan 134744

Brace, Cross

$

$

Not available

20

Poulan 17060408

Screw, Self-Tapping 1/4-20 x 1/2
(Superseded to 817060408)

$5.99

$

In Stock, only 2 left!

0

21

Poulan 134014

Plug Dome Black
(Superseded to 532134014)

$

$

Not available
