PP 11536 A - Poulan Pro Lawn Tractor Brake/Rear Mower Lift Assembly Parts Diagram

Lawn Tractor

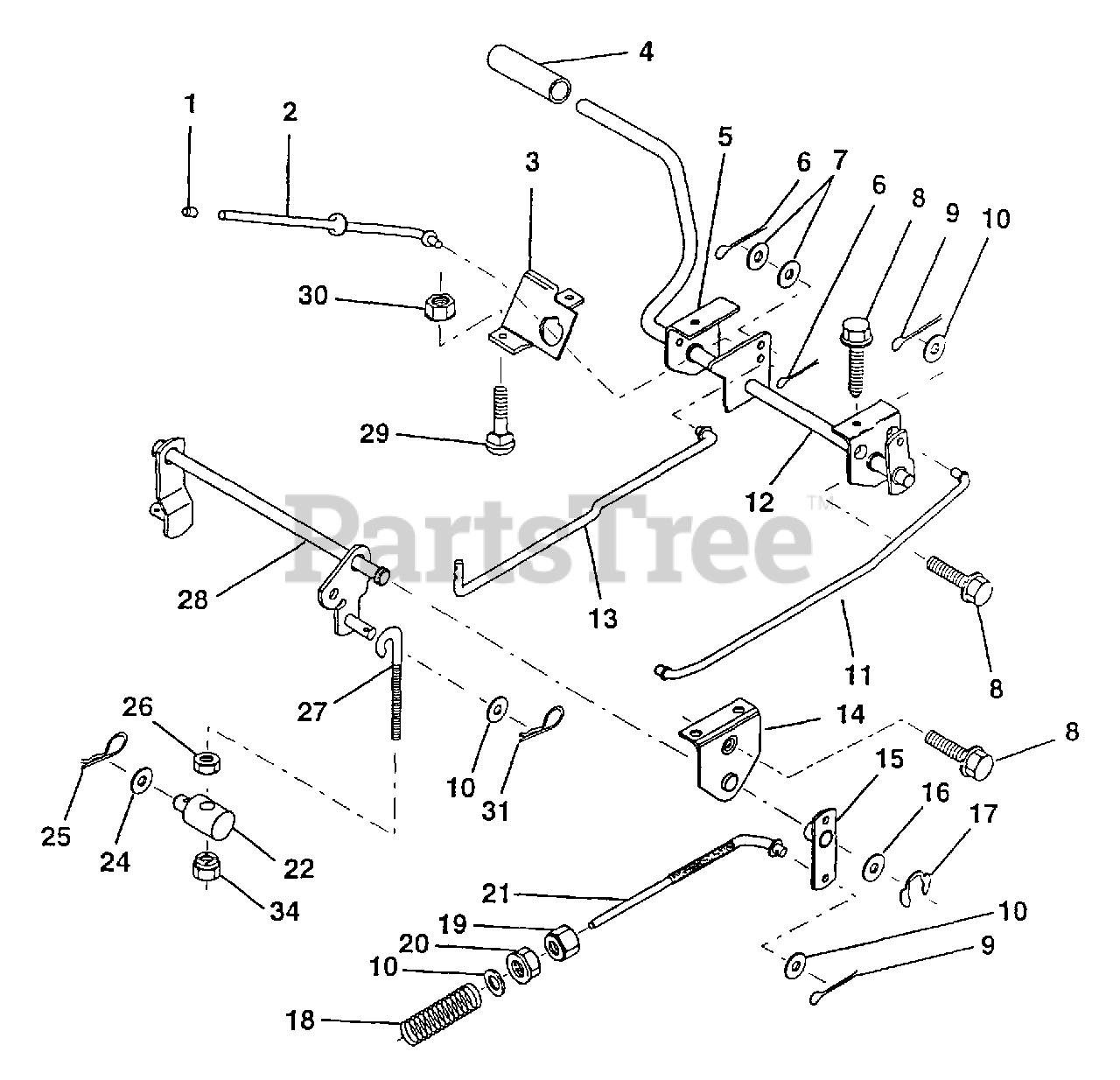

Brake/Rear Mower Lift Assembly Parts Diagram

  • Title
1

Poulan 71673

Cap, Plunger
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

2

Poulan 123436X

Rod, Parking Brake
(Superseded to 532123436)

$

$

Not available

3

Poulan 123437X

Bracket, Parking Brake

$

$

Not available

4

Poulan 8883R

Cover, Pedal
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

5

Poulan 122504X

Bracket, Clutch/Brake Pedal, L.H.

$

$

Not available

6

Poulan 76020312

Pin, Cotter 3/32 x 3/4
(Superseded to 539003145)

$133.99

$

Usually ships in 3-10 days

0

7

Poulan 19131016

Washer 13/32 x 5/8 x 16 Ga.
(Superseded to 819131016)

$6.49

$

In Stock, Qty 5

0

8

Poulan 17490508

Screw, Hex, Thd. Roll. 5/16-18 x 1/2
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

9

Poulan 76020412

Pin, Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

10

Poulan 19131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

11

Poulan 123543X

Rod, Brake Front

$

$

Not available

12

Poulan 139933

Assembly, Clutch/Brake Pedal

$

$

Not available

13

Poulan 123394X

Rod, Clutch

$

$

Not available

14

Poulan 121978X

Bracket, Lift, Shaft

$

$

Not available

15

Poulan 133332

Assembly, Brake, Pivot, Arm

$

$

Not available

16

Poulan 19251816

Washer 25/32 x 1-1/8 x 16 Ga.
(Superseded to 819251816)

$6.49

$

Usually ships in 3-10 days

0

17

Poulan 12000034

Ring, Klip
(Superseded to 812000034)

$

$

Not available

18

Poulan 151332

Spring, Brake Rod
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

19

Poulan 73350600

Nut, Hex, Jam 3/8-16 UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

20

Poulan 73800600

Nut, Lock, Hex W/Ins. 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 131460

Rod, Rear Brake
(Superseded to 131461)

$

$

Not available

22

Poulan 144585

Trunnion, Lift
(Superseded to 532144585)

$

$

Not available

24

Poulan 19132012

Washer 13/32 x 1-1/4 x 12 Ga.
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

25

Poulan 4921H

Spring, Retainer
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

26

Poulan 73930600

Nut, Centerlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 127369

Link, Threaded
(Superseded to 532127369)

$

$

Not available

28

Poulan 140776

Assembly, Rear Mower Lift

$

$

Not available

29

Poulan 72110506

Bolt, Carriage 5/16-18 UNC x 3/4

$7.49

$

In Stock, Qty 20+

0

30

Poulan 73510500

Nut, Keps 5/16-16 UNC

$2.99

$

Usually ships in 3-10 days

0

31

Poulan 3146R

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

34

Poulan 73680600

Nut, Crownlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0
