PP 1136J - Poulan Lawn Tractor (1994) SEAT Parts Diagram

Lawn Tractor

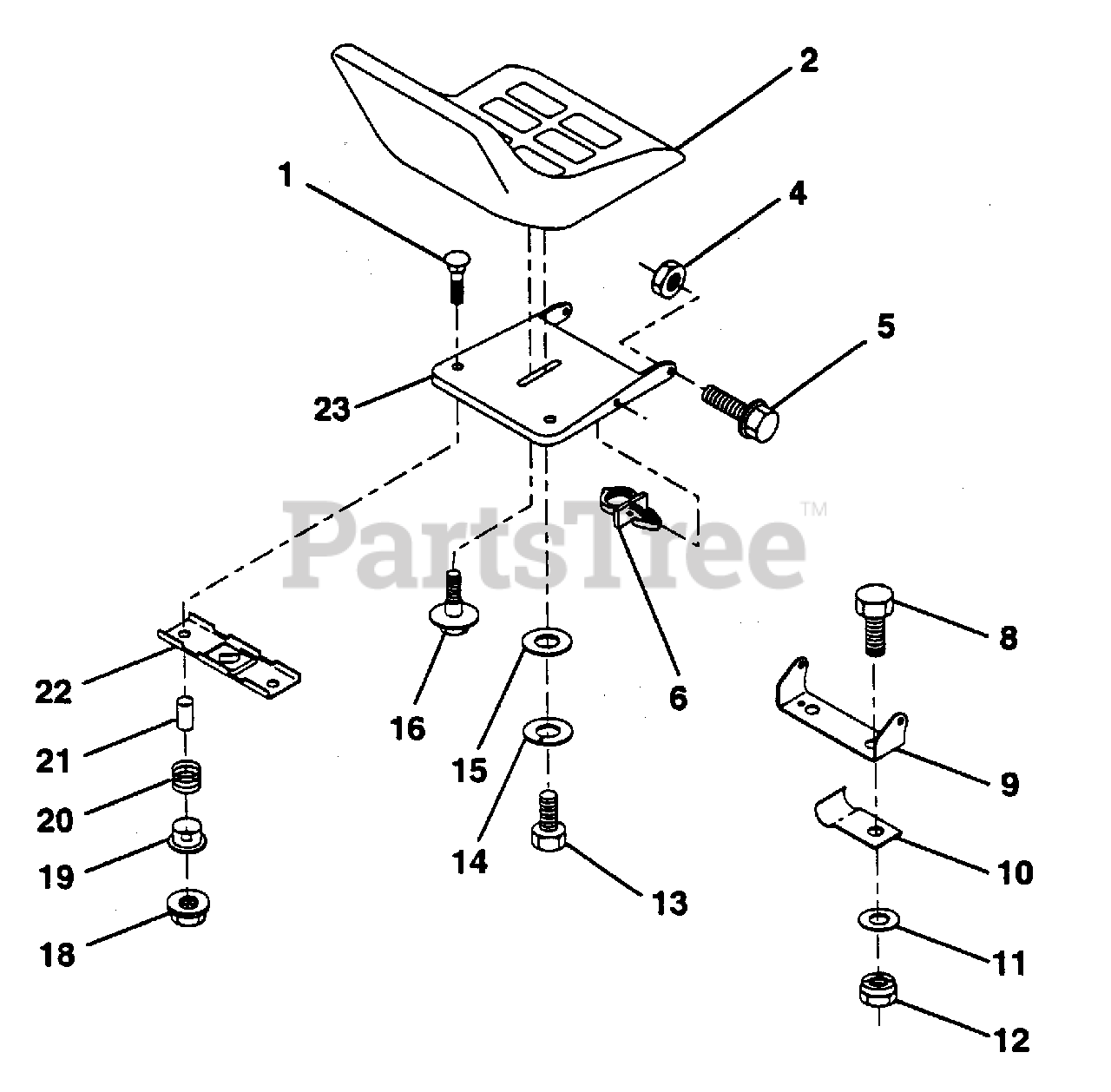

SEAT Parts Diagram

  • Title
1

Electrolux/AYP 872050411

Bolt, Carriage 1/4-20 x 1-3/8

$

$

Not available

2

Electrolux/AYP 532127427

Seat
(Superseded to 532140119)

$206.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 873800500

Locknut, Hex w/Ins 5/16-18
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

5

Electrolux/AYP 532139888

Bolt, Shoulder 5/16-18 UNC

$6.49

$

In Stock, only 1 left!

0

6

Electrolux/AYP 532140407

Clip, Insulated

$3.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 874760616

Bolt, Fin Hex 3/8-16 UNC x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532140551

Bracket, Pivot Seat

$6.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532126471

Clip, Insulated

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 819133210

Washer 12/32 x 2 x 10 Ga.
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

12

Electrolux/AYP 873800600

Nut, Lock Hex w/Wsh 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 874780814

Bolt Hex 1/2-13 x 7/8
(Superseded to 871110814)

$10.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 810040800

Washer Lock Hvy. Hlicl Spring 1/2

$6.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 819171912

Washer, 17/32 x 1-3/16 x 12 Ga.

$7.49

$

In Stock, only 1 left!

0

16

Electrolux/AYP 532127018

Bolt, Shoulder

$7.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532123976

Nut, Hex Large Flange Lock
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

19

Electrolux/AYP 532121248

Bushing, Snap

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 532121250

Spring, Compression

$7.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 532134300

Spacer, Split 28 Id. x .88 Lg.

$7.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 532121246

Bracket, Switch, Mounting
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532140552

Pan, Seat
(Superseded to 532155925)

$21.99

$

Usually ships in 3-10 days

0
