PP 1136J A - Poulan Lawn Tractor (1994) FRONT AXLE Parts Diagram

Lawn Tractor

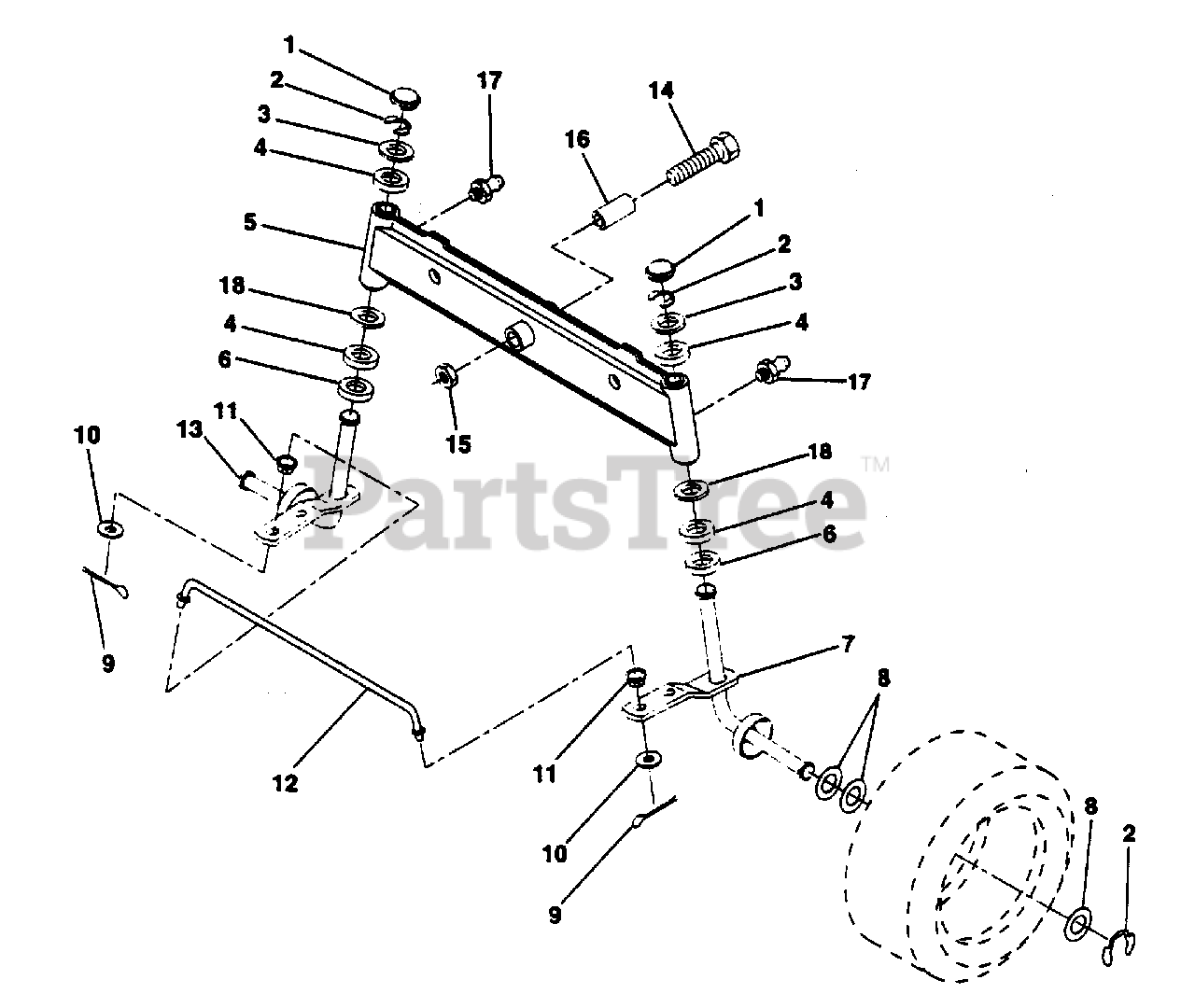

FRONT AXLE Parts Diagram

  • Title

1

Electrolux/AYP 532121232

Cap, Spindle

$4.99

$

In Stock, Qty 8

0

2

Electrolux/AYP 812000029

Ring, Clip

$4.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$4.99

$

In Stock, Qty 10

0

4

Electrolux/AYP 532124937

Nyliner
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

5

Electrolux/AYP 532142033

Axle, Front
(Superseded to 142033)

$

$

Not available

6

Electrolux/AYP 532124931

Bearing, Thrust
(Superseded to 532006266)

$7.49

$

In Stock, Qty 14

0

7

Electrolux/AYP 532137062

Spindle, R.H. Asm.

$

$

Not available

8

Electrolux/AYP 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 819131316

Washer 13/32 x 13/16 x 16 Ga.

$4.99

$

In Stock, Qty 5

0

11

Electrolux/AYP 532126847

Bushing

$5.99

$

In Stock, only 2 left!

0

12

Electrolux/AYP 532130465

Rod, Tie
(Superseded to 532192757)

$34.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 532137061

Spindle, L.H. Asm.

$

$

Not available

14

Electrolux/AYP 874011056

Bolt Hex 5/1-11 x 3-1/2

$4.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 873901000

Nut, Lock Flange 5/8-11
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 532110438

Spacer, Bearing Axle
(Superseded to 532155134)

$

$

Not available

17

Electrolux/AYP 532124836

Fitting, Grease
(Superseded to 532006855)

$7.49

$

In Stock, only 2 left!

0

18

Electrolux/AYP 819272016

Washer 27/32 x 1-1/4 x 16 Ga.

$6.49

$

In Stock, only 2 left!

0
