PP 1136J A - Poulan Lawn Tractor (1994) ELECTRICAL Parts Diagram

Lawn Tractor

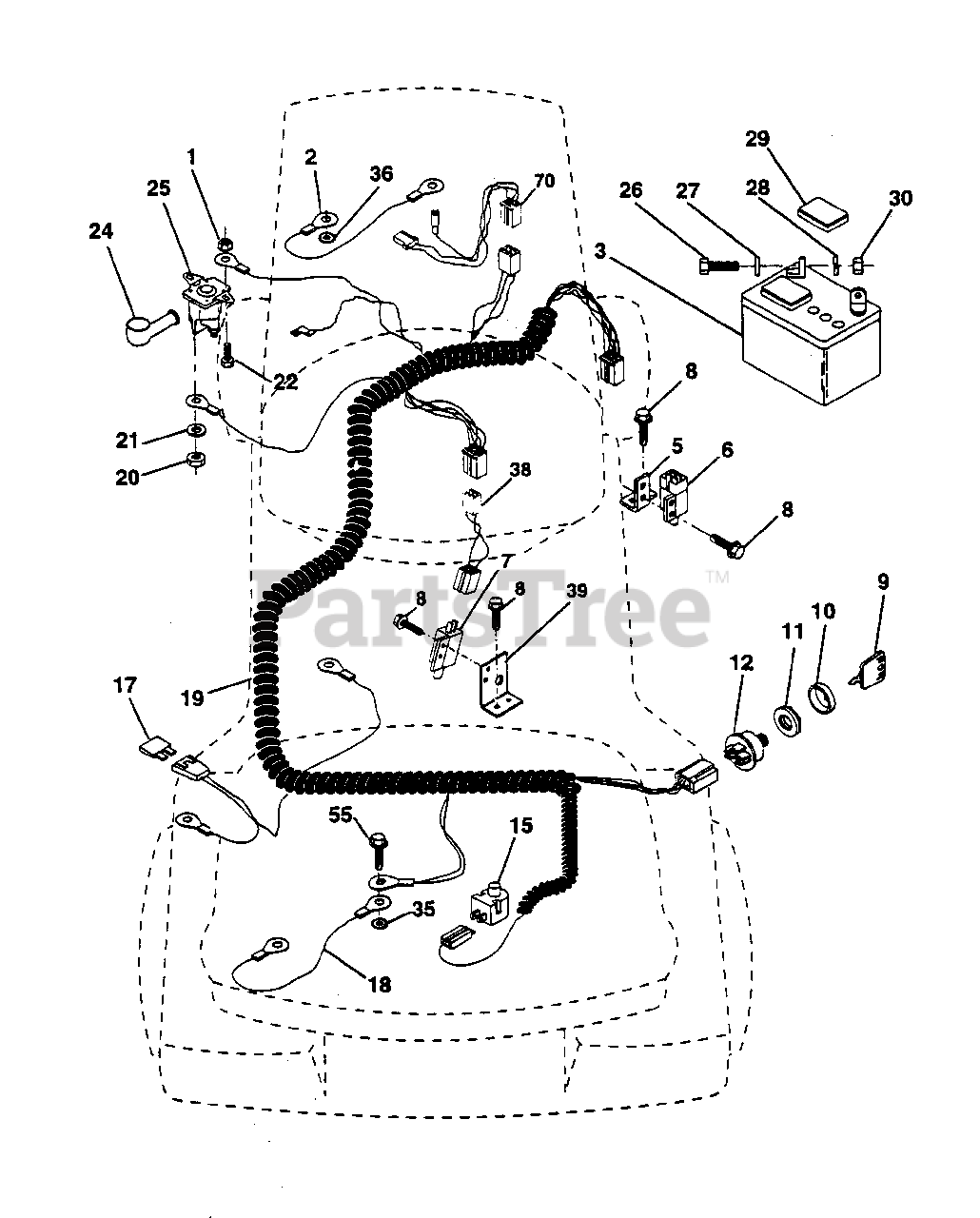

ELECTRICAL Parts Diagram

  • Title

1

Electrolux/AYP 873510400

Nut, Hex Keps 1/4-20
(Superseded to 873640400)

$

$

Not available

2

Electrolux/AYP 532108423

Assembly, Cable

$8.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532133909

Battery
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 532108236

Bracket, Switch

$2.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 532109553

Switch, Interlock (4-terminal)
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532104445

Switch, Interlock (2-terminal)

$17.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 817021008

Screw, Hex Hd. Tap #10-24 x 1/2

$4.99

$

In Stock, Qty 14

0

9

Electrolux/AYP 532140402

Key, Steel Delta
(Superseded to 532140401)

$6.99

$

In Stock, Qty 8

0

10

Electrolux/AYP 532141226

Cover, Key Ignition

$5.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532140400

Nut, Ignition
(Superseded to 532145774)

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 532140399

Switch, Ignition
(Superseded to 532144921)

$66.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 532121305

Switch, Plunger
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

17

Electrolux/AYP 532108824

Fuse

$6.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532128353

Assembly, Cable

$3.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 532143131

Harness, Ignition

$

$

Not available

20

Electrolux/AYP 873350400

Nut, Hex Jam 1/4-20
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

21

Electrolux/AYP 810090400

Washer, Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

22

Electrolux/AYP 874780408

Bolt, Fin. Hex 1/4-20 UNC x 1/2 Gr. 5
(Superseded to 74780408)

$3.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 532131563

Cover, Terminal
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

25

Electrolux/AYP 532138406

Solenoid
(Superseded to 532109946)

$24.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP 874760412

Bolt, Hex Hd. 1/4-20 UNC x 3/4

$7.49

$

In Stock, only 1 left!

0

27

Electrolux/AYP 819091016

Washer 9/32 x 5/8 x 16
(Superseded to 596582301)

$3.99

$

In Stock, Qty 7

0

28

Electrolux/AYP 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

29

Electrolux/AYP 532121264

Cap, Battery

$

$

Not available

30

Electrolux/AYP 873220400

Nut, Fin. Hex 1/4-20 UNC
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

35

Electrolux/AYP 811050500

Washer Lock Ext. Tooth 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 811150400

Washer Lock Inter. Tooth 1/4

$2.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 532140660

Adapter Harness

$

$

Not available

39

Electrolux/AYP 532141735

Bracket Switch Clutch

$2.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 817490508

Screw, Thdrol 5/16-18 x 1/2

$6.49

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 532140413

Harness Engine

$

$

Not available
