PP 1136 - Poulan Pro Lawn Tractor TRANSAXLE Parts Diagram

Lawn Tractor

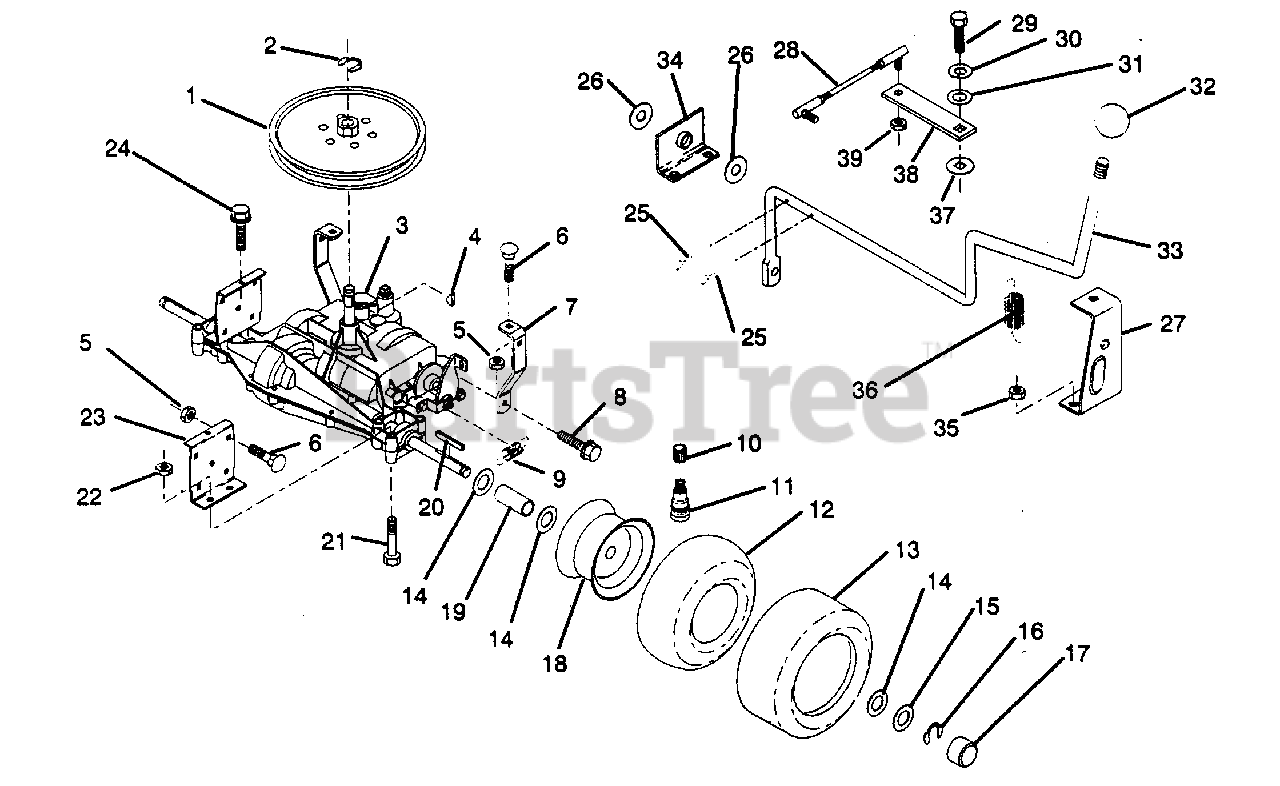

TRANSAXLE Parts Diagram

  • Title

1

Poulan 532123385

Pulley (AYP part number)

$45.99

$

Usually ships in 3-10 days

0

2

Poulan 812000028

Ring, Retainer (AYP part number)
(Superseded to 532002267)

$7.49

$

In Stock, Qty 7

0

3

Poulan 532123383

Transaxle, Foot, 4 Speed (AYP part number)

$

$

Not available

4

Poulan 532125096

Key, Woodruff #9 (AYP part number)

$9.49

$

In Stock, only 1 left!

0

5

Poulan 873680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

6

Poulan 872140506

Bolt, Carriage 5/16-18 UNC x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

7

Poulan 532123378

Strap, Torque (AYP part number)
(Superseded to 123378X)

$2.49

$

Usually ships in 3-10 days

0

8

Poulan 817490508

Screw, Hex Thdrol. 5/16-18 x 1/2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

9

Poulan 532110422

Spring, Brake (AYP part number)
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

10

Poulan 532059192

Cap, Valve (AYP part number)

$7.49

$

In Stock, Qty 9

0

11

Poulan 532065139

Stem, Valve (AYP part number)

$9.99

$

In Stock, only 1 left!

0

12

Poulan 532008134

Tube (AYP part number)

$66.99

$

Usually ships in 3-10 days

0

13

Poulan 532124143

Tire, Rear (AYP part number)

$

$

Not available

14

Poulan 532121749

Washer 25/32 x 1-1/4 x 16 Ga. (AYP part number)

$3.49

$

Usually ships in 3-10 days

0

15

Poulan 532121748

Washer, 25/32 x 1-5/8 x 16 Ga. (AYP part number)

$4.99

$

In Stock, Qty 20+

0

16

Poulan 812000001

E-Ring (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 532104757

Hub, Cap (AYP part number)

$4.99

$

In Stock, Qty 20+

0

18

Poulan 532125097

Rim (AYP part number)
(Superseded to 532124844)

$

$

Not available

19

Poulan 532123409

Spacer (AYP part number)

$

$

Not available

20

Poulan 532123583

Key, Square (AYP part number)

$4.99

$

In Stock, only 4 left!

0

21

Poulan 874760644

Bolt, Fin, Hex 3/8-16 x 2-3/4 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

22

Poulan 873680600

Nut, Crownlock 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

23

Poulan 532123377

Bracket, Transaxle (AYP part number)
(Superseded to 123377X)

$

$

Not available

24

Poulan 817490512

Screw, 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

25

Poulan 876020416

Pin, Cotter 1/8 532 1 (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

26

Poulan 819171616

Washer 17/32 x 1 x 16 Ga. (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

27

Poulan 532124601

Support, Handle Shift R.H. (AYP part number)

$

$

Not available

28

Poulan 532123632

Link, Shift (AYP part number)

$

$

Not available

29

Poulan 871040412

Bolt, Fin, Hex 1/4-28 UNF x 3/4 Gr.8 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

30

Poulan 810040400

Washer, Lock Hvy. Helical Spring 1/4 (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

31

Poulan 819091210

Washer 9/32 x 3/4 x 10 Ga. (AYP part number)
(Superseded to 734115441)

$4.99

$

In Stock, only 1 left!

0

32

Poulan 532106933

Knob, Shift Contol (AYP part number)

$7.99

$

In Stock, only 1 left!

0

33

Poulan 532124599

Shift Rod (AYP part number)

$

$

Not available

34

Poulan 532124600

Support, Handle Shift L.H. (AYP part number)

$

$

Not available

35

Poulan 873510500

Nut, Keps 5/16-18 (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

36

Poulan 532123393

Extension, Spring (AYP part number)
(Superseded to 532128085)

$

$

Not available

37

Poulan 532105701

Washer, Shift Plate (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

38

Poulan 532123484

Arm, Shift (AYP part number)

$

$

Not available

39

Poulan 873810500

Nut, Hex Nylon 5/16-24 (AYP part number)
(Superseded to 873610500)

$

$

Not available
