PP 1136 - Poulan Pro Lawn Tractor SEAT Parts Diagram

Lawn Tractor

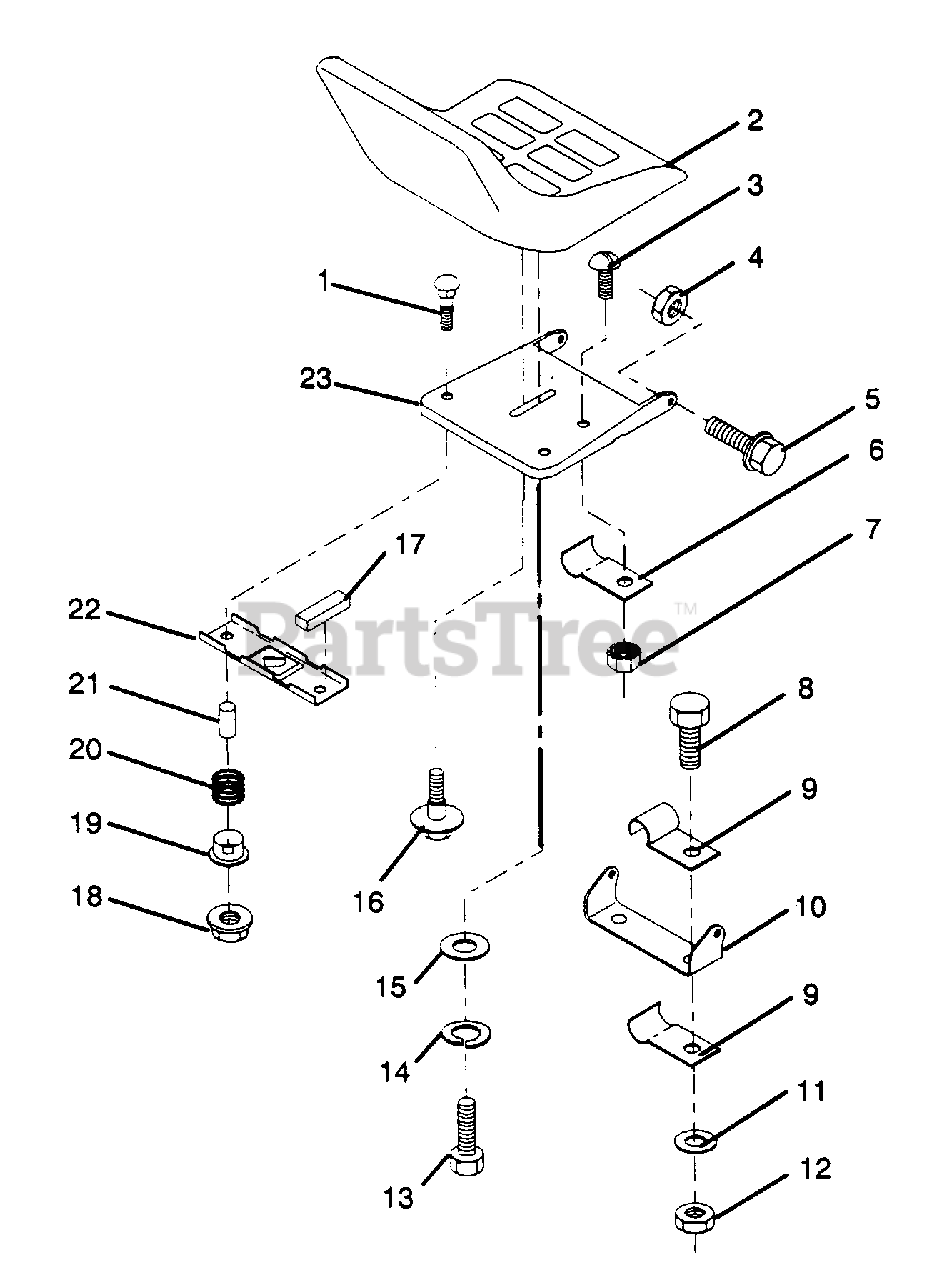

SEAT Parts Diagram

  • Title

1

Poulan 872170410

Bolt, Carriage 1/4-20 x 1 1/4 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

2

Poulan 532127422

Seat (AYP part number)
(Superseded to 532127423)

$206.99

$

Usually ships in 3-10 days

0

3

Poulan 874641008

Screw, Slotted Pan Head 10-32 x 1/2 (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

4

Poulan 873680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

5

Poulan 532105529

Bolt, Shoulder 5/16-18 UNC (AYP part number)
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

6

Poulan 532124967

Clip, Insulated (AYP part number)

$

$

Not available

7

Poulan 873951000

Nut, Keps 10-32 UNF (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

8

Poulan 874760612

Bolt, Fin. Hex 3/8-16 UNC x 3/4 (AYP part number)

$4.99

$

In Stock, only 3 left!

0

9

Poulan 532126471

Clip, Insulated (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 532126656

Bracket, Pivot Seat (AYP part number)

$

$

Not available

11

Poulan 819131210

Washer 13/32 x 3/4 x 10 Ga. (AYP part number)
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

12

Poulan 873680600

Nut, Crownlock 3/8-16 UNC
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

13

Poulan 874780814

Bolt, Fin Hex 1/2-13 UNCx 7/8 Gr. 5 (AYP part number)
(Superseded to 871110814)

$10.99

$

Usually ships in 3-10 days

0

14

Poulan 810040800

Washer, Lock Hvy Helical Spring (AYP part number)

$6.99

$

Usually ships in 3-10 days

0

15

Poulan 819171912

Washer, 17/32 x 1 3/16 x 12 Ga. (AYP part number)

$7.49

$

In Stock, only 1 left!

0

16

Poulan 532127018

Bolt, Shoulder (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

17

Poulan 532121251

Strip, Foam (AYP part number)

$

$

Not available

18

Poulan 532123976

Nut, Hex Large Flange Loc. (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

19

Poulan 532121248

Bushing, Snap (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

20

Poulan 532121250

Spring, Compression (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

21

Poulan 532121249

Spacer, Split 28 Id. x .88 Lg. (AYP part number)

$6.49

$

In Stock, only 2 left!

0

22

Poulan 532121246

Bracket, Switch, Mounting (AYP part number)
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

23

Poulan 532124294

Pan, Seat (AYP part number)

$

$

Not available
