PP 1136 JA - Poulan Pro Lawn Tractor FENDER / CHASSIS Parts Diagram

Lawn Tractor

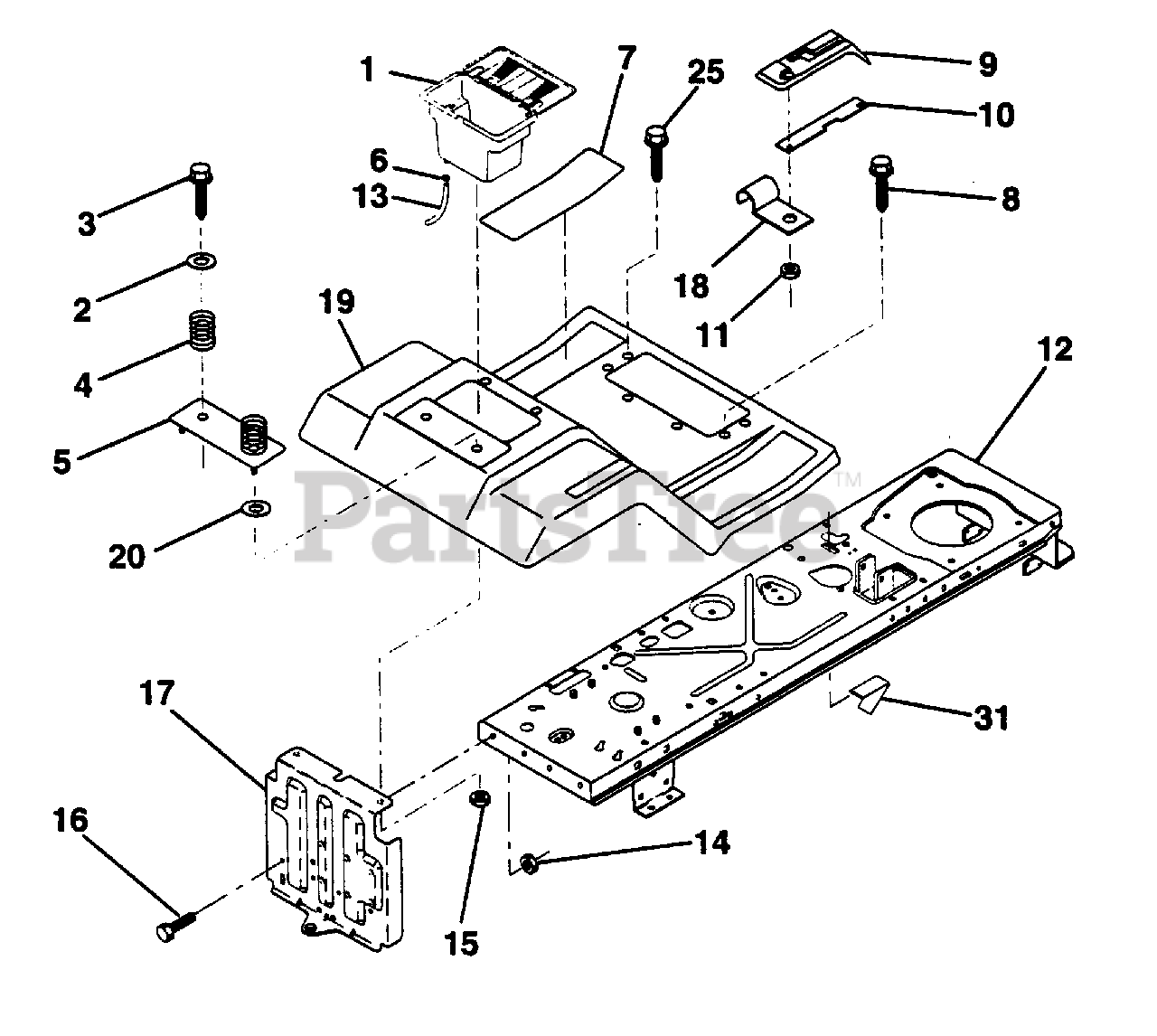

FENDER / CHASSIS Parts Diagram

  • Title
1

Poulan 532129965

Case, Battery (AYP part number)
(Superseded to 532144940)

$

$

Not available

2

Poulan 819132012

Washer 13/32 x 1-1/4 x 12 Ga. (AYP part number)

$1.99

$

Usually ships in 3-10 days

0

3

Poulan 817490612

Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

4

Poulan 532124181

Spring, Compression, Seat (AYP part number)
(Superseded to 587613301)

$6.99

$

In Stock, only 3 left!

0

5

Poulan 532125139

Plate, Asm. Battery (AYP part number)

$

$

Not available

6

Poulan 532109596

Clamp, Hose (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

7

Poulan 532124144

Pad, Footrest (AYP part number)

$

$

Not available

8

Poulan 817490512

Screw, Hex Wsh Thdrol. 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

9

Poulan 532126994

Console, Shift Control (AYP part number)

$

$

Not available

10

Poulan 532139783

Bar, Shift Lock (AYP part number)

$

$

Not available

11

Poulan 532124346

Nut, Self-Thrd., Wsh. Head 3/16 (AYP part number)

$7.99

$

In Stock, only 1 left!

0

12

Poulan 532140784

Assembly, Frame (AYP part number)

$

$

Not available

13

Poulan 532109238

Tube, Battery Drain (AYP part number)

$

$

Not available

14

Poulan 873800500

Locknut, Hex W/Ins 5/16-18 (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

15

Poulan 873510400

Nut, Keps Hex 1/4-20 UNC (AYP part number)
(Superseded to 873640400)

$

$

Not available

16

Poulan 874760512

Bolt, Hex Hd. 5/16-18 UNC x 3/4 (AYP part number)
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

17

Poulan 532140782

Drawbar (AYP part number)

$

$

Not available

18

Poulan 532126470

Clip, Insulated (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 532141266

Fender/Footrest (AYP part number)

$

$

Not available

20

Poulan 819091413

Washer 9/32 x 7/8 x 13 Ga. (AYP part number)
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

25

Poulan 817490516

Screw Hex Wsh Thdroll 5/16-18 x 1 (AYP part number)
(Superseded to 539113226)

$6.49

$

Usually ships in 3-10 days

0

31

Poulan 532141736

Switch Actuator (AYP part number)

$

$

Not available
