PP 1136 A - Poulan Pro Lawn Tractor MOWER DECK Parts Diagram

Lawn Tractor

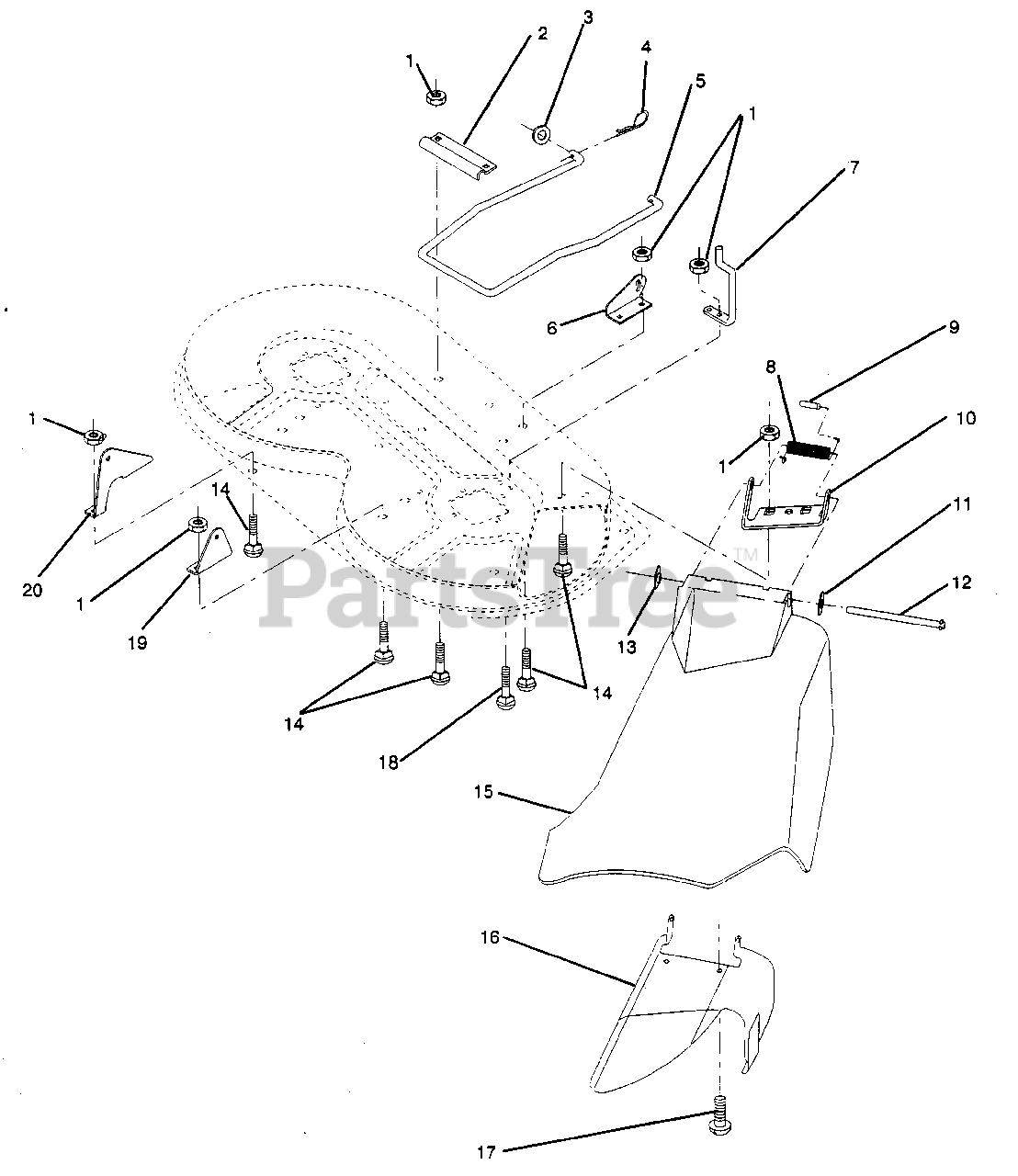

MOWER DECK Parts Diagram

  • Title
1

Poulan 873680500

Nut Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

2

Poulan 532122047

Bracket, Stabilizer Link (AYP part number)
(Superseded to 122047X)

$

$

Not available

3

Poulan 819171713

Washer 17/32 x 1 1/16 x 13 Ga. (AYP part number)
(Superseded to 532059375)

$

$

Not available

4

Poulan 532004921

Retainer, Spring (AYP part number)

$6.49

$

In Stock, only 2 left!

0

5

Poulan 532124636

Stabilizer, Mower Link (AYP part number)

$

$

Not available

6

Poulan 532122045

Bracket, R.H. Front Lift (AYP part number)
(Superseded to 122045X)

$

$

Not available

7

Poulan 532123661

Guide, Front Mandrel R.H. Mower Belt (AYP part number)

$

$

Not available

8

Poulan 532123713

Spring, Torsion (AYP part number)

$7.99

$

In Stock, only 1 left!

0

9

Poulan 532105304

Cap, Sleeve (AYP part number)

$4.99

$

In Stock, Qty 20+

0

10

Poulan 532126361

Bracket, Deflector (AYP part number)
(Superseded to 532136631)

$7.49

$

Usually ships in 3-10 days

0

11

Poulan 819111016

Washer 11/32 x 5/8 x 16 Ga. (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

12

Poulan 532121980

Rod, Hinge (AYP part number)
(Superseded to 583383801)

$

$

Not available

13

Poulan 532110452

Pushnut (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 872140505

Bolt, Carriage 5/16-18 UNC x 5/8 (AYP part number)
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

15

Poulan 532126370

Guard, Discharge (AYP part number)
(Superseded to 532136244)

$

$

Not available

16

Poulan 532125629

Assembly, Deflector Support (AYP part number)

$

$

Not available

17

Poulan 817051007

Screw, Pan Hd. PLT-30 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

18

Poulan 874760512

Bolt, Hex Head 5/16-18 UNC x 3/4 (AYP part number)
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

19

Poulan 532122043

Bracket, R.H. Rear Lift (AYP part number)

$

$

Not available

20

Poulan 532122044

Bracket, L.H. Rear Lift (AYP part number)
(Superseded to 122044X)

$

$

Not available

Poulan 532109820

Decal, Caution (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532105814

Decal, V-Belt Mower Drive (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532123649

Decal, Warning (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532123658

Decal, Warning (AYP part number)

Note: Not Shown.

$

$

Not available

, Decal, Safety Standard

Note: Not Shown.

$

$

Not available
