PP 1136 A - Poulan Pro Lawn Tractor FRONT AXLE Parts Diagram

Lawn Tractor

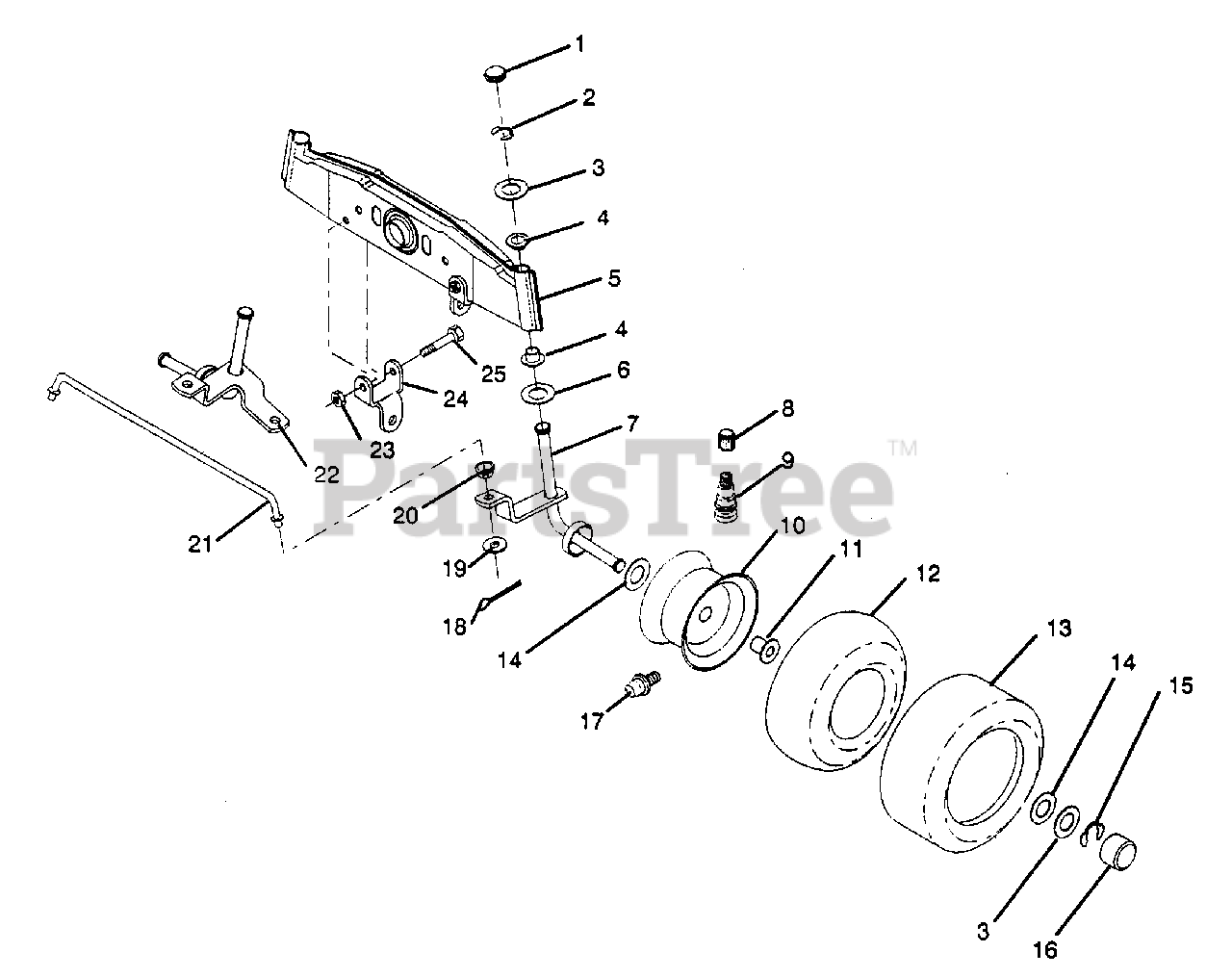

FRONT AXLE Parts Diagram

  • Title
1

Poulan 532121232

Cap, Spindle (AYP part number)

$4.99

$

In Stock, Qty 9

0

2

Poulan 812000029

Ring, Clip (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

3

Poulan 532121748

Washer 25/32 x 1-5/8 x 16 Ga. (AYP part number)

$4.99

$

In Stock, Qty 20+

0

4

Poulan 532121922

Nyliner (AYP part number)

$6.99

$

In Stock, Qty 7

0

5

Poulan 532121914

Axle, Front (AYP part number)

$

$

Not available

6

Poulan 532124931

Bearing, Thrust (AYP part number)
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

7

Poulan 532121919

Spindle R.H. Asm. (AYP part number)

$

$

Not available

8

Poulan 532059192

Cap, Valve (AYP part number)

$7.49

$

In Stock, Qty 9

0

9

Poulan 532065139

Stem, Valve (AYP part number)

$9.99

$

In Stock, only 3 left!

0

10

Poulan 532125095

Rim (AYP part number)

$

$

Not available

11

Poulan 532124959

Bearing, Flange (AYP part number)
(Superseded to 532009040)

$7.99

$

In Stock, Qty 20+

0

$37.99

$

In Stock, Qty 7

0

13

Poulan 532124142

Tire, Front (AYP part number)
(Superseded to 532123410)

$66.99

$

Usually ships in 3-10 days

0

14

Poulan 532121749

Washer 25/32 x 1-1/4 x 16 Ga. (AYP part number)

$3.49

$

Usually ships in 3-10 days

0

15

Poulan 812000029

Ring, Clip (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

16

Poulan 532104757

Cap, Hub (AYP part number)

$4.99

$

In Stock, Qty 20+

0

17

Poulan 532124957

Fitting, Grease (AYP part number)
(Superseded to 532000278)

$6.99

$

Usually ships in 3-10 days

0

18

Poulan 876020412

Pin, Cotter 1/8 x 3/4 (AYP part number)
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

19

Poulan 819131316

Washer 13/32 x 13/16 x 16 Ga. (AYP part number)

$4.99

$

In Stock, Qty 5

0

20

Poulan 532126847

Bushing (AYP part number)

$5.99

$

In Stock, only 2 left!

0

21

Poulan 532121924

Rod, Tie (AYP part number)

$

$

Not available

22

Poulan 532121916

Spindle, L.H. Asm. (AYP part number)

$

$

Not available

23

Poulan 873680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

24

Poulan 532121915

Bracket, Front Stabilizer Link (AYP part number)

$

$

Not available

25

Poulan 874760540

Bolt, Hex, Fin. 5/16-18 UNC x 2-1/2 (AYP part number)

$2.99

$

Usually ships in 3-10 days

0
