PP 1136 A - Poulan Lawn Tractor (1991) HOOD Parts Diagram

Lawn Tractor

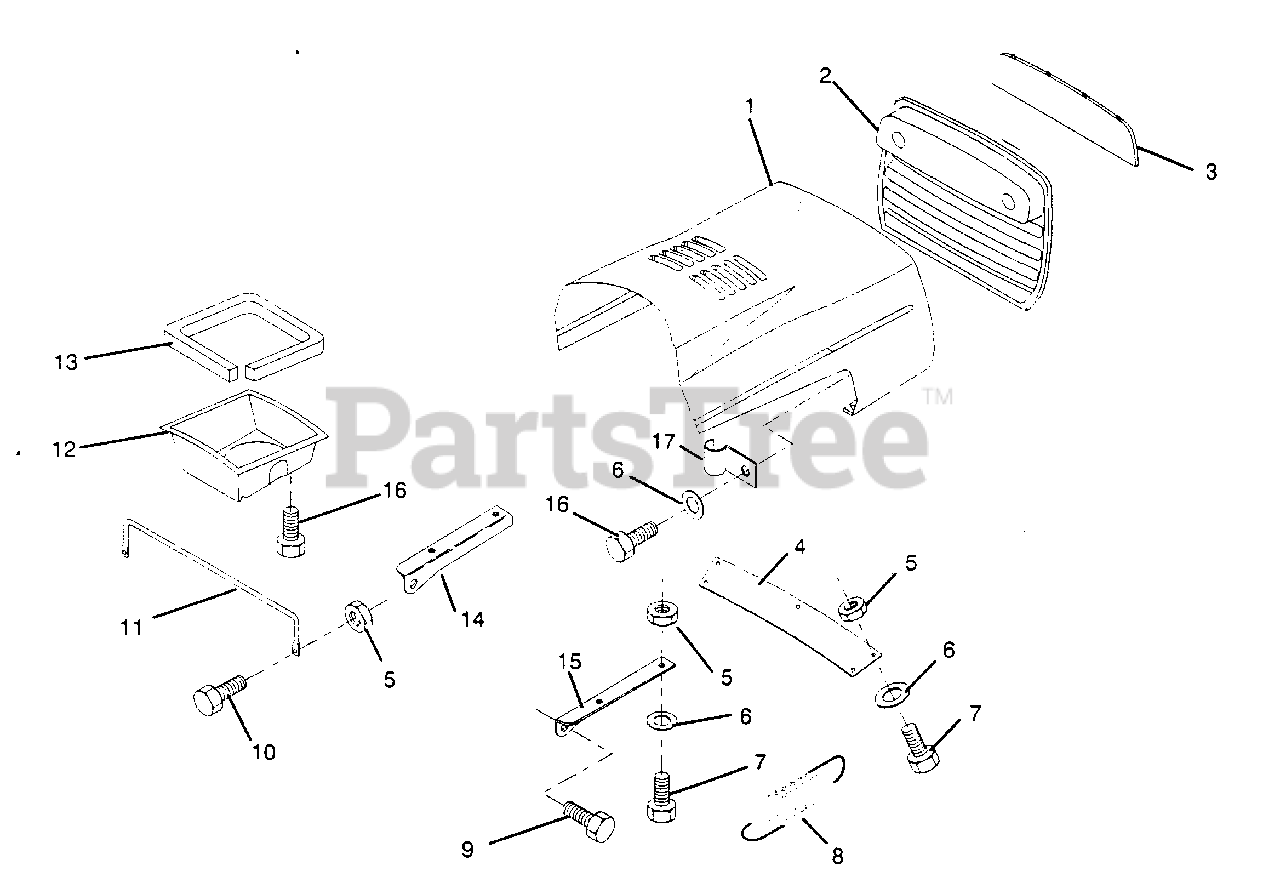

HOOD Parts Diagram

  • Title

1

Electrolux/AYP 532124816

Hood

$

$

Not available

2

Electrolux/AYP 532126268

Grill
(Superseded to 583672601)

$35.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532122035

Lens

$14.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 532124851

Strap, Grill

$

$

Not available

5

Electrolux/AYP 873510400

Nut, Hex Keps 1/4-20 UNC
(Superseded to 873640400)

$

$

Not available

6

Electrolux/AYP 819091016

Washer, 9/32 x 5/8 x 16 Ga.
(Superseded to 596582301)

$3.99

$

In Stock, Qty 7

0

7

Electrolux/AYP 874780410

Bolt, Hex Fin. 1/4-20 UNC x 5/8 Gr. 5
(Superseded to 74780410)

$3.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 532124657

Extension, Spring

$10.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532126675

Bolt, Thrd. Forming Shoulder
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

10

Electrolux/AYP 874780412

Bolt, Hex Fin. 1/4-20 x 3/4 Gr. 5
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532123693

Brace, Hood

$

$

Not available

12

Electrolux/AYP 532123840

Duct, Air

$

$

Not available

13

Electrolux/AYP 532120537

Strip, Foam

$

$

Not available

14

Electrolux/AYP 532122548

Bracket, Hood L.H.

$2.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 532122549

Bracket, Hood R.H.
(Superseded to 122549X)

$

$

Not available

16

Electrolux/AYP 817411310

Screw, Fin. Hex #13-16 Hi-Lo x 5/8

$3.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532124996

Clip, Fuel Line
(Superseded to 532002751)

$

$

Not available

Electrolux/AYP 532127643

Decal, L.H. Hood Stripe

Note: Not Shown.

$

$

Not available

Electrolux/AYP 532127630

Decal, Grill

Note: Not Shown.

$

$

Not available

Electrolux/AYP 532127643

Decal, R.H. Hood Stripe

Note: Not Shown.

$

$

Not available

Electrolux/AYP 532124603

Decal, Side Panel

Note: Not Shown.

$

$

Not available
