PP 1136 A - Poulan Lawn Tractor (1991) DASH Parts Diagram

Lawn Tractor

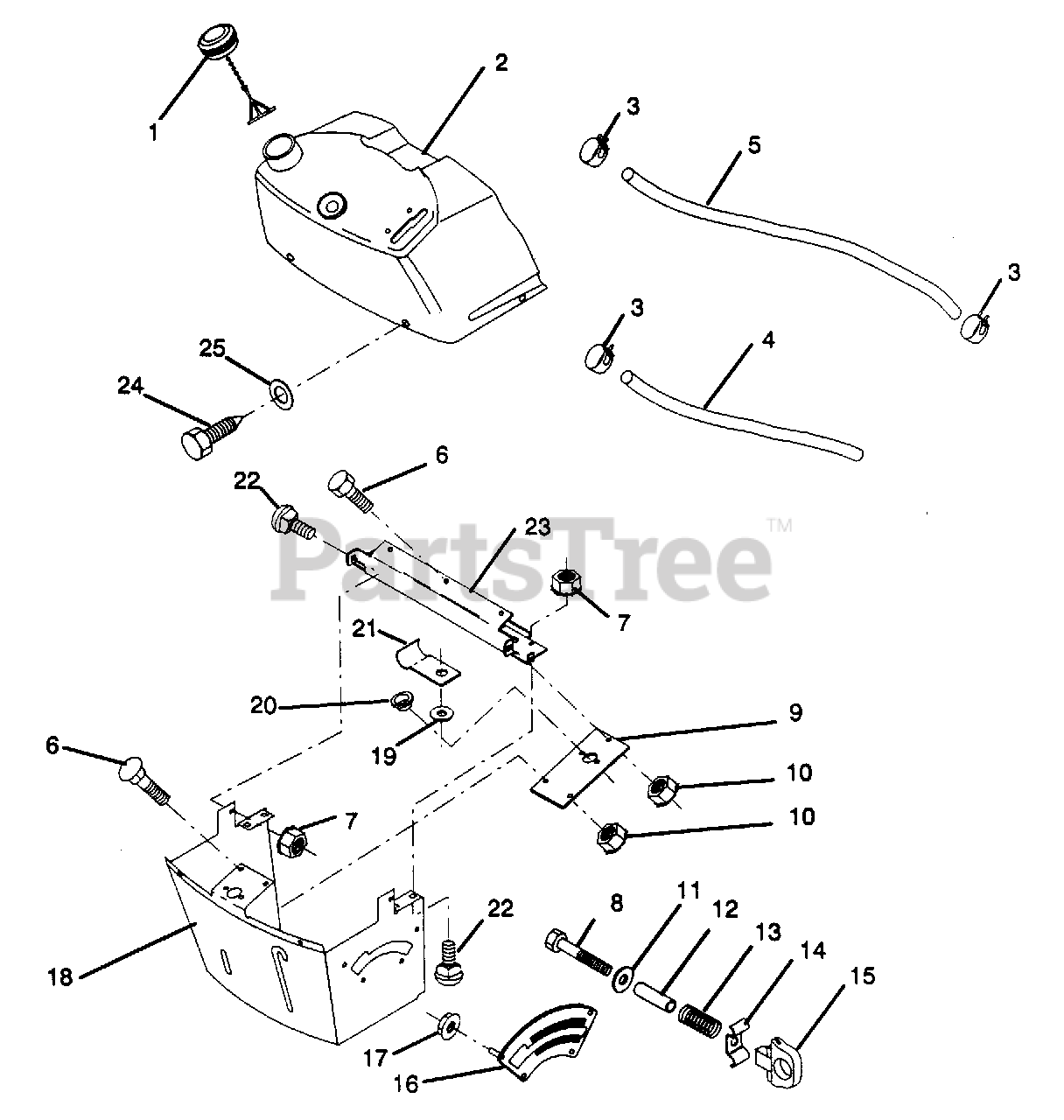

DASH Parts Diagram

  • Title
1

Electrolux/AYP 532122015

Cap, Fuel
(Superseded to 532141523)

$26.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532123986

Assembly, Dash & Fuel Tank
(Superseded to 532130913)

$

$

Not available

3

$7.49

$

In Stock, only 1 left!

0

$7.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 532008544

Line, Fuel
(Superseded to 532000295)

$

$

Not available

6

Electrolux/AYP 874780412

Bolt, Hex, 1/4-20 x 3/4
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 873510400

Nut, Hex Keps 1/4-20
(Superseded to 873640400)

$

$

Not available

8

Electrolux/AYP 874760432

Bolt, Fin. Hex 1/4-20 x 2

$9.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532130051

Plate, Support
(Superseded to 539130705)

$279.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 873690400

Nut, Lock 1/4-20
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

11

Electrolux/AYP 819111116

Washer, 11/32 x 11/16 x 16
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

12

Electrolux/AYP 532123494

Spacer, Split

$

$

Not available

13

Electrolux/AYP 532124874

Spring
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 532123493

Knob, Height Retainer

$

$

Not available

15

Electrolux/AYP 532126115

Knob, Height Stop
(Superseded to 126115X)

$

$

Not available

16

Electrolux/AYP 532122023

Adjustment, Quadrant Height

$9.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532124346

Nut, Self Thread 3/16-18

$7.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 532121789

Support, Dash

$

$

Not available

19

Electrolux/AYP 819091216

Washer 9/32 x 3/4 x 16 Ga.
(Superseded to 596204201)

$3.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 532110436

Grommet, Split
(Superseded to 532009151)

$

$

Not available

21

Electrolux/AYP 532124996

Clip, Fuel line
(Superseded to 532002751)

$

$

Not available

22

Electrolux/AYP 872110404

Bolt, Carriage 1/4-20 x 1/2 Gr.5

$9.49

$

Usually ships in 3-10 days

0

23

$

$

Not available

24

Electrolux/AYP 532130052

Screw, Self Tapping 1/4-20 x 1/2
(Superseded to 818000408)

$

$

Not available

25

Electrolux/AYP 819090816

Washer 9/32x1/2 x 16 Ga.

$

$

Not available
