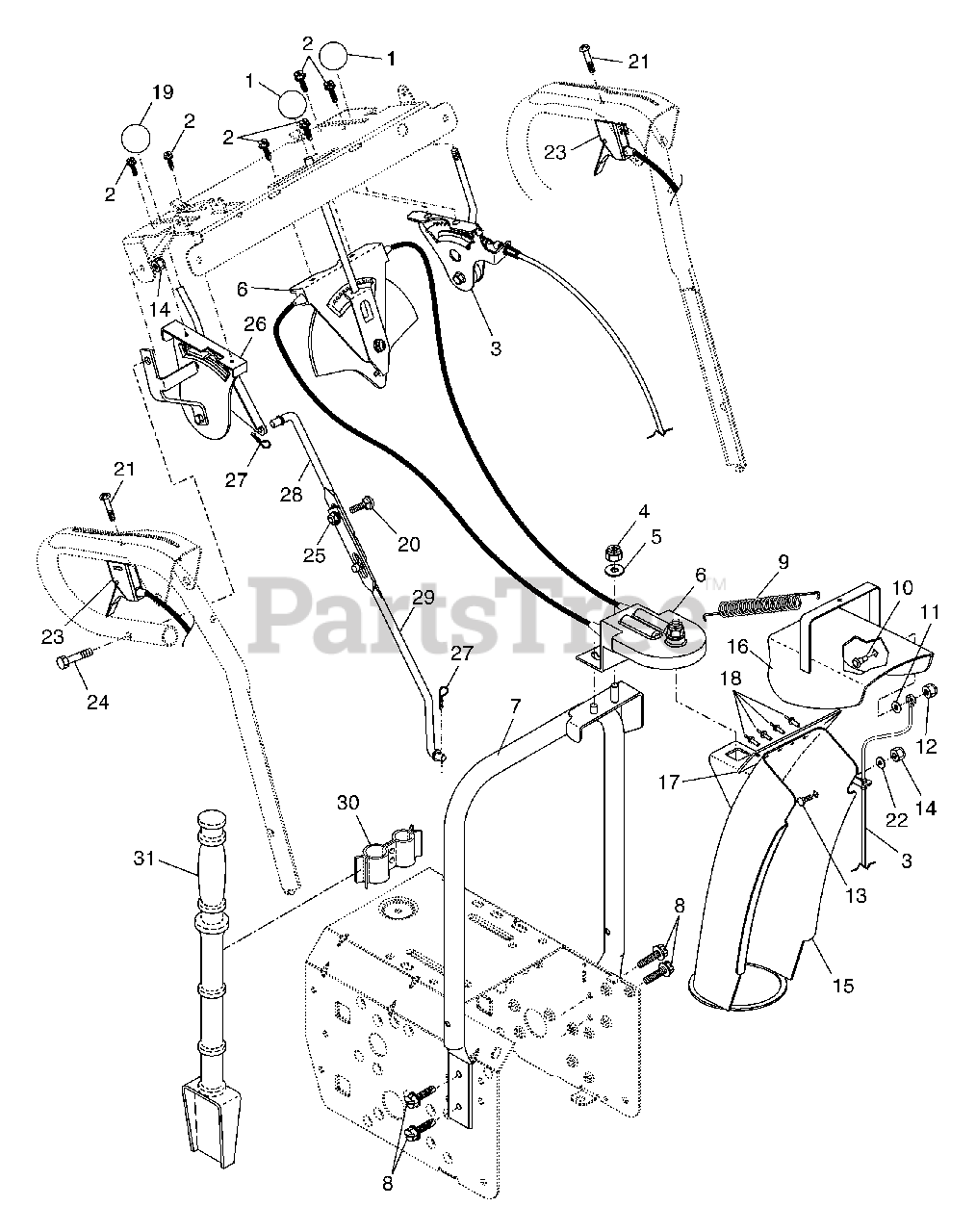

PP 1130 ES-C - Poulan Pro Snow Thrower (2004) Control Panel / Discharge Chute Parts Diagram

Snow Thrower

Control Panel / Discharge Chute Parts Diagram

  • Title
1

Electrolux/AYP 183334

Knob, Lever
(Superseded to 532414280)

$7.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 17501010

Screw #10-24 x 5/8
(Superseded to 817501010)

$

$

Not available

3

Electrolux/AYP 178674

Control Assembly, Deflector
(Superseded to 585271701)

$80.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 73800600

Nut, Lock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 19131316

Washer, Flat 3/8
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 178659

Control Assembly, Chute Rotater
(Superseded to 532428272)

$

$

Not available

7

Electrolux/AYP 178638X479

Support, Pivot

$

$

Not available

8

Electrolux/AYP 150078

Screw, Hex Head 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

9

Electrolux/AYP 184505

Spring, Deflector
(Superseded to 532184505)

$7.99

$

In Stock, Qty 8

0

10

Electrolux/AYP 179829

Bolt, Shoulder
(Superseded to 532179829)

$6.49

$

In Stock, Qty 10

0

11

Electrolux/AYP 179246

Washer, Friction, Nylon
(Superseded to 532179246)

$7.49

$

In Stock, Qty 6

0

12

Electrolux/AYP 73800400

Nut, Lock 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 72250505

Bolt, Carriage 5/16-18
(Superseded to 872250505)

$8.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 73800500

Nut, Lock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 178628X428

Chute Assembly
(Superseded to 532443624)

$78.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 178633X428

Deflector Assembly
(Superseded to 532184511)

$102.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 179145

Seal, Deflector
(Superseded to 532179145)

$7.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 128415

Rivet, Blind
(Superseded to 532128415)

$4.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 183333

Knob, Speed Control Lever
(Superseded to 532414281)

$22.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 72270506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 872110506)

$7.49

$

In Stock, Qty 20+

0

21

Electrolux/AYP 74041024

Screw #10-24 x 1-1/2
(Superseded to 874041024)

$4.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 155415

Washer, Flat
(Superseded to 532155415)

$5.99

$

In Stock, only 1 left!

0

23

Electrolux/AYP 188303

Control Assembly, Power Steering
(Superseded to 532188303)

$40.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 74780528

Screw, Hex Head 5/16-18 x 1-3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 155377

Nut, Lock 5/16-18
(Superseded to 532155377)

$6.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 179257

Lever Assembly, Speed Control
(Superseded to 532429667)

$

$

Not available

27

Electrolux/AYP 169675

Retainer, Hairpin
(Superseded to 532169675)

$7.49

$

In Stock, only 1 left!

0

28

Electrolux/AYP 180445

Rod, Upper, Speed Control
(Superseded to 532180445)

$39.99

$

In Stock, Qty 5

0

29

Electrolux/AYP 187716

Rod, Lower, Speed Control
(Superseded to 532187716)

$

$

Not available

30

Electrolux/AYP 192710

Clamp, Clean-Out Tool
(Superseded to 532192710)

$10.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 192199

Tool, Clean-Out
(Superseded to 532192199)

$34.99

$

In Stock, only 3 left!

0
