PP 111 - Poulan Pro String Trimmer POWER UNIT Parts Diagram

String Trimmer

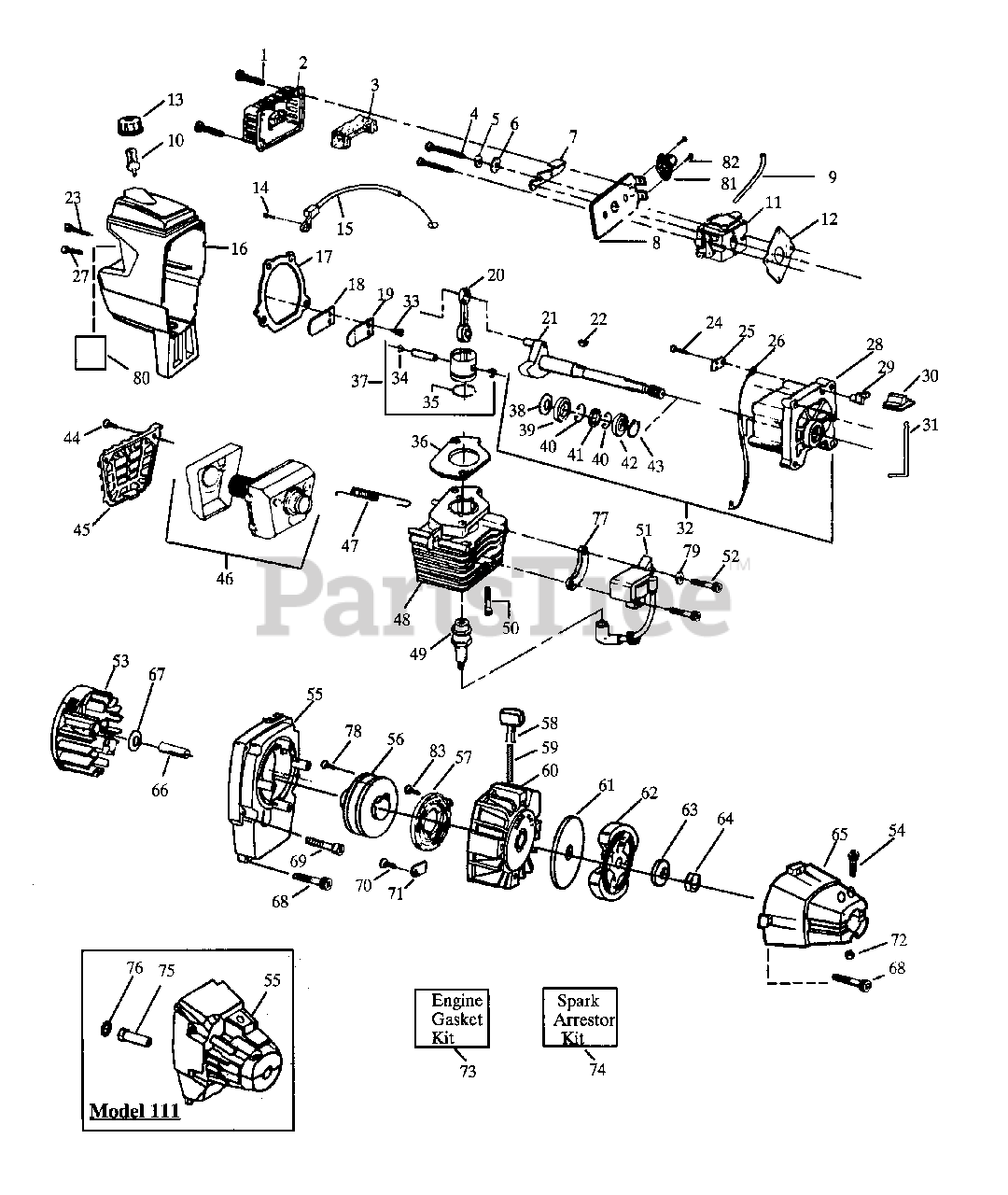

POWER UNIT Parts Diagram

  • Title

1

Poulan 530015773

Screw

$3.99

$

In Stock, only 2 left!

0

2

Poulan 530027529

Air Filter Cover

$

$

Not available

3

Poulan 530027530

Air Filter

$6.49

$

In Stock, Qty 11

0

4

Poulan 530015849

Screw

$6.49

$

In Stock, only 1 left!

0

5

Poulan 530015852

Spacer

$3.49

$

In Stock, only 1 left!

0

6

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

7

Poulan 530027526

Choke Shutter, Type 1

$1.99

$

Usually ships in 3-10 days

0

7

Poulan 530038103

Choke Shutter, Type 2 & 3

$

$

Not available

8

Poulan 530027527

Air Filter Plate, Type 1

$2.99

$

Usually ships in 3-10 days

0

8

Poulan 530037930

Air Filter Plate, Type 2 & 3

$

$

Not available

9

Poulan 530069247

Fuel Line Kits, Fuel Line

$7.99

$

In Stock, Qty 20+

0

9

Poulan 530069571

Fuel Line Kits, Return Line 114 Type 2-3

$6.49

$

In Stock, Qty 10

0

10

Poulan 530014362

Fuel Pick-up Ass'y.
(Superseded to 530095646)

$6.99

$

In Stock, Qty 19

0

11

Poulan 530069637

Carburetor, Model 111 (WA-217)
(Superseded to 545081825)

$66.99

$

Usually ships in 3-10 days

0

11

Poulan 530035259

Carburetor, Model 114 (WA-199) Type 1 & 2
(Superseded to 545081825)

$66.99

$

Usually ships in 3-10 days

0

11

Poulan 530069651

Carburetor, Model 114 (WT-298A) Type 3

$

$

Not available

12

Poulan 530019156

Carburetor Gasket

$8.99

$

In Stock, only 2 left!

0

13

Poulan 530014347

Fuel Cap Ass'y.

$9.49

$

In Stock, Qty 15

0

14

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

15

Poulan 530037498

Throttle Cable Ass'y., Model 111

$

$

Not available

15

Poulan 530037497

Throttle Cable Ass'y., Model 114

$

$

Not available

16

Poulan 530037498

Shroud & Tank Ass'y., Type 1

$

$

Not available

16

Poulan 530047087

Shroud & Tank Ass'y., Type 2 & 3

$46.99

$

Usually ships in 3-10 days

0

17

Poulan 530019154

Crankcase/Shroud Gasket

$3.99

$

In Stock, only 1 left!

0

18

Poulan 530027593

Reed

$6.49

$

In Stock, only 2 left!

0

19

Poulan 530027594

Reed Stop

$5.99

$

Usually ships in 3-10 days

0

20

Poulan 530014005

Connect Rod Ass'y.

Note: (Incl. Bearings), Model 111

$

$

Not available

20

Poulan 530010960

Connect Rod Ass'y.

Note: (Incl. Bearings), Model 114

$18.99

$

Usually ships in 3-10 days

0

21

Poulan 530010945

Crankshaft Ass'y. -See Ser. Ref. 2, Model 111

$43.99

$

Usually ships in 3-10 days

0

21

Poulan 530010934

Crankshaft Ass'y. -See Ser. Ref. 2, Model 114

$34.99

$

Usually ships in 3-10 days

0

22

Poulan 530015126

Flywheel Key

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 530015772

Screw

$3.99

$

In Stock, only 2 left!

0

24

Poulan 530015780

Screw

$6.49

$

In Stock, only 2 left!

0

25

Poulan 530027546

Switch Insulator

$4.99

$

Usually ships in 3-10 days

0

26

Poulan 530027547

Lead Wire

$

$

Not available

27

Poulan 530015771

Screw

$6.49

$

In Stock, Qty 6

0

28

Poulan 530014016

C'case Ass'y.

Note: (Incl. 39-42)

$

$

Not available

29

Poulan 530027545

Switch Ramp

$3.99

$

Usually ships in 3-10 days

0

30

Poulan 530038309

Switch Button

$4.99

$

In Stock, Qty 8

0

31

Poulan 530027959

Switch Spring

$

$

Not available

32

Poulan 530014004

Crankcase & Crankshaft Ass'y (21, 28 & 39-43), Model 111

$

$

Not available

32

Poulan 530014015

Crankcase & Crankshaft Ass'y (21, 28 & 39-43), Model 114
(Superseded to 530071705)

$37.99

$

Usually ships in 3-10 days

0

33

Poulan 530015241

Screw

$3.99

$

Usually ships in 3-10 days

0

34

Poulan 530015162

Piston Pin Retainer

$6.49

$

In Stock, only 1 left!

0

35

Poulan 530026413

Piston Ring, Model 111

$

$

Not available

35

Poulan 530025875

Piston Ring, Model 114

$

$

Not available

36

Poulan 530019178

Cylinder Gasket
(Superseded to 530019267)

$4.99

$

In Stock, only 4 left!

0

37

Poulan 530069274

Piston Kit

Note: (Incl. 34,35 & pin), Model 111

$

$

Not available

37

Poulan 530069277

Piston Kit

Note: (Incl. 34,35 & pin), Model 114

$54.99

$

Usually ships in 3-10 days

0

39

Poulan 530032103

Inner Bearing

$

$

Not available

40

Poulan 530015787

Retaining Ring

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 530019158

Crankshaft Seal

$6.49

$

Usually ships in 3-10 days

0

42

Poulan 530032102

Outer Bearing

$

$

Not available

43

Poulan 530015789

Crankshaft Retaining Ring

$4.99

$

Usually ships in 3-10 days

0

44

Poulan 530015717

Screw

$3.99

$

Usually ships in 3-10 days

0

45

Poulan 530027781

Muffler Guard

$3.99

$

Usually ships in 3-10 days

0

46

Poulan 530069257

Muffler Kit
(Superseded to 530069310)

$

$

Not available

47

Poulan 530036409

Muffler Attachment Spring

$

$

Not available

48

Poulan 530012244

Cylinder, Model 111
(Superseded to 530069627)

$

$

Not available

48

Poulan 530012238

Cylinder, Model 114 Type 1 & 2
(Superseded to 530071581)

$78.99

$

Usually ships in 3-10 days

0

48

Poulan 530069628

Cylinder, Model 114 Type 3
(Superseded to 530071581)

$78.99

$

Usually ships in 3-10 days

0

49

Poulan 530030077

Spark Plug, Type 1 & 2

$

$

Not available

49

Poulan 530030075

Spark Plug, Type 3 (RCJ-8Y)

$

$

Not available

50

Poulan 530015239

Screw

$2.49

$

Usually ships in 3-10 days

0

51

Poulan 530039134

Ignition Module Kit

$

$

Not available

52

Poulan 530015776

Screw, Model 111

$0.99

$

Usually ships in 3-10 days

0

52

Poulan 530015128

Screw, Model 114
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

53

Poulan 530047198

Flywheel Ass'y., Model 111

$

$

Not available

53

Poulan 530039189

Flywheel Ass'y., Model 114

$

$

Not available

54

Poulan 530015767

Screw

$3.99

$

In Stock, only 2 left!

0

55

Poulan 530014046

Fan Housing, Model 111

$24.99

$

Usually ships in 3-10 days

0

55

Poulan 530027946

Fan Housing, Model 114

$14.99

$

Usually ships in 3-10 days

0

56

Poulan 530069291

Starter Pulley Kit
(Superseded to 530071387)

Note: (Incl. 78)

$

$

Not available

57

Poulan 530029395

Starter Spring
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

58

Poulan 530027569

Starter Handle

$6.49

$

Usually ships in 3-10 days

0

59

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 19

0

60

Poulan 530014022

Pulley Housing Ass'y. (114 Only)

$

$

Not available

61

Poulan 530094189

Clutch Washer (114 Only)

$6.99

$

In Stock, only 1 left!

0

62

Poulan 530069254

Clutch (114 Only)

$

$

Not available

63

Poulan 530015796

Washer (114 Only)

$3.99

$

Usually ships in 3-10 days

0

64

Poulan 530001733

Nut (114 Only)

$

$

Not available

65

Poulan 530014023

Clutch Housing (114 Only)

$

$

Not available

66

Poulan 530027511

Spacer (114 Only)

$8.99

$

Usually ships in 3-10 days

0

67

Poulan 530347987

Washer (114 Only)
(Superseded to 530016030)

$3.99

$

Usually ships in 3-10 days

0

68

Poulan 530015770

Screw

$

$

Not available

69

Poulan 530015769

Screw

$3.99

$

Usually ships in 3-10 days

0

70

Poulan 530015496

Screw

$3.99

$

Usually ships in 3-10 days

0

71

Poulan 530027523

Retainer

$7.49

$

In Stock, only 2 left!

0

72

Poulan 530015768

Locknut

$6.49

$

In Stock, only 2 left!

0

73

Poulan 530069276

Engine Gasket Kit (Inc. 12,17,36)

$

$

Not available

74

Poulan 952701612

Spark Arrestor Kit

$

$

Not available

75

Poulan 530027953

Drive Coupling (111 Only)

$

$

Not available

76

Poulan 530015828

Washer (111 Only)

$4.99

$

Usually ships in 3-10 days

0

77

Poulan 530027525

Spacer (111 Only)

$0.99

$

In Stock, only 1 left!

0

78

Poulan 530016080

Screw

$6.49

$

Usually ships in 3-10 days

0

80

Poulan 530029012

Instruction Decal, Type 1

$2.49

$

Usually ships in 3-10 days

0

80

Poulan 530047451

Instruction Decal, 114 Type 3

$

$

Not available

81

Poulan 530038874

Primer Bulb Ass'y 114 Type 2-3

$

$

Not available

82

Poulan 530016091

Screw-Primer 114 Type 2-3

$4.99

$

In Stock, only 1 left!

0

83

Poulan 530015882

Screw-Starter Sprg. 114 Type 3

$

$

Not available

Poulan 530014052

Ass'y. Parts Bag, Model 111

Note: Not Shown.

$

$

Not available

Poulan 530014708

Ass'y. Parts Bag, Model 114

Note: Not Shown.

$

$

Not available

Ass'y. Parts Bag, Operator Manual

Note: Not Shown.

$

$

Not available

Poulan 530068774

Ass'y. Parts Bag, Model 111

Note: Not Shown.

$

$

Not available

Poulan 530082313

Ass'y. Parts Bag, Model 114 Type 2

Note: Not Shown.

$

$

Not available

Poulan 530083206

Ass'y. Parts Bag, Model 114 Type 3

Note: Not Shown.

$

$

Not available
