PP 105G30 (960220028-00) - Poulan Lawn Tractor (2016-07) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

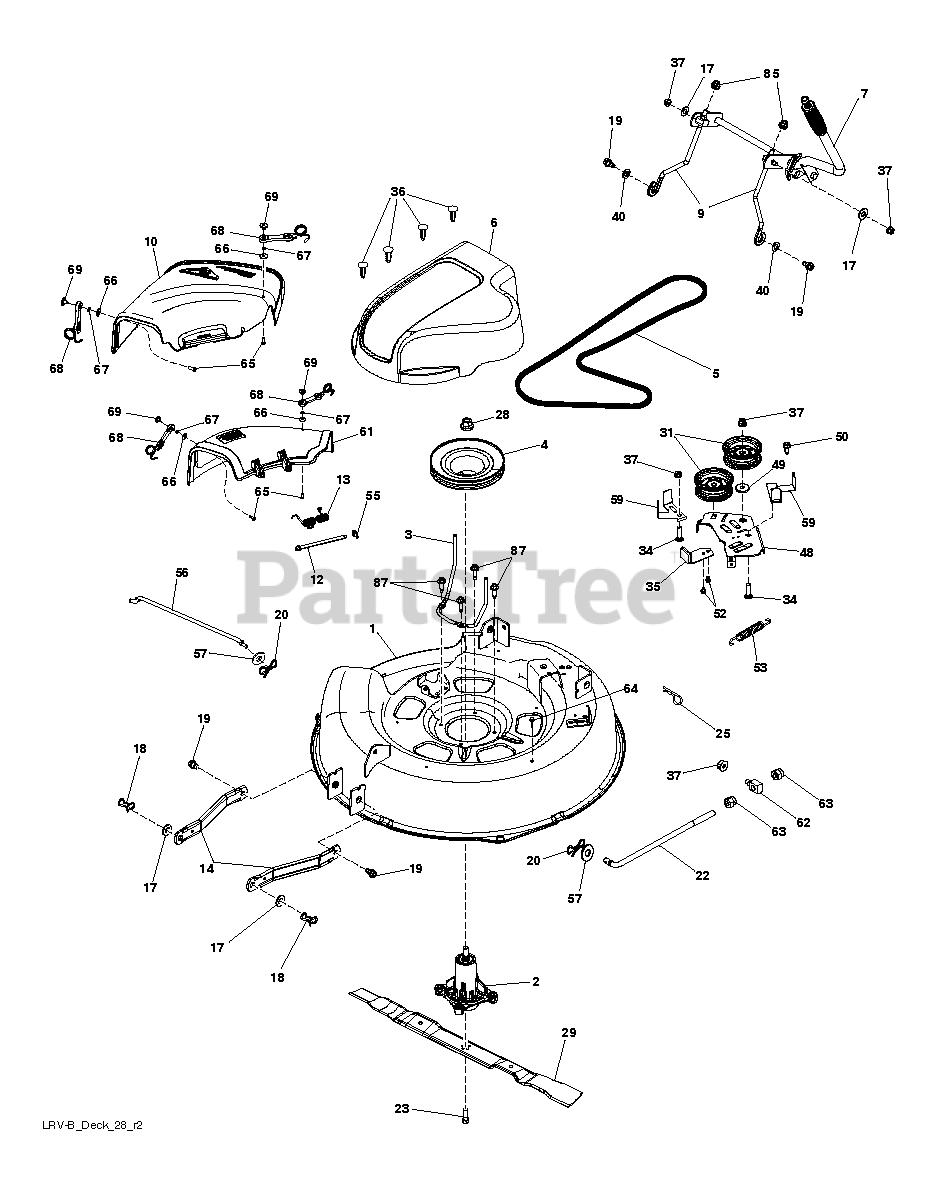

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Poulan 584468302

DECK.PNT.LRV.30

$227.99

$

Usually ships in 3-10 days

0

2

Poulan 587253301

Mandrel Assembly, Non-Greaseable
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

3

Poulan 584444502

Belt Keeper, Gen2 Mandrel

$6.49

$

In Stock, only 1 left!

0

4

Poulan 584444402

Mandrel Pulley, LRV GENS

$12.99

$

Usually ships in 3-10 days

0

5

Poulan 584293701

Belt, 30

$40.99

$

In Stock, only 1 left!

0

6

Poulan 532436863

COVER.MANDREL.30".LRV.(B)

$66.99

$

Usually ships in 3-10 days

0

7

Poulan 586580901

LIFT.SUBASM.DECK

$74.99

$

Usually ships in 3-10 days

0

9

Poulan 582342701

LINK.ASM.ADJUSTABLE

$20.99

$

In Stock, only 1 left!

0

10

Poulan 532436456

DEFLECTOR.30".LRV.(B)

$72.99

$

Usually ships in 3-10 days

0

12

Poulan 532436647

PIN.HINGE
(Superseded to 594056601)

$2.49

$

Usually ships in 3-10 days

0

13

Poulan 532437462

SPRING.DOUBLE.TORSION.SPRING

$8.99

$

Usually ships in 3-10 days

0

14

Poulan 587581702

FRONT.DECK.LINK.PNT

$20.99

$

Usually ships in 3-10 days

0

17

Poulan 819191912

WASHER.CLEAR.ZINC

$6.49

$

In Stock, Qty 20+

0

18

Poulan 532194209

PIN.COTTER.7/16.BOW TI.

$3.99

$

In Stock, only 1 left!

0

19

Poulan 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

20

Poulan 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

22

Poulan 584977502

LINK.LRVB.30".FRONT.DECK.ADJ

Note: (584977503) LINKAGE

$11.99

$

Usually ships in 3-10 days

0

23

Poulan 584309301

Screw, 7/16 X 20 X 1"

$3.99

$

In Stock, only 2 left!

0

25

Poulan 532124788

(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

28

Poulan 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

29

Poulan 532419273

BLADE, MULCH.LRV30

$34.99

$

In Stock, only 3 left!

0

31

Poulan 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$

In Stock, Qty 9

0

34

Poulan 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

35

Poulan 532199477

(Superseded to 532199478)

$17.99

$

In Stock, Qty 16

0

36

Poulan 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

37

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

40

Poulan 819171616

(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

48

Poulan 586843601

ARM.CLUTCHING.ADJUSTABLE

$22.99

$

Usually ships in 3-10 days

0

49

Poulan 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

50

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

52

Poulan 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

0

53

Poulan 585049101

SPRING.LRVB.CLUTCH.ARM

$4.99

$

Usually ships in 3-10 days

0

55

Poulan 532437988

E-RING.5/16"

$9.49

$

Usually ships in 3-10 days

0

56

Poulan 532404851

ROD.ANTI.SWAY.48/54"K4

$26.99

$

In Stock, only 2 left!

0

57

Poulan 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

59

Poulan 532436858

GUARD.TUV.IDLER.42

$6.49

$

In Stock, only 1 left!

0

61

Poulan 532436455

COVER.MULCH.30".LRV.(B)

$

$

Not available

62

Poulan 532176205

TRUNNION

$7.99

$

In Stock, Qty 5

0

63

Poulan 532175994

NUT, LIFT LINK 7/16-20
(Superseded to 589464902)

$4.99

$

In Stock, Qty 5

0

64

Poulan 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

65

Poulan 871081010

SCREW

$6.49

$

Usually ships in 3-10 days

0

66

Poulan 819061216

WASHER

$4.99

$

Usually ships in 3-10 days

0

67

Poulan 810071000

LOCKWASHER

$4.99

$

In Stock, Qty 11

0

68

Poulan 532160793

LATCH ASSY

$

$

Not available

69

Poulan 532002029

NUT.WELD.#10-24 (2 2)
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

85

Poulan 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

87

Poulan 584953901

Hex Washer Head Bolt, .313-18 X 1.19

$4.99

$

In Stock, Qty 16

0
