PP 105G30 (960220027-01) - Poulan Lawn Tractor (2016-08) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

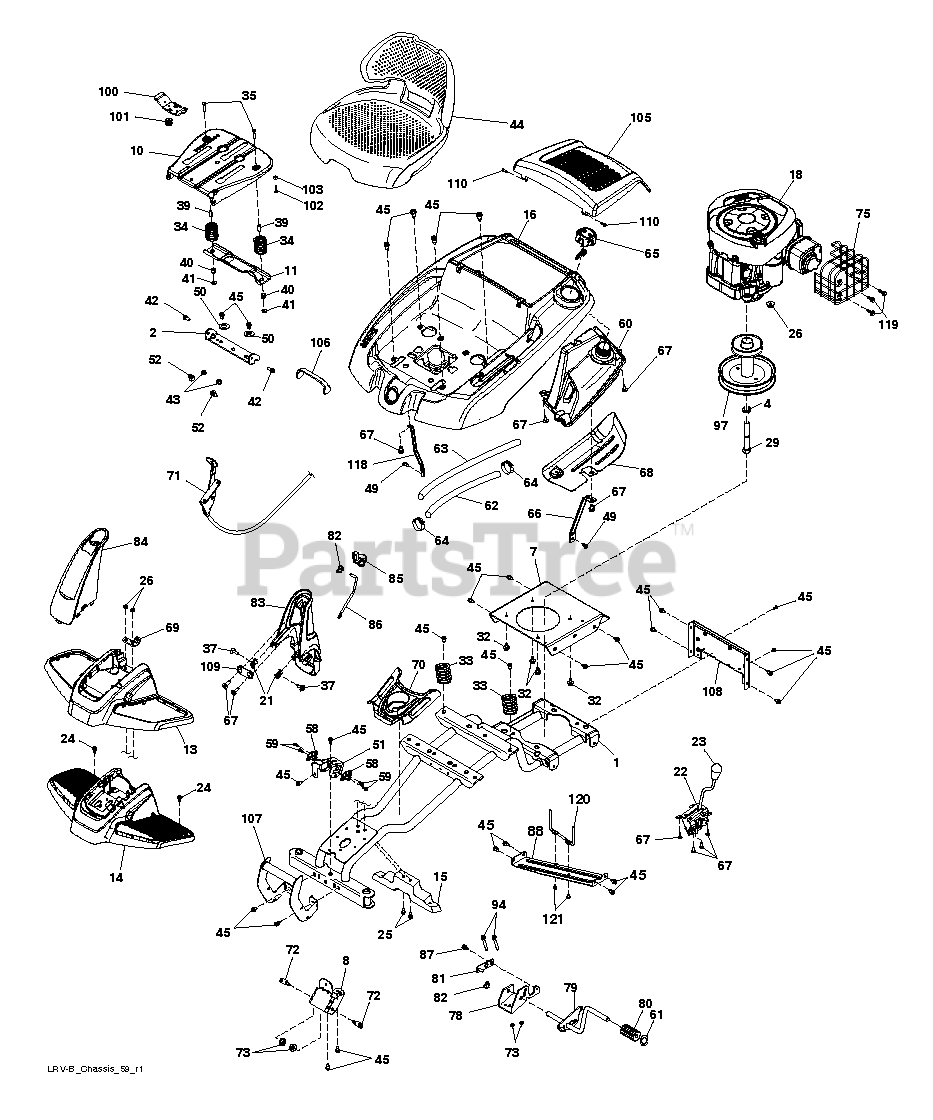

CHASSIS ENCLOSURES Parts Diagram

  • Title

1

Poulan 532436176

(Superseded to 583508401)

$250.99

$

Usually ships in 3-10 days

0

2

Poulan 532180166

BRKT.PIVOT.FENDER

$13.99

$

In Stock, only 1 left!

0

4

Poulan 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

7

Poulan 532436177

(Superseded to 583508501)

$62.99

$

Usually ships in 3-10 days

0

8

Poulan 587581801

BRACKET.SUSP.CHAS.FR.LRV

$6.99

$

Usually ships in 3-10 days

0

10

Poulan 532441805

PAN.ASM.SEAT.SHORT.SLD.ADJ.TEX

$56.99

$

Usually ships in 3-10 days

0

11

Poulan 532199370

BRKT.MNT.OPC.SW.SEAT.

$11.99

$

Usually ships in 3-10 days

0

13

Poulan 532442071

COVER.AESTH.FOOTREST.MS428

$37.99

$

Usually ships in 3-10 days

0

14

Poulan 532442075

FOOTREST.STRUCTURAL.

$109.99

$

Usually ships in 3-10 days

0

15

Poulan 532442069

SUPPORT. FOOTREST.LRV.MS428

$

$

Not available

16

Poulan 584976914

PANEL CONTROL ASM.LRVB.GEARDRV

$265.99

$

Usually ships in 3-10 days

0

18

Poulan 000000000

Note: ENGINE B S 21R707-0126-G1 (582863301)

$

$

Not available

21

Poulan 585523501

Speed Nut, U-Type

$5.99

$

Usually ships in 3-10 days

0

22

Poulan 586041901

Clutch Deck Assembly, LRVB

$145.99

$

In Stock, only 2 left!

0

23

Poulan 532149846

KNOB.OVAL.CUSTOM.BLACK

$13.99

$

In Stock, only 1 left!

0

24

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

25

Poulan 872140424

BOLT.CARRIAGE

$5.99

$

Usually ships in 3-10 days

0

26

Poulan 873510400

NUT
(Superseded to 873640400)

$

$

Not available

29

Poulan 501606901

Hex Bolt, 7/16-20 X 3.0 Gr5 Yellow

$4.99

$

Usually ships in 3-10 days

0

32

Poulan 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

33

Poulan 587613301

Compression Spring, Seat Black

$6.99

$

In Stock, only 4 left!

0

34

Poulan 532123740

SPRING COMPRESSED

$6.49

$

Usually ships in 3-10 days

0

35

Poulan 872050412

BOLT.ROUND.HEAD.SQUARE.NECK

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 532141841

SCREW.PAN.HEAD.#10

$7.49

$

In Stock, only 2 left!

0

39

Poulan 532134300

SPACER SPLIT 28X.96

$7.49

$

Usually ships in 3-10 days

0

40

Poulan 532121248

BUSHING

$6.49

$

Usually ships in 3-10 days

0

41

Poulan 532123976

NUT T
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

42

Poulan 587907801

Shoulder Bolt, 5/16-18 X 5/8

$4.99

$

In Stock, Qty 8

0

43

Poulan 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

44

Poulan 532436612

COMFORT.SEAT.ASSEMBLY

$206.99

$

Usually ships in 3-10 days

0

45

Poulan 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

49

Poulan 817060516

SCREW 5/16-18X1

$6.49

$

Usually ships in 3-10 days

0

50

Poulan 819132016

(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

51

Poulan 585920302

STEERING.BRACKET.PNT

$13.99

$

Usually ships in 3-10 days

0

52

Poulan 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

58

Poulan 588452501

Rack Bushing, LRVB

$6.99

$

Usually ships in 3-10 days

0

59

Poulan 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

60

Poulan 532437856

LRVB.FUEL.TANK.ASSEMBLY.EPA
(Superseded to 532437801)

$121.99

$

Usually ships in 3-10 days

0

61

Poulan 587015702

NUT.PUSH.50".BLACK

$3.49

$

Usually ships in 3-10 days

0

62

Poulan 532400414

(Superseded to 532401135)

$27.99

$

Usually ships in 3-10 days

0

63

Poulan 532414119

RP PURGE LINE
(Superseded to 587044580)

$11.99

$

In Stock, only 1 left!

0

64

Poulan 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

65

Poulan 581176101

CAP.FUEL.2 WAY VENT

$53.99

$

In Stock, only 1 left!

0

66

Poulan 532436606

NO LONGER AVAILABLE
(Superseded to 583509701)

$6.99

$

Usually ships in 3-10 days

0

67

Poulan 532421756

SCREW.#10 X 0.500
(Superseded to 596434001)

$3.99

$

Usually ships in 3-10 days

0

68

Poulan 532439851

$22.99

$

Usually ships in 3-10 days

0

69

Poulan 532437427

(Superseded to 583519101)

$5.99

$

Usually ships in 3-10 days

0

70

Poulan 532442068

CONSOLE.CENTER.CUPHOLDER

$13.99

$

Usually ships in 3-10 days

0

71

Poulan 532437857

(Superseded to 583524501)

$62.99

$

Usually ships in 3-10 days

0

72

Poulan 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

73

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

75

Poulan 585883001

GUARD.LRVB.MUFFLER

$26.99

$

In Stock, only 4 left!

0

78

Poulan 532437056

(Superseded to 583515701)

$22.99

$

Usually ships in 3-10 days

0

79

Poulan 532437057

(Superseded to 583515801)

$11.99

$

Usually ships in 3-10 days

0

80

Poulan 532429693

COVER.PEDAL.BRAKE.LRV

$8.99

$

In Stock, only 1 left!

0

81

Poulan 532437374

(Superseded to 583518001)

$6.49

$

Usually ships in 3-10 days

0

82

Poulan 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, only 1 left!

0

83

Poulan 587686402

COLUMN.R.STEERING.ASM

$

$

Not available

84

Poulan 582702001

COVER.ASM.BOOT.STEER.FRT LRVB

$

$

Not available

85

Poulan 532437660

(Superseded to 583521701)

$6.49

$

Usually ships in 3-10 days

0

86

Poulan 532438762

(Superseded to 583534101)

$

$

Not available

87

Poulan 532165492

BOLT.SHOULDER.5/16-18X

$10.99

$

In Stock, only 3 left!

0

88

Poulan 581514002

BRACE.LOW.LRVB.PMST.PLATEX431

$

$

Not available

94

Poulan 874490548

BOLT HEX FLGHD 5/16-18X3 GR. 5

$6.49

$

In Stock, only 1 left!

0

97

Poulan 581438001

PULLEY.ENGINE.LRVB.PMST

$68.99

$

Usually ships in 3-10 days

0

100

Poulan 532197661

HANDLE.SLIDE.SEAT.TEX.BLACK
(Superseded to 595088102)

$5.99

$

In Stock, Qty 7

0

101

Poulan 532198200

SPRING.LATCH.SEAT.TEX

$6.49

$

Usually ships in 3-10 days

0

102

Poulan 874760612

BOLT

$4.99

$

In Stock, only 3 left!

0

103

Poulan 819133812

WASHER 13/32 X 2-3/8 X 12GA
(Superseded to 583789501)

$

$

Not available

105

Poulan 532447992

Engine Cover, Lrvb Pattern 2.X428

$51.99

$

Usually ships in 3-10 days

0

106

Poulan 532436834

STRAP.BATTERY.LRVB

$8.99

$

Usually ships in 3-10 days

0

107

Poulan 532442074

WELDMENT.FRT.PNT.BRUSHGAD.LR

$27.99

$

Usually ships in 3-10 days

0

108

Poulan 581525202

COVER.REAR.LRVB.PMSTX431

$

$

Not available

109

Poulan 532439008

(Superseded to 583537101)

$2.99

$

Usually ships in 3-10 days

0

110

Poulan 532422145

(Superseded to 583759801)

$

$

Not available

118

Poulan 532445002

$17.99

$

Usually ships in 3-10 days

0

119

Poulan 586422701

SCREW NO 8-18 X 1/2;HEX WASHER

$

$

Not available

120

Poulan 588064602

KEEPER.PNT.GEARDRV.LRV.ENG.BLT

$6.99

$

Usually ships in 3-10 days

0

121

Poulan 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days
