PP 1036S - Poulan Lawn Tractor (1993) MOWER LIFT LEVER Parts Diagram

Lawn Tractor

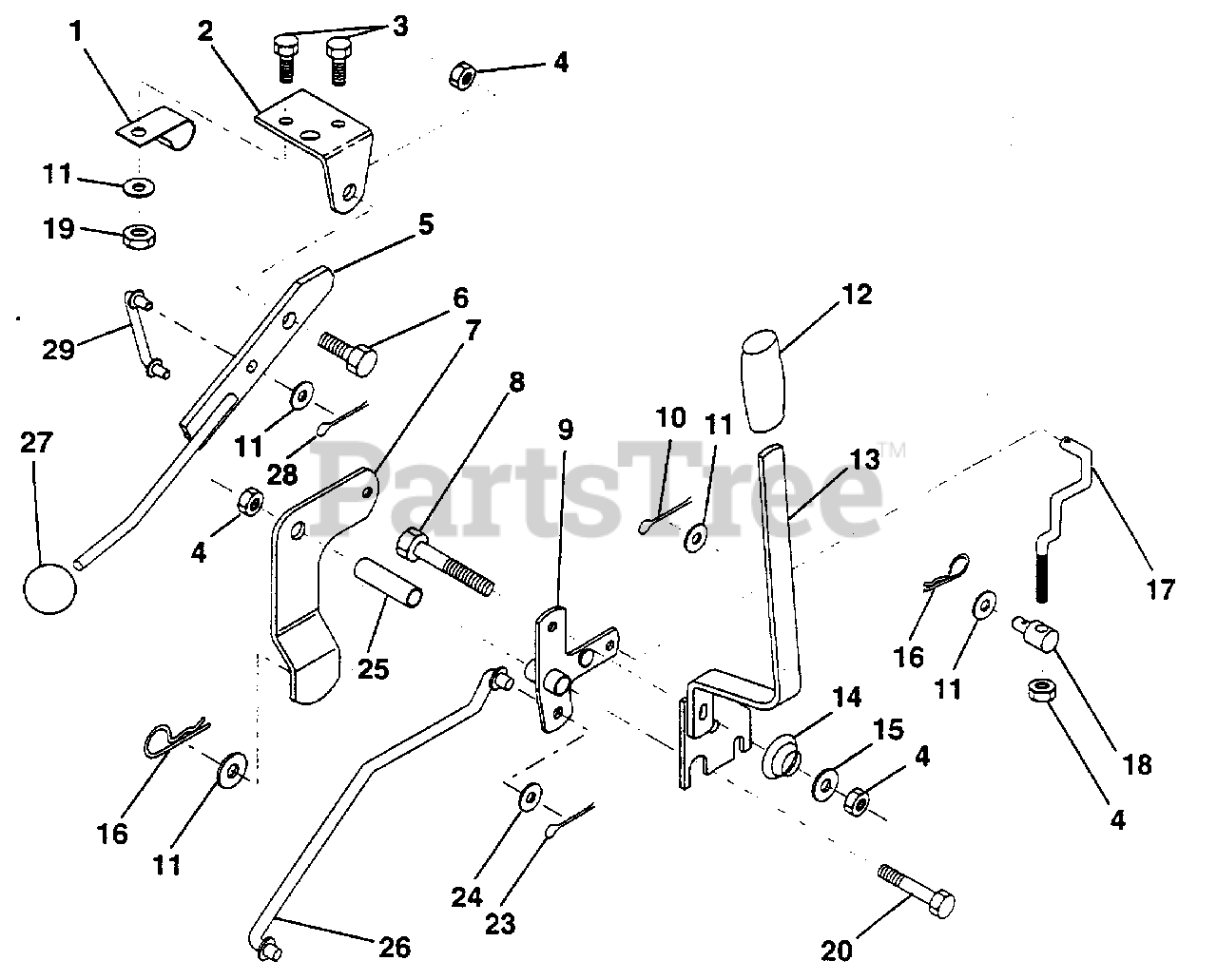

MOWER LIFT LEVER Parts Diagram

  • Title
1

Electrolux/AYP 532126470

Clip, Insulated

$3.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532122018

Bracket, Mower Clutch

$

$

Not available

3

Electrolux/AYP 874780408

Bolt, Fin Hex 1/4-20 UNC x 1/2 Gr. 5
(Superseded to 74780408)

$3.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 873680600

Nut, Crownlock 3/8-16 UNC
(Superseded to 596322601)

$3.99

$

In Stock, Qty 9

0

5

Electrolux/AYP 532123417

Assembly, Clutch Lever
(Superseded to 532145187)

$

$

Not available

6

Electrolux/AYP 532106451

Bolt, Shoulder

$2.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532135371

Assembly, Mower Clutch Arm

$

$

Not available

8

Electrolux/AYP 874760636

Bolt, Hex 3/8-16 UNC x 2-1/4

$6.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532121930

Assembly, Bracket Lift

$11.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 819131316

Washer 13/32 x 13/16 x 16 Ga.

$4.99

$

In Stock, Qty 5

0

12

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532127028

Assembly, Lift Handle

$

$

Not available

14

Electrolux/AYP 532123496

Spring, Compression

$2.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 819131212

Washer 13/32 x 3/4 x 12 Ga.
(Superseded to 19131212)

$

$

Not available

16

Electrolux/AYP 532124961

Retainer, Spring
(Superseded to 532004921)

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532127359

Link, Front Lift

$24.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532133205

Trunnion, Threaded 3/8-16
(Superseded to 532142028)

$

$

Not available

19

Electrolux/AYP 873680400

Nut, Crownlock 1/4-20
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

20

Electrolux/AYP 874760644

Bolt, Fin Hex 3/8-16 UNC x 2-3/4

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 876020416

Pin, Cotter 1/8 x 1

$3.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 819171616

Washer 17/32 x 1 x 16 Ga.
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

25

$

$

Not available

26

Electrolux/AYP 532121934

Rod, Mower Lift
(Superseded to 532141470)

$

$

Not available

$7.99

$

In Stock, Qty 5

0

28

Electrolux/AYP 876020312

Pin, Cotter 3/32 x 3/4
(Superseded to 876020308)

$

$

Not available

29

Electrolux/AYP 532131655

Link, Mower Clutch

$

$

Not available
