PP 1036 SA - Poulan Pro Lawn Tractor SECTOR GEAR / AXLE SUPPORT Parts Diagram

Lawn Tractor

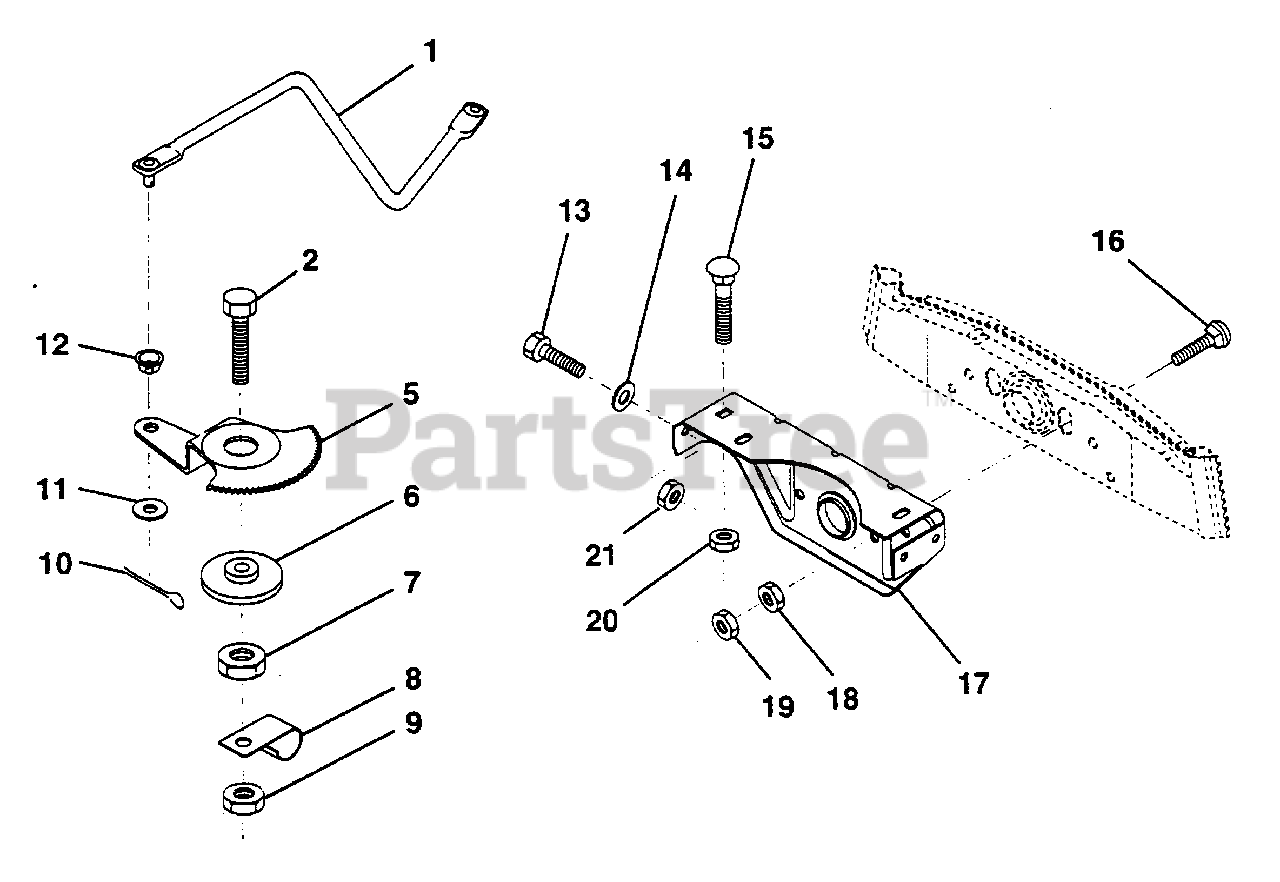

SECTOR GEAR / AXLE SUPPORT Parts Diagram

  • Title
1

Poulan 532132566

Link, Drag (AYP part number)

$46.99

$

In Stock, only 1 left!

0

2

Poulan 874780828

Bolt, Fin Hex 1/2-13 x 1-3/4 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

5

Poulan 532121926

Gear, Sector (AYP part number)

$

$

Not available

6

Poulan 532121927

Bushing (AYP part number)

$

$

Not available

7

Poulan 873030800

Nut, Heavy Hex Top Lock 1/2-13 UNC (AYP part number)
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

8

Poulan 532126472

Clip, Insulated (AYP part number)

$

$

Not available

9

Poulan 873680800

Nut, Crownlock 3/8-16 (AYP part number)
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

10

Poulan 876020412

Pin, Cotter 1/8 x 3/4 (AYP part number)
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

11

Poulan 819131316

Washer, 13/32 x 13/16 x 16 Ga. (AYP part number)

$4.99

$

In Stock, Qty 5

0

12

Poulan 532126847

Bushing (AYP part number)

$5.99

$

In Stock, only 2 left!

0

13

Poulan 874760512

Bolt, Hex Hd. 5/16-18 UNC x 3/4 (AYP part number)
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

14

Poulan 819111416

Washer 11/32 x 7/8 x 16 Ga. (AYP part number)
(Superseded to 734116541)

$5.99

$

Usually ships in 3-10 days

0

15

Poulan 872110606

Bolt, Carriage 3/8-16 UNC x 3/4 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

16

Poulan 872140622

Bolt, Carriage (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 532121912

Support, Front Axle (AYP part number)

$

$

Not available

18

Poulan 873220600

Nut, Fin Hex 3/8-16 UNC (AYP part number)

$6.49

$

In Stock, only 2 left!

0

19

Poulan 873930600

Nut, Centerlock 3/8-16 UNC (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

20

Poulan 873680600

Nut, Crownlock 3/8-16 UNC
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

21

Poulan 873680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0
