PP 1036 S - Poulan Pro Lawn Tractor DASH Parts Diagram

Lawn Tractor

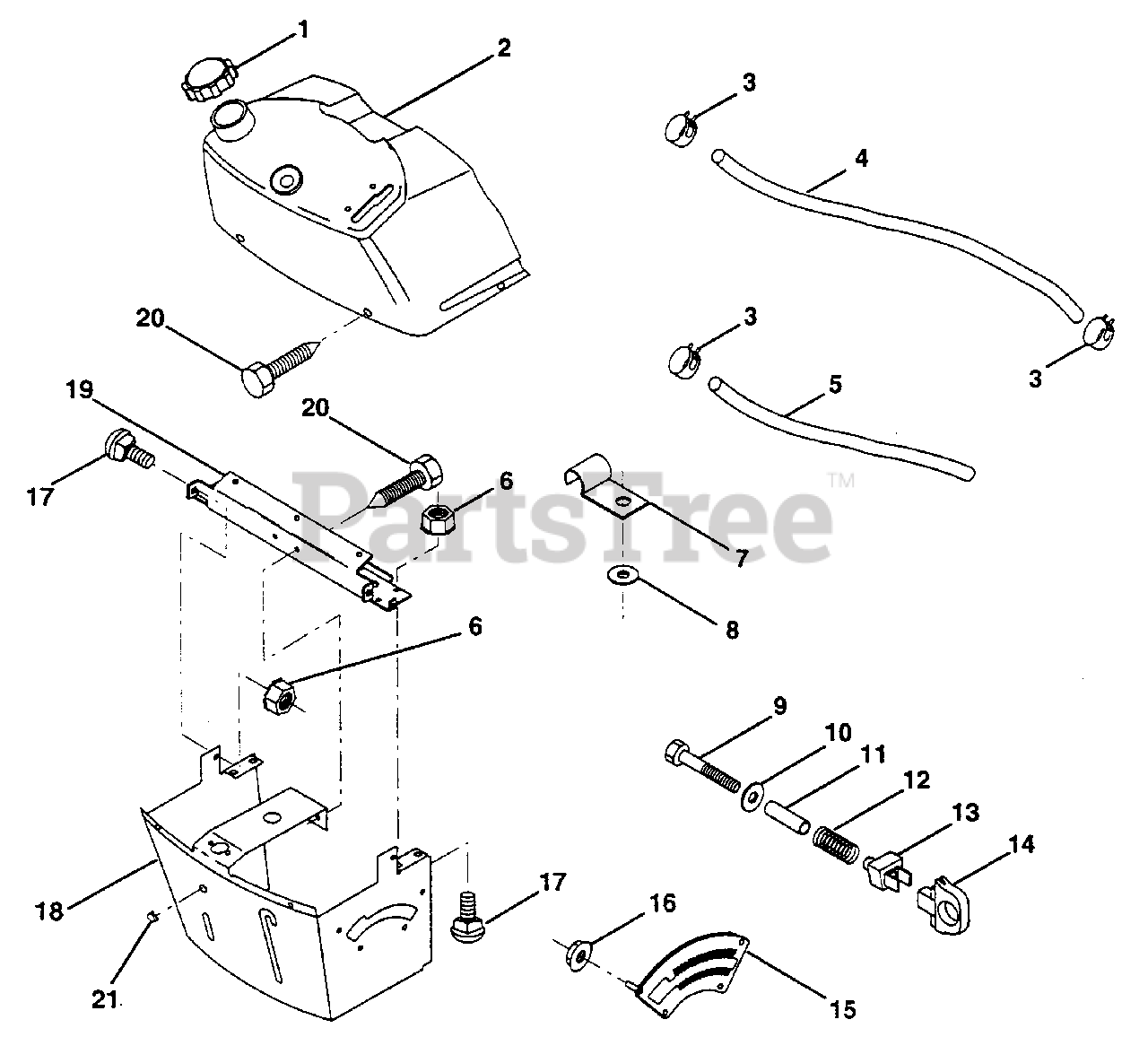

DASH Parts Diagram

  • Title
1

Poulan 532132734

Cap, Fuel (AYP part number)

$

$

Not available

2

Poulan 532138393

Assembly, Dash & Fuel Tank (AYP part number)

$

$

Not available

3

Poulan 532123487

Clamp, Hose (AYP part number)

$7.49

$

In Stock, only 4 left!

0

4

Poulan 532008544

Line, Fuel (AYP part number)
(Superseded to 532000295)

$

$

Not available

5

Poulan 532008548

Line, Fuel (AYP part number)

$7.99

$

In Stock, only 1 left!

0

6

Poulan 873510400

Nut, Hex, Keps 1/4-20 (AYP part number)
(Superseded to 873640400)

$

$

Not available

7

Poulan 532124996

Clip, Fuel Line (AYP part number)
(Superseded to 532002751)

$

$

Not available

8

Poulan 819091216

Washer 9/32 x 3/4 x 16 Ga. (AYP part number)
(Superseded to 596204201)

$3.99

$

In Stock, only 1 left!

0

9

Poulan 874760428

Bolt, Hex, Fin 1/4-20 x 1-3/4 (AYP part number)
(Superseded to 874760432)

$9.49

$

Usually ships in 3-10 days

0

10

Poulan 819091413

Washer 11/32 x 11/16 x 16 Ga. (AYP part number)
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 532121249

Spacer, Split (AYP part number)

$6.49

$

In Stock, only 2 left!

0

12

Poulan 532003720

Spring (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

13

Poulan 532126450

Clip, Height Adjustment (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

14

Poulan 532126115

Knob, Height Stop (AYP part number)
(Superseded to 126115X)

$

$

Not available

15

Poulan 532122023

Adjustment, Quadrant Height (AYP part number)

$9.49

$

Usually ships in 3-10 days

0

16

Poulan 532124346

Nut, Self-Threading 3/16-18 (AYP part number)

$7.99

$

In Stock, only 1 left!

0

17

Poulan 872110404

Bolt, Carriage 1/4-20 x 1/2 Gr. 5 (AYP part number)

$9.49

$

Usually ships in 3-10 days

0

18

Poulan 532130745

Support Assembly, Dash (AYP part number)

$

$

Not available

19

Poulan 532134744

Brace, Cross (AYP part number)

$

$

Not available

20

Poulan 818000408

Screw, Self-Tapping 1/4-20 x 1/2

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 532134014

Plug, Dome Black (AYP part number)

$

$

Not available
