PP 025 - Poulan String Trimmer, Type 2 (2008-12) Shaft - Type 2 Parts Diagram

String Trimmer, Type 2

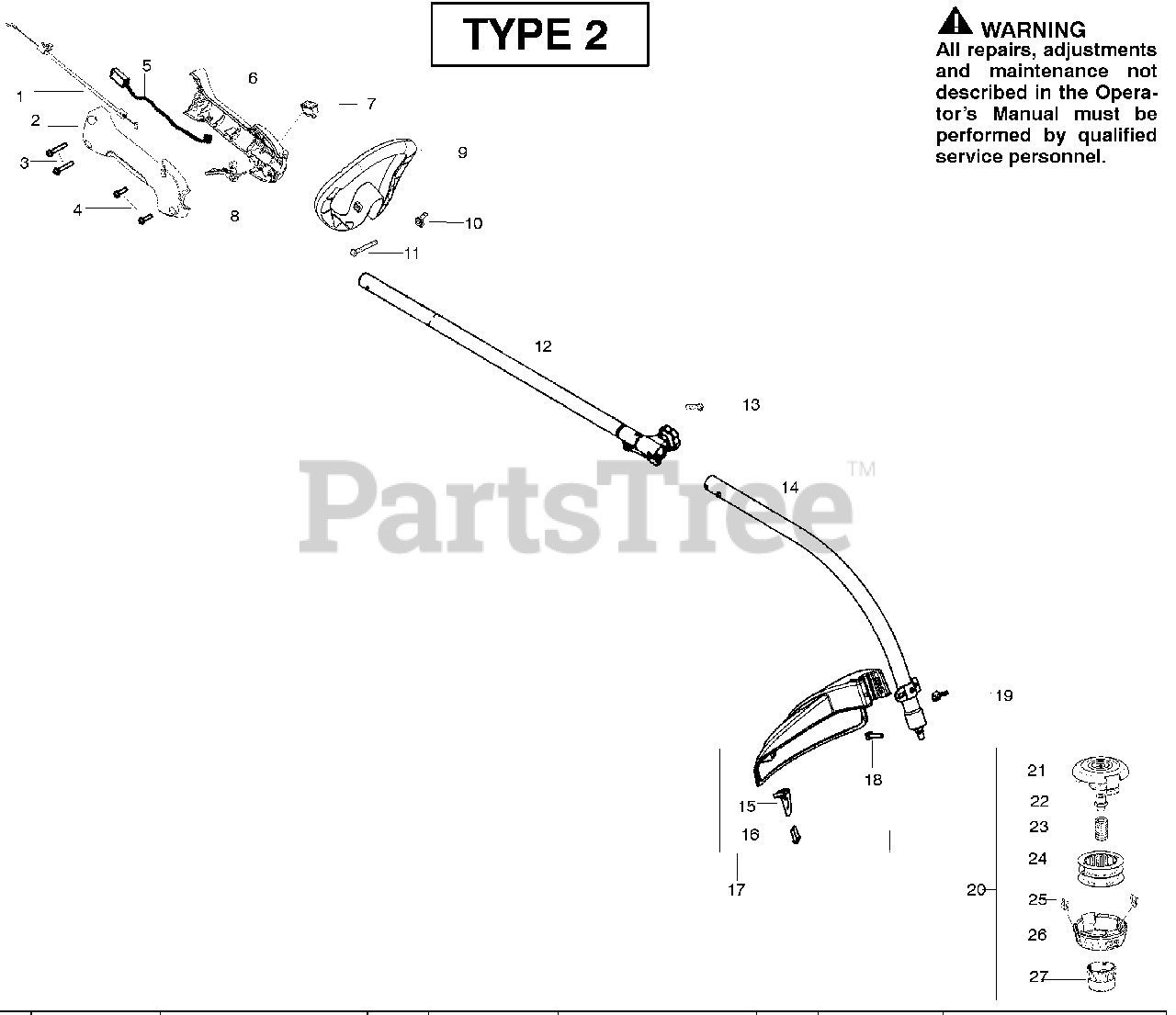

Shaft - Type 2 Parts Diagram

  • Title
1

Electrolux/AYP 530059759

Assy-Throttle Cable

$17.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 530057541

Hsg.-Throttle (RH)

$12.99

$

In Stock, only 2 left!

0

$6.49

$

In Stock, only 1 left!

0

$6.49

$

In Stock, Qty 17

0

$8.99

$

In Stock, only 1 left!

0

6

Electrolux/AYP 530059760

Hsg. Throttle (LH)

$9.99

$

In Stock, only 1 left!

0

7

Electrolux/AYP 545030601

Kit-Switch (momentary)
(Superseded to 545049301)

$10.99

$

In Stock, Qty 10

0

8

Electrolux/AYP 545077601

Trigger-Throttle
(Superseded to 530049107)

$

$

Not available

9

Electrolux/AYP 530057546

Handle-Assist
(Superseded to 530058583)

$6.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

$4.99

$

In Stock, only 4 left!

0

12

Electrolux/AYP 530071791

Kit-Upper Shaft
(Superseded to 575260201)

Note: (Incl. flex, clamp & 13)

$37.99

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 530071788

Kit-Lower Shaft

$66.99

$

In Stock, only 2 left!

0

15

$

$

Not available

$6.49

$

In Stock, Qty 17

0

17

Electrolux/AYP 530071802

Kit-Shield Assy.

Note: (Incl. 15,16,18,19)

$26.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 1 left!

0

19

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

20

Electrolux/AYP 537419205

Assy-TNG7
(Superseded to 537419214)

Note: (Incl. 21,22,23,24,25,26,27)

$

$

Not available

$11.99

$

Usually ships in 3-10 days

0

$11.99

$

In Stock, only 4 left!

0

23

Electrolux/AYP 537338801

Spring P25
(Superseded to 537338801)

$6.49

$

In Stock, only 2 left!

0

24

Electrolux/AYP 545080801

Assy-Wound Spool

$

$

Not available

25

Electrolux/AYP 537419701

Eyelet
(Superseded to 545003365)

$9.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 537419401

Cover
(Superseded to 545003365)

$9.49

$

In Stock, only 1 left!

0

27

Electrolux/AYP 537419601

Knob P25
(Superseded to 537419601)

$6.99

$

In Stock, Qty 20+

0

28

Electrolux/AYP 545177327

Operator Manual

Note: Not Shown

$

$

Not available

29

Electrolux/AYP 545209101

Decal-Shaft Warning

Note: Not Shown

$

$

Not available

30

Electrolux/AYP 545167703

Decal-Upper Shaft

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0
