PO GT 20T48ST A - Poulan Lawn Tractor (2003) Steering Assembly Parts Diagram

Lawn Tractor

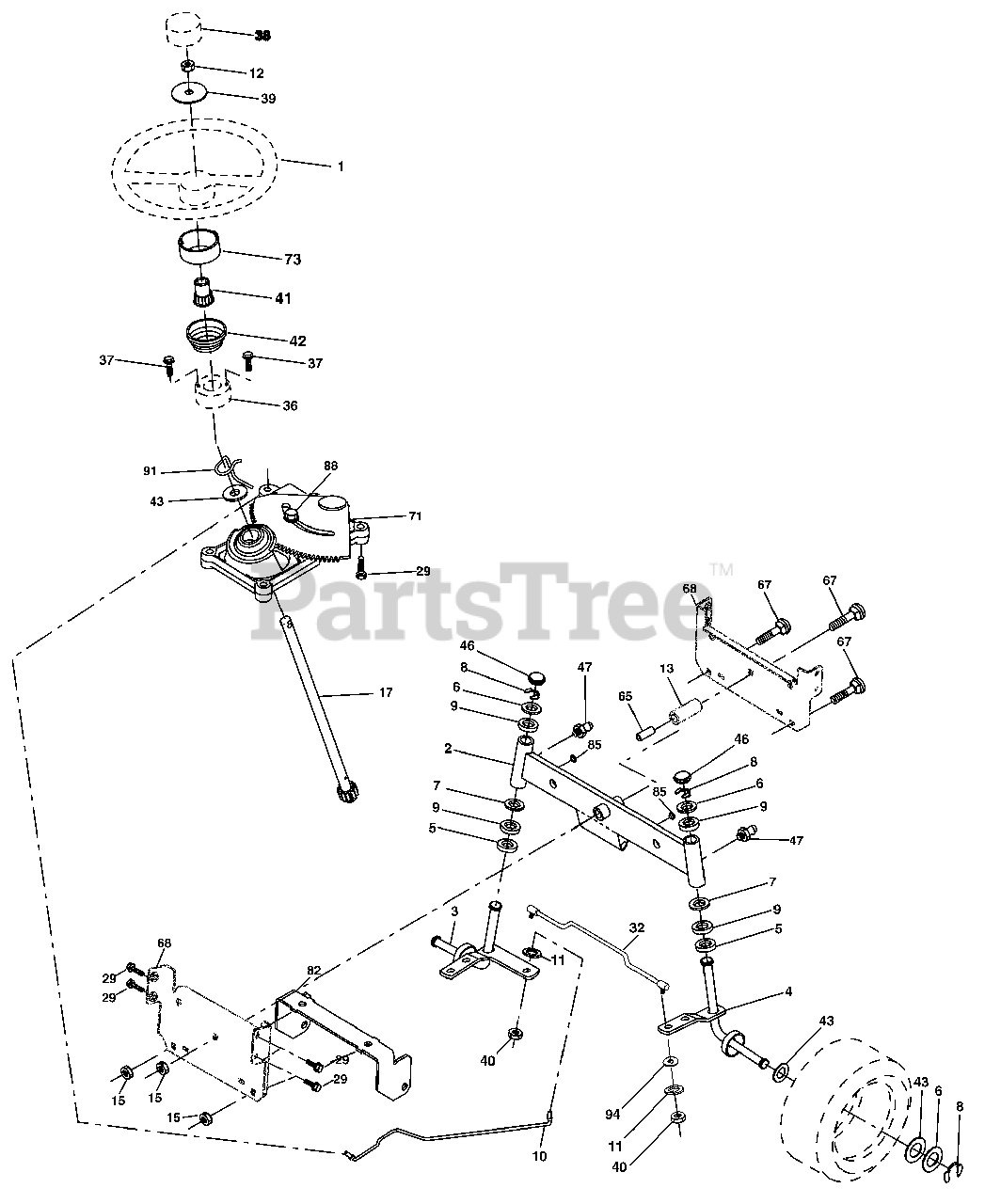

Steering Assembly Parts Diagram

  • Title
1

Electrolux/AYP 184704X428

Wheel Steering
(Superseded to 532166627)

$

$

Not available

2

Electrolux/AYP 175131

Axle Asm.
(Superseded to 532418168)

$46.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 169840

Spindle Asm LH
(Superseded to 596873901)

$18.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 169839

Spindle Asm RH
(Superseded to 596873801)

$31.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 6266H

Bearing Race Thrust Harden
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

6

Electrolux/AYP 121748X

Washer 25/32 X 1-5/8 X 16 Ga
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 19272016

Washer 27/32 x 1-1/4 x 16 Ga.
(Superseded to 819272016)

$6.49

$

In Stock, only 2 left!

0

8

Electrolux/AYP 12000029

Ring Klip #t5304-75
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 3366R

Bearing
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 175121

Link Drag
(Superseded to 532175121)

$68.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 10040600

Washer Lock Hvy Hlcl Spr 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 73940800

Nut Hex Jam Toplock 1/2-20 UNF
(Superseded to 873940800)

$7.49

$

In Stock, only 4 left!

0

13

Electrolux/AYP 136518

Spacer Brg Axle Front
(Superseded to 532136518)

$9.99

$

In Stock, only 1 left!

0

15

Murray 145212

Nut Hex Flange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 177883

Shaft Asm Strg
(Superseded to 532177883)

$120.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 17060612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

32

Electrolux/AYP 180580

Rod Tie
(Superseded to 532180580)

$

$

Not available

36

Electrolux/AYP 155105

Bushing Strg
(Superseded to 532155108)

$7.99

$

In Stock, only 1 left!

0

37

Electrolux/AYP 152927

Screw TT #32.5 x 5 x 3/8 Flange
(Superseded to 532152927)

$7.49

$

In Stock, only 2 left!

0

38

Electrolux/AYP 159946X428

Cap Wheel Steer
(Superseded to 532172092)

$17.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 19182411

Washer 9/16 x 1-1/2 x 11 Ga.
(Superseded to 819182411)

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 7810H

Nut Lock Center 3/8-24 Unf
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 159945

Adaptor Wheel Strg
(Superseded to 532159945)

$

$

Not available

42

Electrolux/AYP 163888X428

Boot Steering
(Superseded to 532163888)

$

$

Not available

43

Electrolux/AYP 121749X

Washer 25/32 x 1 1/4 x 16 Ga
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 121232X

Cap Spindle Fr Top Blk
(Superseded to 532121232)

$4.99

$

In Stock, Qty 9

0

47

Electrolux/AYP 183226

Fitting Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

65

Electrolux/AYP 160367

Spacer Brace Axle
(Superseded to 532414736)

$6.99

$

In Stock, Qty 5

0

67

Electrolux/AYP 72140618

Bolt Rdhd Sqn 3/8-16 x 2-1/4
(Superseded to 872110618)

$6.49

$

In Stock, only 2 left!

0

68

Electrolux/AYP 169827

Brace, Axle
(Superseded to 532169827)

$21.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 175146

Steering Asm.
(Superseded to 532175146)

$182.99

$

In Stock, only 3 left!

0

73

Electrolux/AYP 160135X428

Extension Steering
(Superseded to 574977501)

$

$

Not available

82

Electrolux/AYP 169835

Bracket Susp Chassis Front
(Superseded to 532199978)

$15.99

$

Usually ships in 3-10 days

0

85

Electrolux/AYP 133835

Fastener Christmas Tree
(Superseded to 532133835)

$7.49

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 175118

Bolt Shoulder 7/16-20 Unc
(Superseded to 532175118)

$6.49

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 175553

Clip
(Superseded to 532175553)

$13.99

$

In Stock, only 1 left!

0

94

Electrolux/AYP 19121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0
