PO GT 20T48ST A - Poulan Lawn Tractor (2003) Engine Parts Diagram

Lawn Tractor

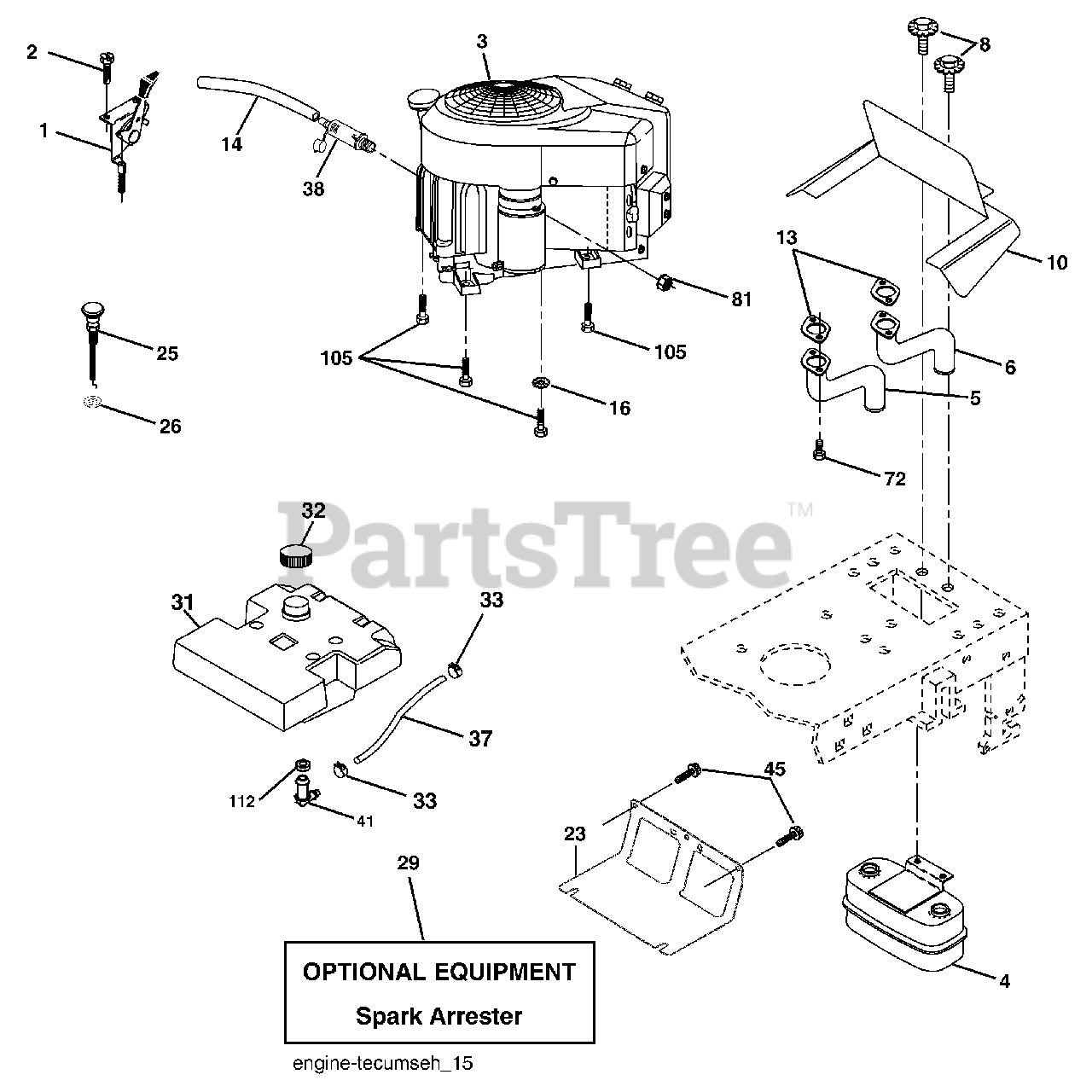

Engine Parts Diagram

  • Title
1

Electrolux/AYP 176635X428

Control Throttle
(Superseded to 532181394)

$18.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 171875

Screw Hwhd Hi-Lo #13-16 x 3/4
(Superseded to 532189747)

$17.99

$

Usually ships in 3-10 days

0

3

Engine, Tec Model TVT691

Note: (Order parts from engine mfg.)

$

$

Not available

4

Electrolux/AYP 149723

Muffler Asm Twin Lo-Tone
(Superseded to 532149723)

$74.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 174703

Pipe Exhaust LH
(Superseded to 532174703)

$

$

Not available

6

Electrolux/AYP 174704

Pipe Exhaust RH
(Superseded to 532174704)

$47.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 171877

Bolt 5/16-18 UNC x 3/4 w/Sems
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

10

Electrolux/AYP 175563

Shield Muffler
(Superseded to 532175563)

$

$

Not available

13

Muffler Gasket

Note: (Order parts from engine mfg.)

$

$

Not available

14

Electrolux/AYP 148456

Tube Drain Oil
(Superseded to 532148456)

$6.99

$

In Stock, only 3 left!

0

16

Electrolux/AYP 11050600

Washer Lock Ext Tooth 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 169837

Shield Heat
(Superseded to 532169837)

$10.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 175441X428

Choke Control
(Superseded to 532175441)

$

$

Not available

26

Electrolux/AYP 73920600

Nut, Keps 3/8-24 UNF
(Superseded to 873920600)

$3.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 137180

Kit Spark Arrestor (Flat Scrn)
(Superseded to 532137180)

$

$

Not available

31

Electrolux/AYP 179115

Tank Fuel
(Superseded to 532179115)

$

$

Not available

32

Electrolux/AYP 179124X428

Cap Asm Fuel
(Superseded to 532179124)

$37.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 123487X

Clamp Hose Black
(Superseded to 532123487)

$7.49

$

In Stock, only 1 left!

0

37

Electrolux/AYP 8543R

Line Fuel
(Superseded to 532008543)

$10.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 181654

Plug Grain Oil
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

41

Electrolux/AYP 139277

Stem Tank Fuel
(Superseded to 532139277)

$8.99

$

In Stock, Qty 7

0

45

Electrolux/AYP 17000612

Screw Hexwsh Thdr 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 183906

Screw Socket Head 5/16-18 x 1
(Superseded to 532183906)

$6.49

$

Usually ships in 3-10 days

0

81

Murray 73510400

Nut Keps Hex 1/4-20 Unc
(Superseded to 873640400)

$

$

Not available

105

Electrolux/AYP 17120616

Screw Thdrol 3/8-16 x 1
(Superseded to 817120616)

$5.99

$

In Stock, Qty 17

0

112

Electrolux/AYP 3645J

Bushing
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0
