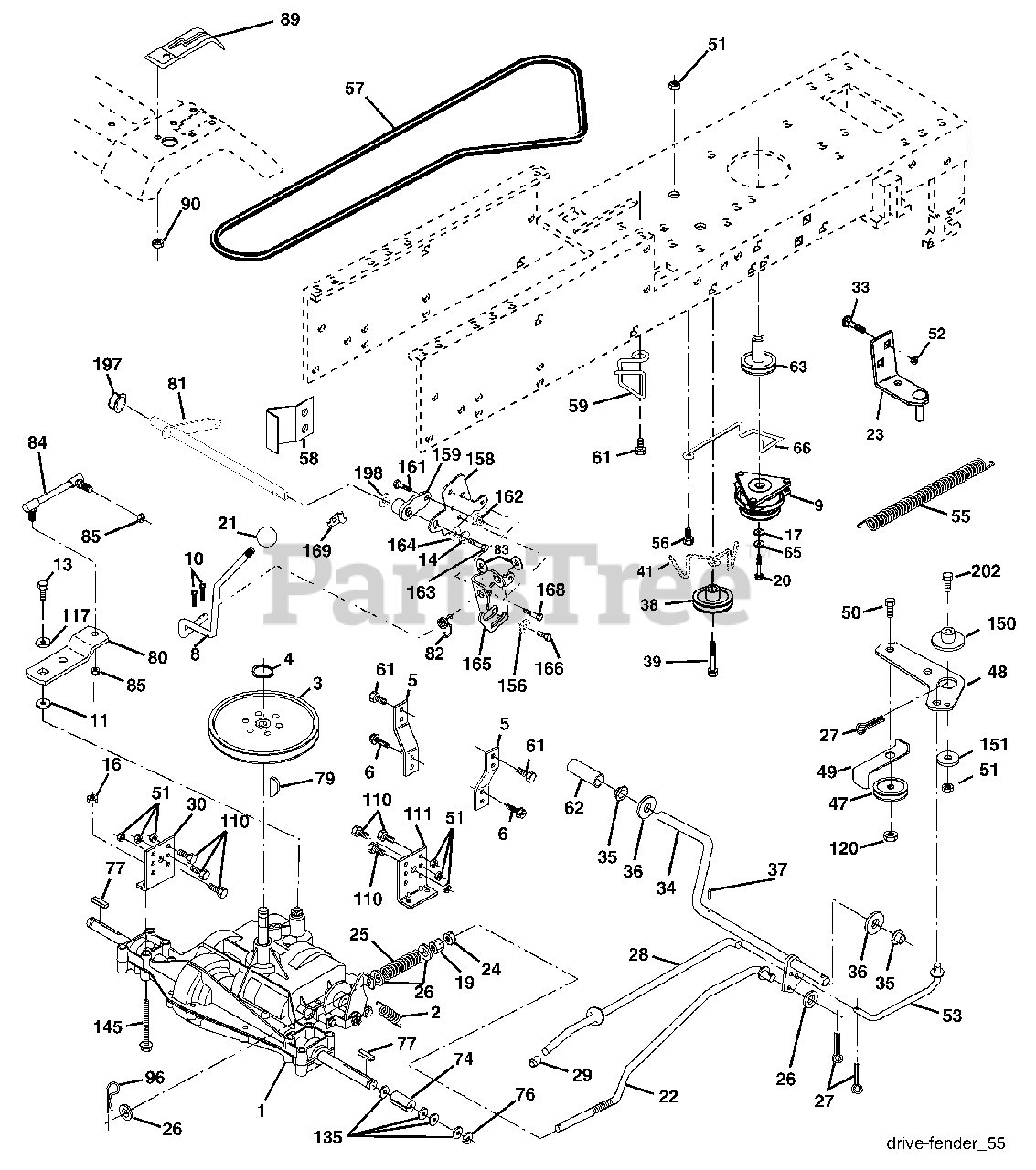

PO GT 20T48ST A - Poulan Lawn Tractor (2003) Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title

1

Transaxle, Peerless P820EHD

Note: (Order Parts From Transaxle Manufacturer)

$

$

Not available

2

Electrolux/AYP 146682

Spring Brake Return
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

3

Electrolux/AYP 121327X

Pulley Transaxle
(Superseded to 532121327)

$

$

Not available

4

Electrolux/AYP 12000004

Ring Retainer
(Superseded to 812000004)

$3.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 123787X

Strap Torque
(Superseded to 532123787)

$4.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 17060512

Screw 5/16-18 x 3/4
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 166020

Rod Shift Fender Adjust Yt
(Superseded to 532166020)

$

$

Not available

9

Electrolux/AYP 179334

Clutch Ogura
(Superseded to 532414336)

$399.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 76020416

Pin, Cotter 1/8 x 1
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 105701X

Washer Plate
(Superseded to 532105701)

$6.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 74550412

Bolt 1/4-28
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 10040400

Washer Lock Hvy Helical
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 73800500

Nut Lock Hx w/Ins. 5/16-18 Unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 126197X

Washer 1-1/2 x 15/32 x .250
(Superseded to 532126197)

$8.99

$

In Stock, only 3 left!

0

19

Electrolux/AYP 73800600

Nut, Lock Hex w/Ins. 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 173937

Bolt 7/16-20 x 4 Gr. 5-1.5
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

21

Electrolux/AYP 140845

Knob
(Superseded to 532140845)

$13.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 145340

Rod, Brake

$

$

Not available

23

Electrolux/AYP 178289

Bracket Anti Rotation
(Superseded to 532190736)

$40.99

$

In Stock, only 3 left!

0

24

Electrolux/AYP 73350600

Nut, Hex Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 126909X

Spring, Rod, Brake
(Superseded to 532126909)

$5.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 19131016

Washer 13/32 x 5/8 x 16 Ga.
(Superseded to 819131016)

$6.49

$

In Stock, Qty 5

0

27

Electrolux/AYP 76020412

Pin, Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 175765

Rod, Brake, Park
(Superseded to 532175765)

$6.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 71673

Cap, Brake Parking Black
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 123780X

Bracket, Transaxle, L.H.
(Superseded to 532123780)

$4.99

$

Usually ships in 3-10 days

0

33

Murray 72140608

Bolt 3/8-16 x 1

$

$

Not available

34

Electrolux/AYP 175578

Shaft, Foot Pedal
(Superseded to 532175578)

$31.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 120183X

Bearing Nylon
(Superseded to 532120183)

$6.99

$

In Stock, only 4 left!

0

36

Electrolux/AYP 19211616

Washer 21/32 x 1 x 16 Gauge
(Superseded to 819211616)

$6.49

$

Usually ships in 3-10 days

0

37

Murray 1572H

Pin,Roll 3/16 x 1

$

$

Not available

38

Electrolux/AYP 179114

Pulley Idler Composite
(Superseded to 532179114)

$31.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 74760648

Bolt Rdhd 3/8-16 Unc x 3
(Superseded to 583614301)

$

$

Not available

41

Electrolux/AYP 175556

Keeper, Idler
(Superseded to 532175556)

$9.99

$

In Stock, only 1 left!

0

47

Murray 127783

Pulley, Idler

$

$

Not available

48

Electrolux/AYP 154407

Bellcrank Clutch Grnd Drv Stl
(Superseded to 532154407)

$8.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 123205X

Retainer, Belt
(Superseded to 532123205)

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 72110612

Bolt 3/8-16 x 1-1/2
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 73680600

Nut, Crownlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Murray 145212

Nut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 105710X

Link, Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 105709X

Spring, Return, Clutch
(Superseded to 532105709)

$11.99

$

In Stock, only 2 left!

0

56

Electrolux/AYP 17060620

Screw 3/8-16 x 1-1/4
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

57

Electrolux/AYP 163817

V-Belt, Drive
(Superseded to 583010501)

$66.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 123792X

Keeper, Belt, Transaxle, R.H.
(Superseded to 532123792)

$

$

Not available

59

Electrolux/AYP 169691

Keeper Belt Centerspan
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 17120614

Screw 3/8-16 x .875
(Superseded to 17490614)

$

$

Not available

62

Electrolux/AYP 8883R

Cover, Foot Pedal
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 174607

Pulley, Engine
(Superseded to 532174607)

$66.99

$

In Stock, only 1 left!

0

65

Electrolux/AYP 10040700

Washer, Lock Hvy Hlcl Spr 7/16
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

66

Electrolux/AYP 154778

Keeper Belt Engine F-proof
(Superseded to 532154778)

$12.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 108097X

Spacer Split 1.032 x .750
(Superseded to 532108097)

$6.49

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 12000053

E-Ring
(Superseded to 812000053)

$7.49

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 9396E

Key Square 1/4 x 2
(Superseded to 532009396)

$3.99

$

Usually ships in 3-10 days

0

79

Murray 2228M

Key Woodruff #9 3/16 x 3/4

$

$

Not available

80

Electrolux/AYP 123794X

Arm Shift
(Superseded to 532123794)

$

$

Not available

81

Electrolux/AYP 165598

Shaft Asm Cross Tapered
(Superseded to 532165598)

$21.99

$

Usually ships in 3-10 days

0

82

Electrolux/AYP 165711

Spring, Torsion
(Superseded to 532165711)

$7.49

$

In Stock, only 1 left!

0

83

Electrolux/AYP 19171216

Washer 17/32 x 3/4 x 16 Gauge
(Superseded to 819171216)

$

$

Not available

84

Electrolux/AYP 166230

Link Transaxle
(Superseded to 532166230)

$28.99

$

Usually ships in 3-10 days

0

85

Electrolux/AYP 150360

Nut Lock Center 1/4-28
(Superseded to 532150360)

$

$

Not available

89

Electrolux/AYP 185929X428

Console

$4.99

$

Usually ships in 3-10 days

0

90

Electrolux/AYP 142432

Screw Hex Wsh Hi-Lo 1/4-1/2 Unc
(Superseded to 532142432)

$6.49

$

Usually ships in 3-10 days

0

96

Electrolux/AYP 4497H

Retainer Spring 1" Zinc/cad.
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

110

Electrolux/AYP 74780612

Bolt Hex 3/8-16 x 3/4 Gr. 5
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

111

Electrolux/AYP 123776X

Bracket, Transaxle, R.H.
(Superseded to 532123776)

$

$

Not available

117

Electrolux/AYP 19091216

Washer 9/32 x 3/4 x 16
(Superseded to 819091216)

$4.99

$

In Stock, only 2 left!

0

120

Murray 73900600

Nut Lock Flg. 3/8-16 Unc

$

$

Not available

135

UNKNOWN

$

$

Not available

145

Electrolux/AYP 74490540

Bolt Hex Flghd 5/16-18 Gr. 5
(Superseded to 874490540)

$4.99

$

Usually ships in 3-10 days

0

150

Electrolux/AYP 175456

Spacer
(Superseded to 532175456)

$

$

Not available

151

Electrolux/AYP 19133210

Washer 13/32 x 2 x 10 Ga.
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

156

Electrolux/AYP 166002

Washer Srrted 5/16ID x 1.125
(Superseded to 532166002)

$6.49

$

Usually ships in 3-10 days

0

158

Electrolux/AYP 165589

Bracket Shift Mount
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

159

Electrolux/AYP 183900

Hub Shift
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

161

Electrolux/AYP 72140406

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr 5
(Superseded to 872140406)

$4.99

$

Usually ships in 3-10 days

0

162

Electrolux/AYP 73680400

Nut Crownlock 1/4-20 Unc
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

163

Electrolux/AYP 74780416

Bolt Hex Fin 1/4-20 Unc x 1 Gr 5
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

164

Electrolux/AYP 19091010

Washer 5/8 x .281 x 10 Ga
(Superseded to 819091210)

$4.99

$

In Stock, only 2 left!

0

165

Electrolux/AYP 165623

Bracket Pivot Lever
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 166880

Screw 5/16-18 x 5/8
(Superseded to 532166880)

$6.49

$

Usually ships in 3-10 days

0

168

Electrolux/AYP 165492

Bolt Shoulder 5/16-18 x .561
(Superseded to 532165492)

$10.99

$

In Stock, only 3 left!

0

169

Electrolux/AYP 165580

Plate Fastening Lt
(Superseded to 532165580)

$6.99

$

Usually ships in 3-10 days

0

197

Electrolux/AYP 169613

Nyliner Snap-In 5/8" Id
(Superseded to 532169613)

$7.49

$

In Stock, Qty 6

0

198

Electrolux/AYP 169593

Washer Nyl 7/8 Id x .105
(Superseded to 532169593)

$11.99

$

Usually ships in 3-10 days

0

202

UNKNOWN

$

$

Not available
