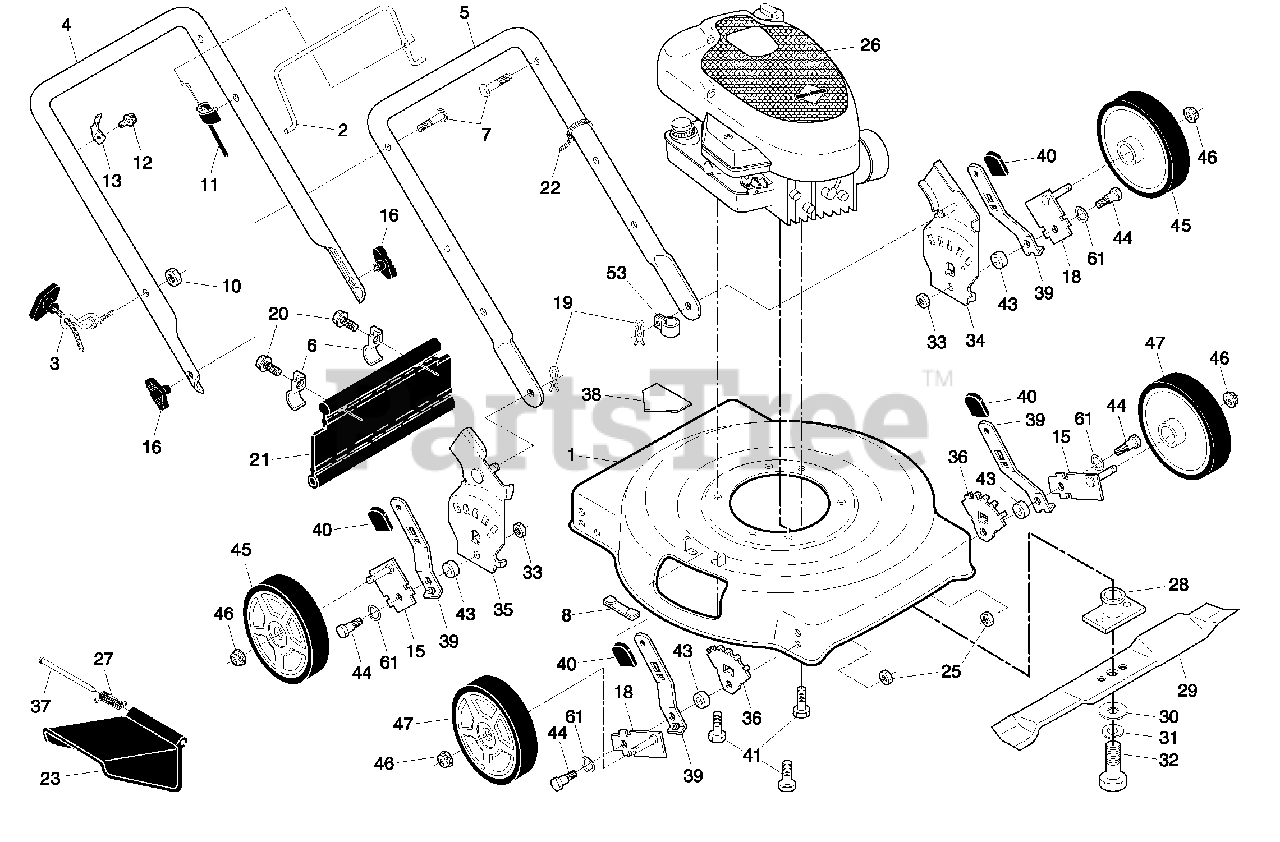

PO 500N22 S (961120041-01) - Poulan Walk-Behind Mower (2007-12) Rotary Lawn Mower Parts Diagram

Walk-Behind Mower

Rotary Lawn Mower Parts Diagram

  • Title

1

Electrolux/AYP 403018

Kit, Housing
(Superseded to 532403018)

Note: (Includes Key Number 38)

$133.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 194177X428

Control Bar
(Superseded to 532194177)

$

$

Not available

3

Electrolux/AYP 194788

Rope Guide
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

4

Electrolux/AYP 194179X479

Upper Handle
(Superseded to 532194179)

$27.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 169708X479

Lower Handle
(Superseded to 532174291)

$

$

Not available

6

Electrolux/AYP 192301X004

Shoulder Bolt 5/16-18 x 1/2
(Superseded to 532192301)

$

$

Not available

7

Electrolux/AYP 191574

Handle Bolt 5/16-18
(Superseded to 532191574)

$6.99

$

In Stock, only 4 left!

0

8

Electrolux/AYP 161622

Clip, Closeout
(Superseded to 532161622)

$14.99

$

In Stock, only 2 left!

0

10

Electrolux/AYP 132004

Locknut, Hex 1/4-20

$

$

Not available

11

Electrolux/AYP 183281

Engine Zone Control Cable
(Superseded to 532183281)

$17.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 750634

Screw, Hex Head, Threaded, Rolled #10-24 x 1/2
(Superseded to 532750634)

$6.49

$

In Stock, Qty 5

0

13

Electrolux/AYP 86899X004

Up-Stop Bracket
(Superseded to 532430034)

$6.99

$

In Stock, only 3 left!

0

15

Electrolux/AYP 401174X004

Axle Arm Assembly, Left Front & Right Rear
(Superseded to 532401174)

$

$

Not available

16

Electrolux/AYP 189713X428

Handle Knob
(Superseded to 532185577)

$9.49

$

In Stock, Qty 18

0

18

Electrolux/AYP 401175X004

Axle Arm Assembly, Right Front & Left Rear
(Superseded to 532401175)

$6.99

$

In Stock, only 3 left!

0

19

Electrolux/AYP 51793

Hairpin Cotter
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 750097

Screw, Tapping, Hex Washer Head #10-24
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

21

Electrolux/AYP 413160

Rear Skirt
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 66426

Wire Tie
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 160831

Discharge Guard
(Superseded to 532160831)

$

$

Not available

25

Electrolux/AYP 166785

Nut, Hex, Flangelock 5/16-18
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

26

Engine, Briggs & Stratton, Model Number 10T502 (For engine service and replacement parts, call Briggs & Stratton at 1-800-233-3723)

$

$

Not available

27

Electrolux/AYP 408585

Torsion Spring
(Superseded to 532408585)

$18.99

$

In Stock, only 2 left!

0

28

Electrolux/AYP 193825

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

29

Electrolux/AYP 406713

22" Blade
(Superseded to 532406713)

$26.99

$

In Stock, Qty 11

0

30

Electrolux/AYP 851074

Hardened Washer
(Superseded to 532851074)

$4.99

$

In Stock, only 4 left!

0

31

Electrolux/AYP 850263

Helical Lockwasher 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 851084

Screw, Hex Head, Grade 8, 3/8-24 x 1-3/8
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 73930500

Nut, Hex, Flangelock 5/16-18
(Superseded to 873930500)

$7.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 400781X479

Wheel Bracket Support (Left)
(Superseded to 532403456)

$

$

Not available

35

Electrolux/AYP 400782X479

Wheel Bracket Support (Right)
(Superseded to 532403457)

$14.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 407494X005

Wheel Bracket Adjuster
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

37

Electrolux/AYP 160833

Hinge Rod
(Superseded to 532160833)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 404763

Danger Decal

$2.49

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 401621X004

Selector Spring
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

40

Electrolux/AYP 87877

Selector Knob
(Superseded to 532087877)

$6.49

$

In Stock, only 1 left!

0

41

Electrolux/AYP 150406

Screw, Hex Head, Threaded, Rolled 3/8-16 x 1
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 401629

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

44

Electrolux/AYP 401638

Shoulder Bolt 5/16-18 x .33
(Superseded to 596203801)

$4.99

$

In Stock, Qty 8

0

45

Electrolux/AYP 193931X427

Wheel & Tire Assembly, Rear
(Superseded to 583717901)

$12.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 409148

Nut, Hex, Flangelock 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

47

Electrolux/AYP 193931X427

Wheel & Tire Assembly, Front
(Superseded to 583717901)

$12.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 197991

Clip, Cable
(Superseded to 532197991)

$7.49

$

In Stock, Qty 6

0

61

Electrolux/AYP 401630

Washer, Curved, Cylindrical
(Superseded to 532401630)

$4.99

$

In Stock, only 3 left!

0

61

Electrolux/AYP 404764

Warning Decal
(Superseded to 532404764)

Note: (Not shown)

$8.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 193732

Operator's Manual, English

Note: (Not shown)

$

$

Not available

61

Electrolux/AYP 193734

Operator's Manual, French
(Superseded to 917193734)

Note: (Not shown)

$5.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 417097

Repair Parts Manual

Note: (Not shown)

$

$

Not available
