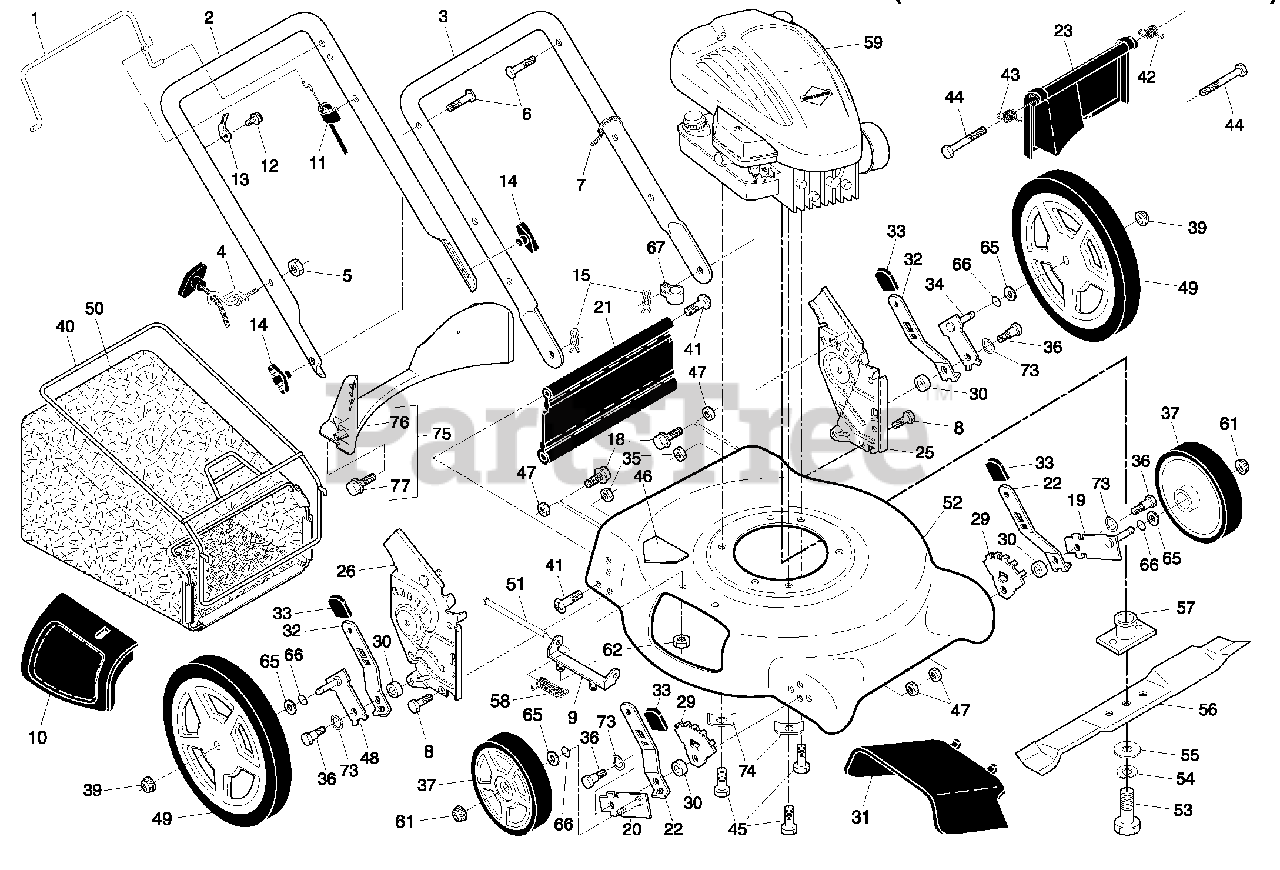

PO 500N21 RHX (961320028-01) - Poulan Walk-Behind Mower (2007-03) Product Complete Parts Diagram

Walk-Behind Mower

Product Complete Parts Diagram

  • Title

1

Electrolux/AYP 194177X428

Control Bar
(Superseded to 532194177)

$

$

Not available

2

Electrolux/AYP 194179X479

Upper Handle
(Superseded to 532194179)

$27.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 169708X479

Lower Handle
(Superseded to 532174291)

$

$

Not available

4

Electrolux/AYP 194788

Rope Guide
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

5

Electrolux/AYP 132004

Nut, Hex

$

$

Not available

6

Electrolux/AYP 191574

Handle Bolt
(Superseded to 532191574)

$6.99

$

In Stock, only 4 left!

0

7

Electrolux/AYP 66426

Wire Tie
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 74780512

Bolt, Hex Head 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 176556

Engine Zone Control Cable
(Superseded to 532176556)

$22.99

$

In Stock, only 4 left!

0

12

Electrolux/AYP 750634

Hex Washer Head Screw #10-24 x 1/2
(Superseded to 532750634)

$6.49

$

In Stock, Qty 5

0

13

Electrolux/AYP 86899X004

Up-Stop Bracket
(Superseded to 532430034)

$6.99

$

In Stock, only 3 left!

0

14

Electrolux/AYP 189713X428

Handle Knob
(Superseded to 532185577)

$9.49

$

In Stock, Qty 18

0

15

Electrolux/AYP 51793

Hairpin Cotter
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 17600406

Screw
(Superseded to 817600406)

$6.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 401174X004

Axle Arm Assembly, Front, LH
(Superseded to 532401174)

$

$

Not available

20

Electrolux/AYP 401175X004

Axle Arm Assembly, Front, RH
(Superseded to 532401175)

$6.99

$

In Stock, only 3 left!

0

21

Electrolux/AYP 189008

Rear Skirt
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 401621X004

Selector Spring, Front
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

23

Electrolux/AYP 401814X004

Rear Door Assembly

$

$

Not available

25

Electrolux/AYP 410385X479

Handle Bracket Assembly, LH

$8.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 410386X479

Handle Bracket Assembly, RH
(Superseded to 410386X428)

$8.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 407500X005

Wheel Adjusting Bracket, Front, LH
(Superseded to 532407500)

$

$

Not available

29

Electrolux/AYP 407499X005

Wheel Adjusting Bracket, Front, RH
(Superseded to 532414441)

$

$

Not available

30

Electrolux/AYP 401629

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

32

Electrolux/AYP 401624X004

Selector Spring, Rear
(Superseded to 532401624)

$4.99

$

In Stock, only 1 left!

0

33

Electrolux/AYP 87877

Selector Knob
(Superseded to 532087877)

$6.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 401176X004

Axle Arm Assembly, Rear, LH
(Superseded to 532401176)

$6.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 751153

Nut, Hex
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

36

Electrolux/AYP 401638

Shoulder Bolt 5/16-18
(Superseded to 596203801)

$4.99

$

In Stock, Qty 8

0

37

Electrolux/AYP 193931X427

Wheel & Tire Assembly, Front 7 x 1-3/4
(Superseded to 583717901)

$12.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 409148

Nut, Hex
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 401808

Frame, Grassbag
(Superseded to 532411949)

$

$

Not available

41

Electrolux/AYP 88652

Screw, Hinge
(Superseded to 532088652)

$7.49

$

In Stock, only 2 left!

0

42

Electrolux/AYP 405421

Spring, LH
(Superseded to 532405421)

$4.99

$

In Stock, only 3 left!

0

43

Electrolux/AYP 405423

Spring, RH
(Superseded to 532405423)

$4.99

$

In Stock, only 3 left!

0

44

Electrolux/AYP 184193

Bolt, Rear Door
(Superseded to 532184193)

$

$

Not available

45

Electrolux/AYP 150406

Hex Head Thread Rolling Screw 3/8-16 x 1
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 404763

Danger Decal

$2.49

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 166785

Locknut, Hex 5/16-18
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

48

Electrolux/AYP 401177X004

Axle Arm Assembly, Rear, RH
(Superseded to 532401177)

$

$

Not available

49

Electrolux/AYP 183926X427

Wheel & Tire Assembly, Rear 12 x 1-3/4

$

$

Not available

50

Electrolux/AYP 402263

Grassbag
(Superseded to 532410666)

$80.99

$

In Stock, only 1 left!

0

52

Electrolux/AYP 413902

Housing Assembly

Note: (Includes Key Number 46)

$78.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 851084

Hex Head Screw 3/8-24 x 1-3/8 Grade 8
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

54

Electrolux/AYP 850263

Helical Lockwasher
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 851074

Hardened Washer
(Superseded to 532851074)

$4.99

$

In Stock, only 4 left!

0

56

Electrolux/AYP 406712

21" Blade
(Superseded to 532406712)

$20.99

$

In Stock, only 1 left!

0

57

Electrolux/AYP 193825

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

59

Engine, Briggs & Stratton, Model Number 10T502 (For engine service and replacement parts, call Briggs & Stratton at 1-800-233-3723)

$

$

Not available

61

Electrolux/AYP 409148

Flanged Locknut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

65

Electrolux/AYP 88348

Washer, Flat
(Superseded to 532088348)

$7.49

$

In Stock, Qty 6

0

66

Electrolux/AYP 197480

O-Ring
(Superseded to 532197480)

$7.49

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 197991

Clip, Cable
(Superseded to 532197991)

$7.49

$

In Stock, Qty 6

0

73

Electrolux/AYP 401630

Washer, Curved, Cylindrical
(Superseded to 532401630)

$4.99

$

In Stock, only 3 left!

0

74

Electrolux/AYP 851202X004

Washer, Special, Engine

$

$

Not available

75

Electrolux/AYP 413693

Kit, Rear Baffle
(Superseded to 532413693)

$30.99

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 410589

Baffl e, Rear
(Superseded to 532410589)

$13.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 17411312

Screw, Rear Baffle
(Superseded to 817411312)

$7.49

$

In Stock, Qty 20+

0

77

Electrolux/AYP 404764

Warning Decal
(Superseded to 532404764)

Note: (not shown)

$8.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 193732

Operator's Manual, English

$2.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 193734

Operator's Manual, French
(Superseded to 917193734)

$5.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 413977

Repair Parts Manual

$

$

Not available
