PO 18542 LT - Poulan Lawn Tractor (2008-11) Mowel Deck Parts Diagram

Lawn Tractor

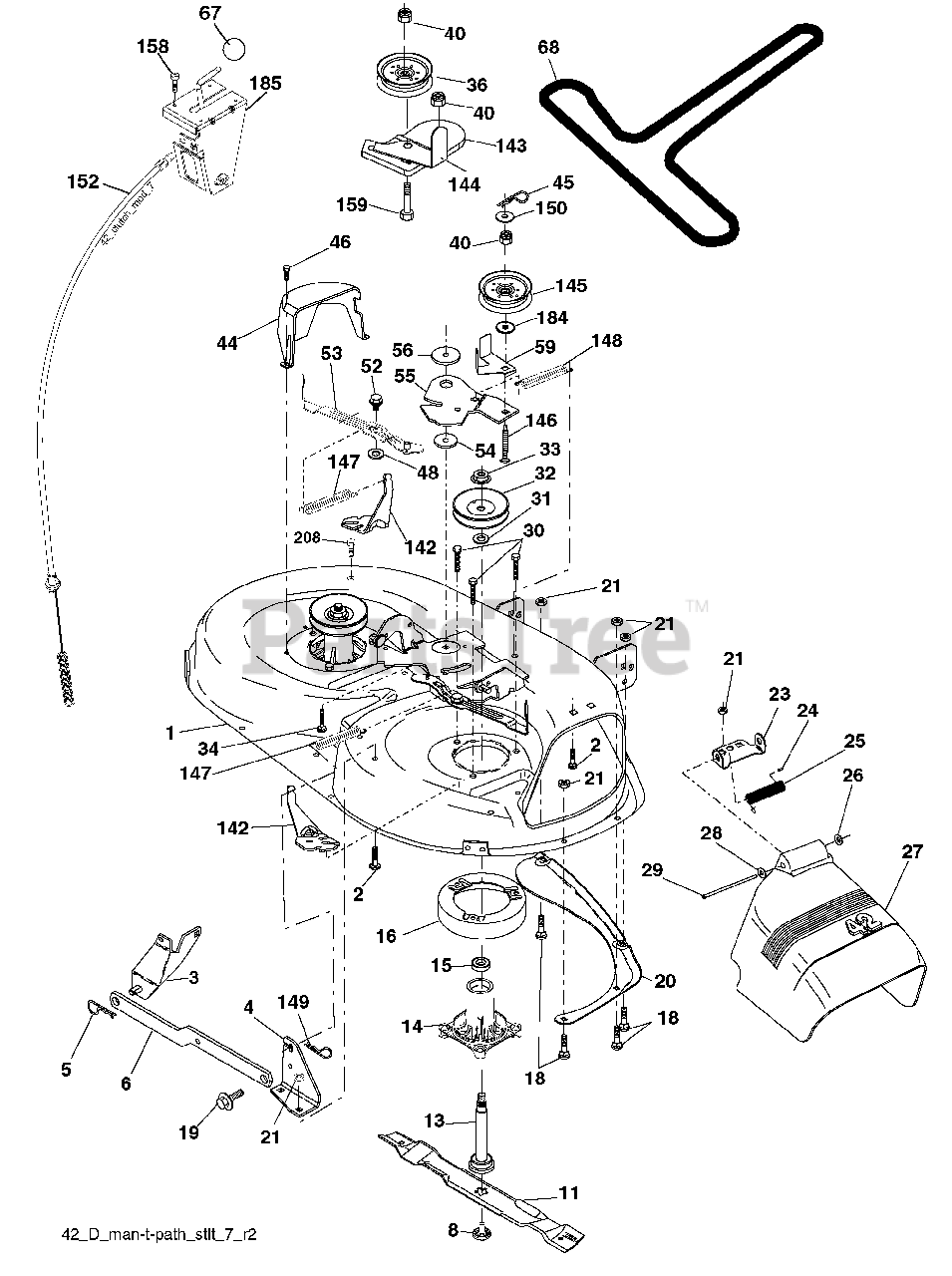

Mowel Deck Parts Diagram

  • Title

1

Murray 165892

Mower Deck Assembly, 42"
(Superseded to 532176027)

$399.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 72140506

Bolt
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 138017

Bracket Asm Fr. Sway Bar 3/42
(Superseded to 532138017)

$12.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 165460

Bracket Asm Deck 42" Sway Bar
(Superseded to 532165460)

$13.99

$

In Stock, only 1 left!

0

5

Murray 4939M

Retainer Spring

$

$

Not available

6

Electrolux/AYP 178024

Bar Sway Deck
(Superseded to 532178024)

$8.99

$

In Stock, only 4 left!

0

8

Electrolux/AYP 193003

Bolt/Washer Asm. 7/16-20 unf (The following Blades are available)
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 138971

Blade Mower 42” Hi-Lift (for bagging and discharging)
(Superseded to 532138971)

$20.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 134149

Blade, Mulching 42” Std (for mulching mowers only)
(Superseded to 532134149)

$

$

Not available

11

Electrolux/AYP 139775

Blade Mulching 42” Premium (For better wear when mulching)
(Superseded to 532139775)

$

$

Not available

13

Electrolux/AYP 192872

Shaft As m. Mandrel
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

14

Electrolux/AYP 187281

Housing Mandrel
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

15

Electrolux/AYP 110485X

Bearing, Ball, Mandrel
(Superseded to 532110485)

$13.99

$

In Stock, Qty 11

0

16

Electrolux/AYP 174493

Stripper, Mandrel Deck
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 72140505

Bolt, Carriage 5/16-18 x 5/8
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 132827

Bolt, Shoulder
(Superseded to 532132827)

$

$

Not available

20

Electrolux/AYP 159770

Baffle, Vortex
(Superseded to 532159770)

$

$

Not available

21

Murray 73680500

Nut
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Electrolux/AYP 177563

Bracket, Deflector Mower 42"
(Superseded to 532177563)

$

$

Not available

24

Electrolux/AYP 105304X

Cap, Sleeve 80 x 112 Blk Mower
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 123713X

Spring, Torsion, Deflector 2 52
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

26

Electrolux/AYP 110452X

Nut, Push Phos & Oil
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 130968X428

Shield, Deflector 42" Blk
(Superseded to 532130968)

$39.99

$

In Stock, Qty 9

0

28

Electrolux/AYP 19111016

Washer 11/32 x 5/8 x 16 Ga.
(Superseded to 819111016)

$3.99

$

In Stock, Qty 11

0

29

Electrolux/AYP 131491

Rod, Hinge 42" 6 75 w/G
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 173984

Screw Thdrol
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

31

Electrolux/AYP 187690

Washer, Spacer Mower Vented
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

32

Murray 153535

Pulley, Mandrel
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 400234

Nut, Toplock
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

34

Electrolux/AYP 72110612

Bolt Carr SH 3/8-16 x 1-1/2 Gr.5
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 131494

Pulley, Idler, Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

40

Murray 73900600

Nut Lock 3/8-16

$

$

Not available

44

Electrolux/AYP 140088

Guard, Mandrel, LH
(Superseded to 532140088)

$34.99

$

In Stock, Qty 10

0

45

Electrolux/AYP 4497H

Retainer
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

46

Electrolux/AYP 137729

Screw, Thdrol 1/4-20 x 5/8 T
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

48

Electrolux/AYP 133944

Washer, Hardened
(Superseded to 532133944)

$6.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 139888

Bolt, Shoulder 5/16-18 unc
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

53

Electrolux/AYP 184907

Arm Assembly, Pad, Brake
(Superseded to 532184907)

$14.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 178515

Washer, Hardened
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 155046

Arm, Idler
(Superseded to 532155046)

$15.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 165723

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

59

Electrolux/AYP 141043

Guard TUV Idler
(Superseded to 532141043)

$

$

Not available

67

Electrolux/AYP 106932X

Knob Round
(Superseded to 532106932)

$7.99

$

In Stock, Qty 5

0

68

Electrolux/AYP 144959

V-Belt, 42" Mower
(Superseded to 532144959)

$43.99

$

In Stock, Qty 20+

0

142

Electrolux/AYP 195784

Anchor Spring Brake Mower
(Superseded to 532195784)

$7.49

$

Usually ships in 3-10 days

0

143

Electrolux/AYP 157109

Bracket Arm Idler 42"
(Superseded to 532157109)

$6.49

$

Usually ships in 3-10 days

0

144

Electrolux/AYP 158634

Keeper Belt 42" Clutch Cable
(Superseded to 532173441)

$9.99

$

In Stock, only 1 left!

0

145

Electrolux/AYP 165888

Pulley Idler Flat
(Superseded to 532173437)

$28.99

$

In Stock, only 3 left!

0

146

Electrolux/AYP 171977

Bolt Carriage Idler
(Superseded to 532173443)

$7.49

$

In Stock, Qty 6

0

147

Electrolux/AYP 131335

Spring Extension
(Superseded to 532179748)

$5.99

$

In Stock, Qty 7

0

148

Electrolux/AYP 169022

Spring Return Idler
(Superseded to 532169022)

$5.99

$

In Stock, Qty 6

0

149

Electrolux/AYP 165898

Retainer Spring Yellow
(Superseded to 532165898)

$7.49

$

Usually ships in 3-10 days

0

150

Electrolux/AYP 19091210

Washer 9/32 x 3/4 x 10 Ga.
(Superseded to 819091210)

$4.99

$

In Stock, only 1 left!

0

152

Murray 169676

Clutch Cable 42"
(Superseded to 532175067)

$45.99

$

In Stock, only 4 left!

0

158

Electrolux/AYP 17720408

Screw Hex Thd Cut 1/4-20 x 1/2
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

159

Electrolux/AYP 72140614

Bolt Rdhd Sqn 3/8-16 unc x 1-3/4
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

184

Electrolux/AYP 19131410

Washer 13/32 x 7/8 x 10 Ga.
(Superseded to 819131410)

$1.99

$

Usually ships in 3-10 days

0

185

Electrolux/AYP 188234

Head Asm Cable Clutch\
(Superseded to 532188234)

$53.99

$

In Stock, only 1 left!

0

208

Electrolux/AYP 17670608

Screw Thdrol 3/8 x 16 x 1/2
(Superseded to 817670608)

$6.49

$

Usually ships in 3-10 days

0

208

Electrolux/AYP 192870

Mandrel Assembly
(Superseded to 587819701)

Note: (Includes housing, shaft assembly, and bearing only -pulley/nut/washer and blade bolt/washers not included)

$56.99

$

In Stock, Qty 17

0

208

Electrolux/AYP 418031

Replacement Mower, Complete
(Superseded to 532418031)

$

$

Not available
