PO 15538 LT (960120068-01) - Poulan Lawn Tractor (2008-05) Mowel Lift Parts Diagram

Lawn Tractor

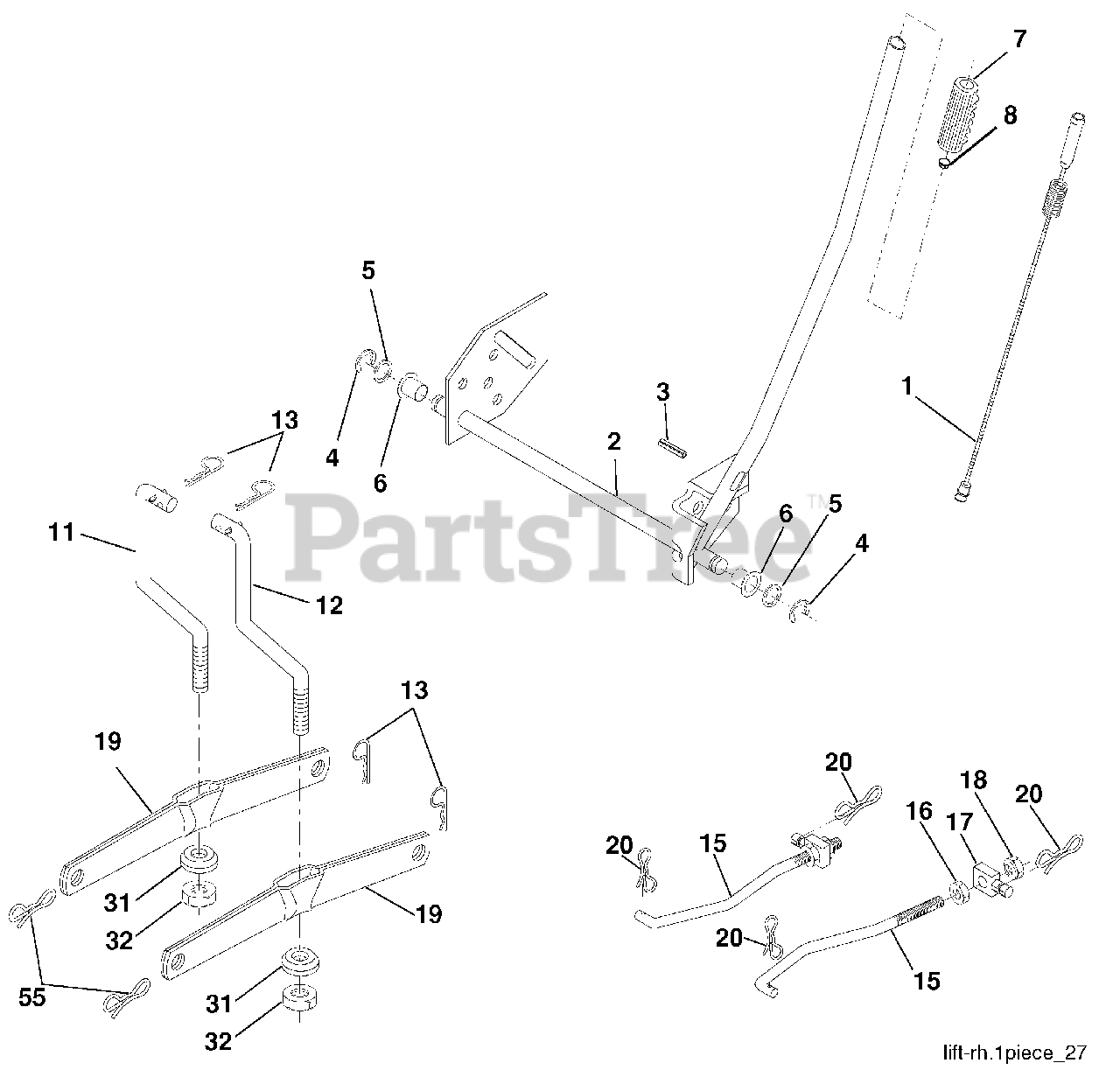

Mowel Lift Parts Diagram

  • Title
1

Electrolux/AYP 159460

Wire Asm Inner/Sprg w/plunger
(Superseded to 532159460)

$26.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 159471

Shaft Asm Lift RH
(Superseded to 532159471)

$54.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 105767X

Pin Groove 1 500 Zinc
(Superseded to 532105767)

$6.49

$

In Stock, only 3 left!

0

4

Electrolux/AYP 12000002

E Ring #5133-62

$

$

Not available

5

Electrolux/AYP 19211621

Washer 21/32 x 1 x 21 Ga.
(Superseded to 819211621)

$6.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 120183X

Bearing Nylon Blk 629 Id
(Superseded to 532120183)

$6.99

$

In Stock, only 4 left!

0

7

Electrolux/AYP 109413X

Grip Handle Bicycle Matte Blk
(Superseded to 532109413)

$7.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 124526X

Button Plunger Black

$

$

Not available

11

Electrolux/AYP 139865

Link Lift LH Fixed Length
(Superseded to 532151141)

$26.99

$

Usually ships in 3-10 days

0

12

Murray 139866

Link Lift RH Fixed Length
(Superseded to 532145536)

$26.99

$

In Stock, only 3 left!

0

13

Murray 4939M

Retainer Spring

$

$

Not available

15

Electrolux/AYP 173288

Link Front
(Superseded to 532173288)

$13.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 73350800

Nut Jam Hex 1/2-13 unc
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

17

Electrolux/AYP 175689

Trunnion
(Superseded to 532175689)

$

$

Not available

18

Electrolux/AYP 73800800

Nut Lockw/Wsh 1/2-13 unc
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

19

Electrolux/AYP 139868

Arm Suspension Rear
(Superseded to 532139868)

$15.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 194209

Pin Cotter 7/16 Bow Tie Lock
(Superseded to 532194209)

$3.99

$

In Stock, Qty 9

0

31

Electrolux/AYP 169865

Bearing Pvt Lift
(Superseded to 532169865)

$

$

Not available

32

Electrolux/AYP 73540600

Nut Crownlock 3/8-24
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 194208

Pin Cotter 5/16 Bow Tie Lock
(Superseded to 532194208)

$3.99

$

Usually ships in 3-10 days

0
