PO 15538 LT (960120068-01) - Poulan Lawn Tractor (2008-05) Mowel Deck Parts Diagram

Lawn Tractor

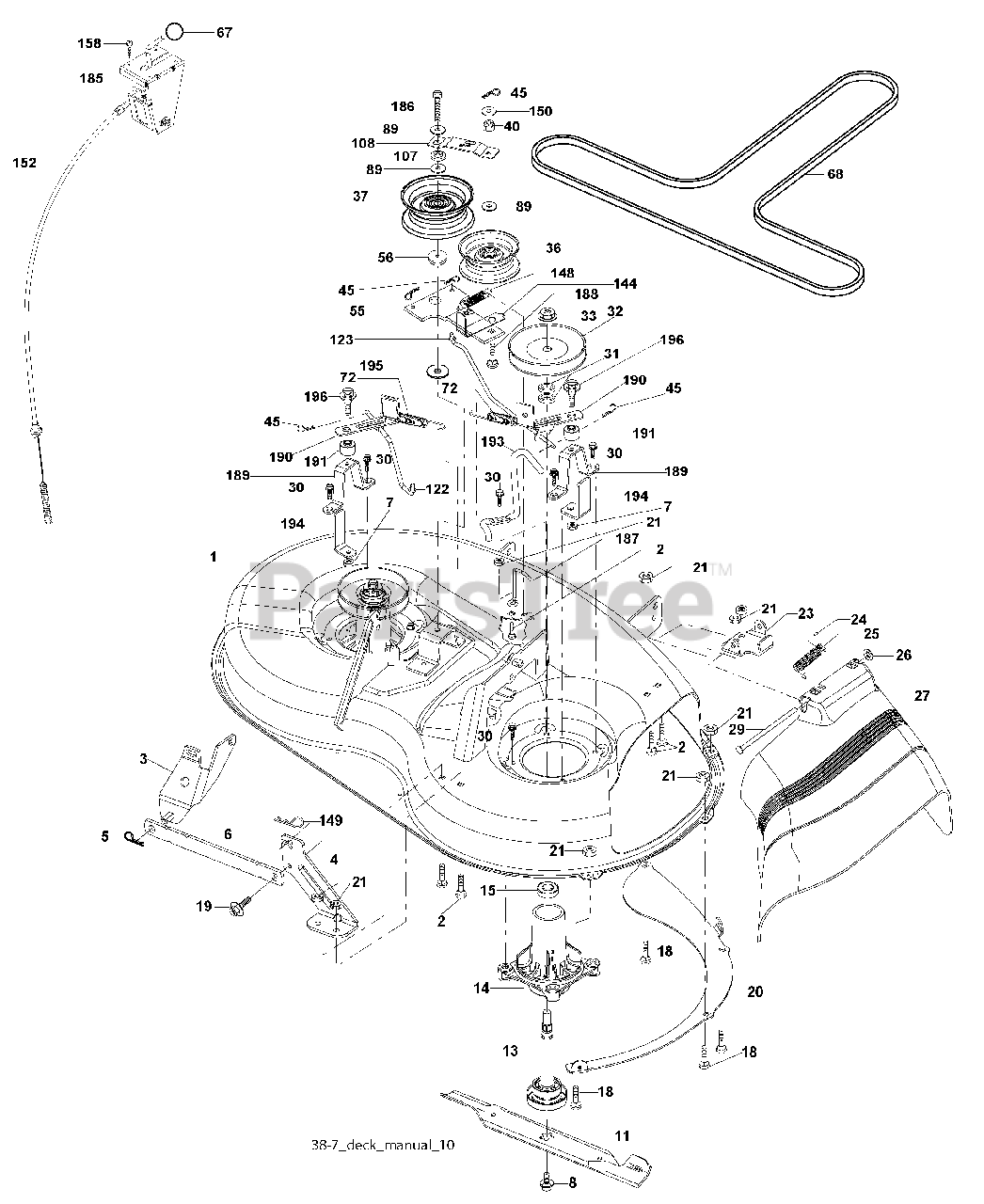

Mowel Deck Parts Diagram

  • Title

1

Electrolux/AYP 192556

Mower Housing Assembly
(Superseded to 532192556)

$338.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 72140506

Bolt Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 138017

Bracket Asm Fr. Sway Bar
(Superseded to 532138017)

$12.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 192568

Bracket Deck Sway Bar 38"/42"
(Superseded to 532192568)

$10.99

$

Usually ships in 3-10 days

0

5

Murray 4939M

Retainer Spring

$

$

Not available

6

Electrolux/AYP 178024

Bar Sway Deck
(Superseded to 532178024)

$8.99

$

In Stock, only 4 left!

0

7

Electrolux/AYP 73800500

Nut Lock 5/16-18 UNC
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 193003

Bolt 3/8-24 x 1.25 Gr. 8
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 138497

Blade Mower 38" High PERF
(Superseded to 532138497)

$26.99

$

In Stock, Qty 7

0

11

Electrolux/AYP 193957

Blade 38" 3 in 1 Premium
(Superseded to 581116302)

$17.99

$

In Stock, only 1 left!

0

13

Electrolux/AYP 192872

Shaft Assembly, Mandrel, Vented
(Superseded to 587819701)

Note: (Includes Key Number 6)

$56.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 187281

Housing, Mandrel, Vented
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 110485X

Bearing, Ball, Mandrel
(Superseded to 532110485)

$13.99

$

In Stock, Qty 14

0

18

Electrolux/AYP 72140505

Blade Rdhd Sqnk 5/16-18 x 5/8
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 132827

Bolt, Shoulder
(Superseded to 532132827)

$

$

Not available

20

Electrolux/AYP 400095

Baffle Vortex Front
(Superseded to 532400095)

$18.99

$

Usually ships in 3-10 days

0

21

Murray 73680500

Nut
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Electrolux/AYP 192557

Bracket, Mower Deflector
(Superseded to 532192557)

$9.49

$

In Stock, Qty 5

0

24

Electrolux/AYP 105304X

Cap, Sleeve
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 197026

Spring, Torsion, Deflector
(Superseded to 532197026)

$10.99

$

In Stock, Qty 15

0

26

Electrolux/AYP 110452X

Nut, Push
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 192572X428

Shield, Deflector
(Superseded to 532192572)

$80.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 131491

Rod, Hinge
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 173984

Screw Thdrol.
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 187690

Washer, Spacer
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

32

Murray 153532

Pulley, Mandrel
(Superseded to 532173435)

$22.99

$

In Stock, Qty 5

0

33

Electrolux/AYP 400234

Nut, Toplock
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

36

Electrolux/AYP 131494

Pulley, Idler, Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

37

Electrolux/AYP 193198

Pulley, Idler Flat
(Superseded to 596481402)

$26.99

$

In Stock, only 1 left!

0

40

Electrolux/AYP 73680600

Nut, Crownlock 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 4497H

Retainer
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

55

Electrolux/AYP 133840

Idler Arm Assembly
(Superseded to 532133840)

$

$

Not available

56

Electrolux/AYP 165723

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

67

Electrolux/AYP 106932X

Knob
(Superseded to 532106932)

$7.99

$

In Stock, Qty 5

0

68

Electrolux/AYP 193214

V-Belt
(Superseded to 532193214)

$51.99

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 193216

Spring Brake Return
(Superseded to 532193216)

$7.49

$

In Stock, only 1 left!

0

89

Electrolux/AYP 19131311

Washer 13/32 x 13/16 x 11 Ga.
(Superseded to 582732401)

$6.99

$

In Stock, Qty 12

0

107

Electrolux/AYP 133502

Spacer Retainer
(Superseded to 532133502)

$6.49

$

In Stock, only 1 left!

0

108

Electrolux/AYP 133503

Stiffener, Idler Arm
(Superseded to 532133503)

$6.49

$

Usually ships in 3-10 days

0

122

Electrolux/AYP 410189

Rod, Brake LH
(Superseded to 532410189)

$17.99

$

Usually ships in 3-10 days

0

123

Electrolux/AYP 410190

Rod, Brake RH
(Superseded to 532410190)

$18.99

$

Usually ships in 3-10 days

0

144

Electrolux/AYP 193414

Keeper Belt Idler Tension
(Superseded to 532193414)

$6.49

$

In Stock, only 1 left!

0

148

Electrolux/AYP 169022

Spring Return Idler
(Superseded to 532169022)

$5.99

$

In Stock, Qty 7

0

149

Electrolux/AYP 165898

Retainer Spring Yellow
(Superseded to 532165898)

$7.49

$

Usually ships in 3-10 days

0

150

Electrolux/AYP 19091210

Washer 9/32 x 3/4 x 10 Ga.
(Superseded to 819091210)

$4.99

$

Usually ships in 3-10 days

0

152

Electrolux/AYP 193235

Clutch Cable 38"
(Superseded to 532193235)

$51.99

$

In Stock, only 2 left!

0

158

Electrolux/AYP 17720408

Screw Hex Thd Cut 1/4-20 x 1/2
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

185

Electrolux/AYP 188234

Head Asm Cable Clutch
(Superseded to 532188234)

$53.99

$

In Stock, only 1 left!

0

186

Electrolux/AYP 17490644

Screw Hex Wsh Thdrol 3/8-16 x 2-3/4
(Superseded to 817490644)

$

$

Not available

187

Electrolux/AYP 193412

Keeper Belt M Shape
(Superseded to 532193412)

$7.99

$

Usually ships in 3-10 days

0

188

Electrolux/AYP 165891

Bolt Carriage Idler
(Superseded to 532173443)

$7.49

$

In Stock, Qty 6

0

189

Electrolux/AYP 192559

Brake Stand
(Superseded to 532192558)

$26.99

$

Usually ships in 3-10 days

0

190

Electrolux/AYP 192560

Brake Arm
(Superseded to 532192558)

$26.99

$

Usually ships in 3-10 days

0

191

Electrolux/AYP 192561

Brake Spacer
(Superseded to 532192561)

$3.49

$

Usually ships in 3-10 days

0

193

Electrolux/AYP 193413

Keeper Belt Rh Mandrel
(Superseded to 532193413)

$11.99

$

In Stock, only 1 left!

0

194

Electrolux/AYP 194105

Brake Guard
(Superseded to 532192558)

$26.99

$

Usually ships in 3-10 days

0

195

Electrolux/AYP 19133210

Washer 13/32 x 2 x 10 Ga.
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

196

Electrolux/AYP 193782

Bolt/Washer Asm. 5/16-18
(Superseded to 532193782)

$7.49

$

Usually ships in 3-10 days

0

196

Electrolux/AYP 192558

Brake Assembly
(Superseded to 532192558)

$26.99

$

Usually ships in 3-10 days

0

196

Electrolux/AYP 192870

Mandrel Assembly
(Superseded to 587819701)

Note: (Includes housing, shaft assembly, and bearing only - pulley/nut/washer and blade bolt/washers not included)

$56.99

$

In Stock, Qty 20+

0

196

Electrolux/AYP 193646

Replacement Mower, Complete
(Superseded to 583211201)

$787.99

$

Usually ships in 3-10 days

0
