PO 14542 LT (960120112-00) - Poulan Lawn Tractor (2010-09) STEERING Parts Diagram

Lawn Tractor

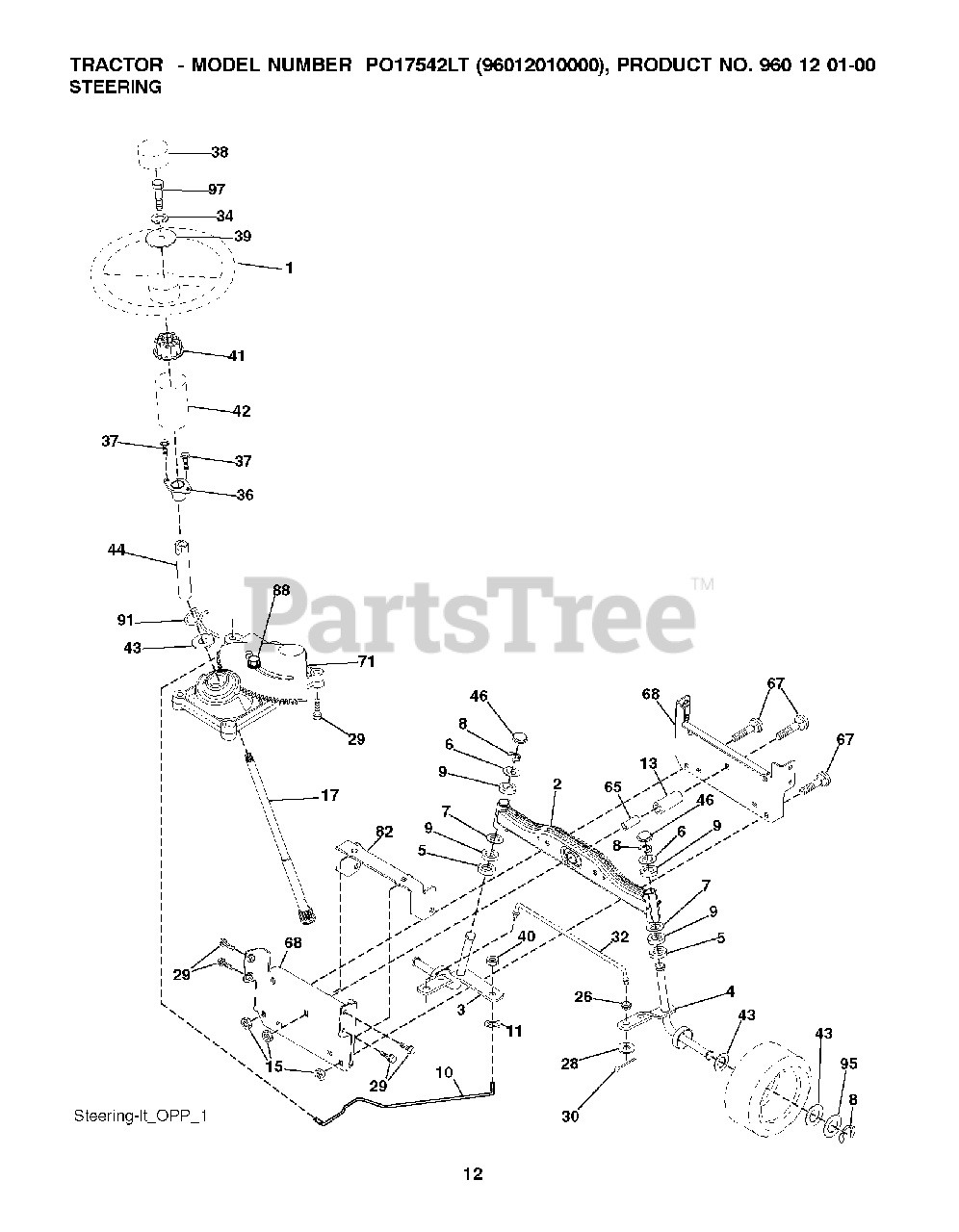

STEERING Parts Diagram

  • Title

1

Poulan 532424543

WHEEL.STEERING.HARD.RIM.BLAC

$43.99

$

In Stock, Qty 6

0

2

Poulan 532418168

AXLE HALF ASM-WELDED

$46.99

$

Usually ships in 3-10 days

0

3

Poulan 532169840

SPINDLE.ASM.LH.15"TIRES
(Superseded to 596873901)

Note: LEFT

$18.99

$

Usually ships in 3-10 days

0

4

Poulan 532169839

SPINDLE.ASM.RH.15"TIRES
(Superseded to 596873801)

Note: RIGHT

$31.99

$

In Stock, only 1 left!

0

5

Poulan 532124931

(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

6

Poulan 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

7

Poulan 819272016

WASHER

$6.49

$

In Stock, only 2 left!

0

8

Poulan 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 532124937

Steering Column Bearing
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

10

Poulan 532175121

DRAGLINK.15".TIRES.2001

$68.99

$

In Stock, only 1 left!

0

11

Poulan 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

13

Poulan 532136518

TUBE, PIVOT AXLE (2 2)

$9.99

$

In Stock, only 1 left!

0

15

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Poulan 532411386

(Superseded to 532190753)

$

$

Not available

26

Poulan 532126847

BUSHING.DRAGLINK (2 2)

$5.99

$

In Stock, only 2 left!

0

28

Poulan 819131416

WASHER
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

29

Poulan 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

30

Poulan 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

32

Poulan 532192757

ROD.TIE.WIRE.FORM

$34.99

$

In Stock, only 2 left!

0

34

Poulan 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

36

Poulan 532155099

(Superseded to 532155106)

$10.99

$

In Stock, Qty 13

0

37

Poulan 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 2 left!

0

38

Poulan 532424691

INSERT, WHEEL STEERING

$7.99

$

In Stock, only 1 left!

0

39

Poulan 819113812

WASHER.11/32

$6.49

$

Usually ships in 3-10 days

0

40

Poulan 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0

41

Poulan 532186737

ADAPTER, WHEEL STNG..
(Superseded to 532437747)

$9.49

$

In Stock, Qty 8

0

42

Poulan 532169633

BOOT.STEERING.SHAFT.BLACK

Note: 145054428

$8.99

$

In Stock, only 1 left!

0

43

Poulan 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

44

Poulan 532190752

SHAFT.EXTEN.STRG.SPLINE

$17.99

$

In Stock, only 1 left!

0

46

Poulan 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 9

0

65

Poulan 532414736

SPACER.BRACE.AXLE

$6.99

$

In Stock, Qty 5

0

67

Poulan 872110618

BOLT CARRIAGE

$6.49

$

In Stock, only 2 left!

0

68

Poulan 532169827

BRACE.AXLE.15"TIRES

$21.99

$

Usually ships in 3-10 days

0

71

Poulan 532175146

STEERING ASM

$182.99

$

In Stock, only 3 left!

0

82

Poulan 532199978

BRACKET.SUSP.CHASSIS.FRONT.15

$15.99

$

Usually ships in 3-10 days

0

88

Poulan 532175118

BOLT, SHOULDER 7/16-20

$6.49

$

Usually ships in 3-10 days

0

91

Poulan 532175553

CLIP.STEERING

$13.99

$

In Stock, only 1 left!

0

95

Poulan 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

97

Poulan 532428982

BOLT 5/16-18 X 4 W/PATCH

$4.99

$

Usually ships in 3-10 days

0
