PO 14542 LT (960120112-00) - Poulan Lawn Tractor (2010-09) ENGINE Parts Diagram

Lawn Tractor

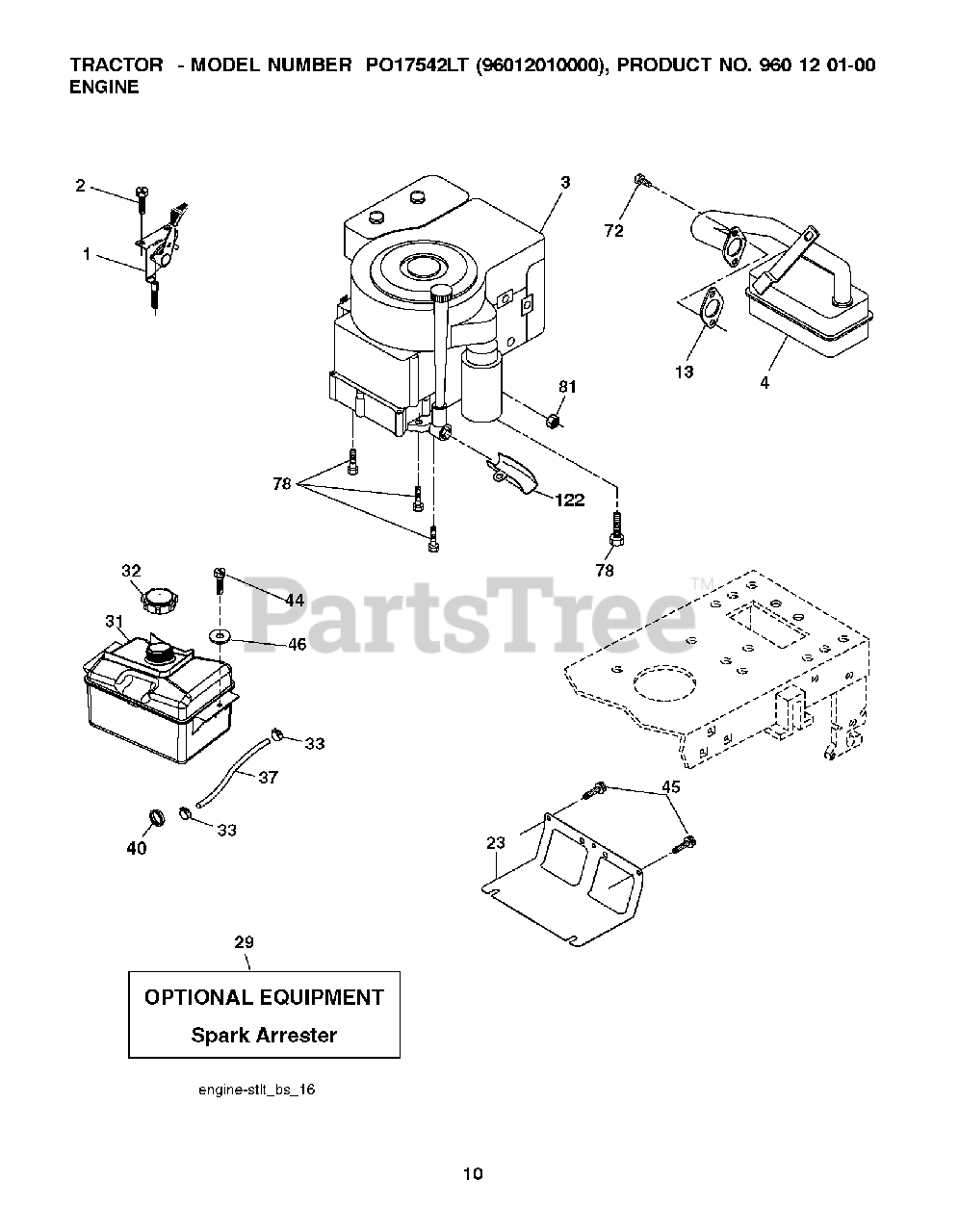

ENGINE Parts Diagram

  • Title

1

Poulan 532170551

CONTROL.THROTTLE/CHOKE.BLACK

$37.99

$

Usually ships in 3-10 days

0

2

Poulan 817720408

SCREW
(Superseded to 874780408)

Note: 177204008

$1.49

$

Usually ships in 3-10 days

0

3

Poulan TBD

Note: ENGINEB S 31C707-1346-B1

$

$

Not available

4

Poulan 532137352

MUFFLER.LT.BRIGGS.14HP.IC/OHV

$45.99

$

In Stock, only 3 left!

0

13

Poulan 532165291

(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

23

Poulan 532169837

SHIELD.BROWNING.DBR.GUARD

$10.99

$

Usually ships in 3-10 days

0

29

Poulan 532137180

KIT.SPARK ARRESTOR(392390 B&S)

$182.99

$

In Stock, only 1 left!

0

31

Poulan 532407545

RP TANK FUEL FRT 1.5 GAL
(Superseded to 581289901)

$87.99

$

In Stock, only 1 left!

0

32

Poulan 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Poulan 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

37

Poulan 532401137

LINE.FUEL.20"FRONT.EMI

$14.99

$

Usually ships in 3-10 days

0

40

Poulan 532124028

GROMMET T

$5.99

$

In Stock, only 3 left!

0

44

Poulan 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

45

Poulan 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

46

Poulan 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

72

Poulan 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

78

Poulan 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

81

Poulan 873510400

NUT
(Superseded to 873640400)

$

$

Not available

122

Poulan 532421922

EXTENSION DRAIN OIL

$40.99

$

In Stock, Qty 8

0
