PO 12597 RB (960610349-00) - Poulan Lawn Tractor (2012-11) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

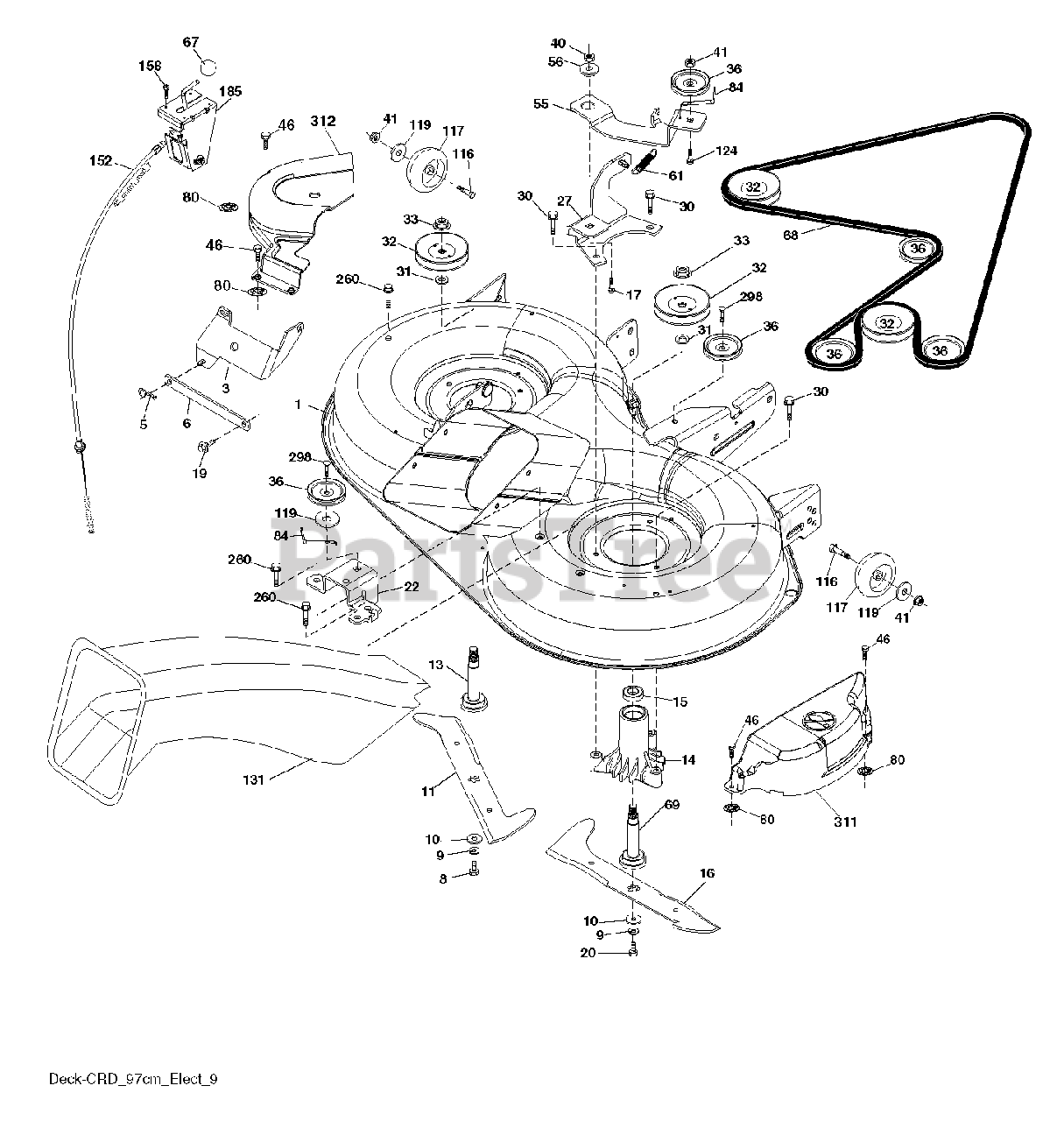

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Poulan 532429121

(Superseded to 583486301)

$399.99

$

Usually ships in 3-10 days

0

3

Poulan 532431864

BRACKET.ASM.BAR.SWAY.CHASS

$24.99

$

Usually ships in 3-10 days

0

5

Poulan 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

6

Poulan 532165557

BAR.SWAY.92.CRD
(Superseded to 165557)

$

$

Not available

8

Poulan 532181712

BOLT.3/8-24X1.25 GR8
(Superseded to 583116901)

$7.49

$

Usually ships in 3-10 days

0

9

Poulan 810030600

(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

10

Poulan 532140296

WASHER.BLADE

$6.99

$

In Stock, only 1 left!

0

11

Poulan 532427984

BLADE.3N1.LH.CRD.97

$66.99

$

Usually ships in 3-10 days

0

13

Poulan 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, only 2 left!

0

14

Poulan 532128774

HSG MANDREL

$34.99

$

In Stock, only 1 left!

0

15

$13.99

$

In Stock, Qty 6

0

16

Poulan 532427985

BLADE.3N1.RH.CRD.97

$66.99

$

Usually ships in 3-10 days

0

17

Poulan 872140610

(Superseded to 583611601)

$4.99

$

Usually ships in 3-10 days

0

19

Poulan 532132827

BOLT SHD 5/16-18

$

$

Not available

20

Poulan 532181713

BOLT.3/8-24X1.25GR8. LHTHRD
(Superseded to 583117001)

$4.99

$

In Stock, Qty 11

0

22

Poulan 532431169

BRACKET.SUPT.IDLER.REAR.RH

$

$

Not available

27

Poulan 532427981

BRACKET.ASM.SUSP.REAR.RH.

$

$

Not available

30

Poulan 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Poulan 532187690

WASHER.SPACER.MANDREL

$4.99

$

Usually ships in 3-10 days

0

32

Poulan 532153532

PULLEY MANDREL
(Superseded to 532173435)

$22.99

$

In Stock, Qty 8

0

33

Poulan 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 18

0

36

Poulan 532146763

PULLEY.IDLER.4.25
(Superseded to 593787801)

$31.99

$

Usually ships in 3-10 days

0

40

Poulan 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 9

0

41

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

46

Poulan 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

55

Poulan 532199498

(Superseded to 583252901)

$30.99

$

Usually ships in 3-10 days

0

56

Poulan 532165723

SPACER.RETAINER.MOWER

$6.99

$

In Stock, only 2 left!

0

61

Poulan 532199486

(Superseded to 583252601)

$10.99

$

Usually ships in 3-10 days

0

67

Poulan 532106932

KNOB T (3/8 HOLE)

$7.99

$

In Stock, Qty 5

0

68

Poulan 532429532

BELT.DRIVE.CRD.97.201
(Superseded to 584454401)

$121.99

$

Usually ships in 3-10 days

0

69

Poulan 532165482

SHAFT.ASM.W/LWR.BRG.RH.THREAD

$68.99

$

Usually ships in 3-10 days

0

80

Poulan 532423062

PALNUT 1/4

$4.99

$

In Stock, only 4 left!

0

84

Poulan 532156085

(Superseded to 532173968)

$

$

Not available

116

Poulan 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Poulan 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

119

$1.99

$

Usually ships in 3-10 days

0

124

Poulan 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

131

Poulan 532165661

CHUTE BAGGER

$93.99

$

Usually ships in 3-10 days

0

$

$

Not available

158

Poulan 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

185

Poulan 532188234

HEAD ASM. CABLE CLUTCH

$53.99

$

Usually ships in 3-10 days

0

260

Poulan 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

298

Poulan 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

$

$

Not available

$

$

Not available

--

Poulan 532181857

(Superseded to 583118201)

Note: Mandrel Assembly (Includes housing shaft assembly and bearing only- pulley /nut /washer and blade bolt /washers not included)

$91.99

$

Usually ships in 3-10 days

0

--

Poulan 532181858

(Superseded to 583118301)

$96.99

$

Usually ships in 3-10 days

0

--

Poulan 532431580

Note: Replacement Mower Complete (Std Deck- Order separately guage wheel components key nos 116 117 119)

$

$

Not available
