PO 12530 LT (960420105-00) - Poulan Lawn Tractor (2010-02) Mower Deck Parts Diagram

Lawn Tractor

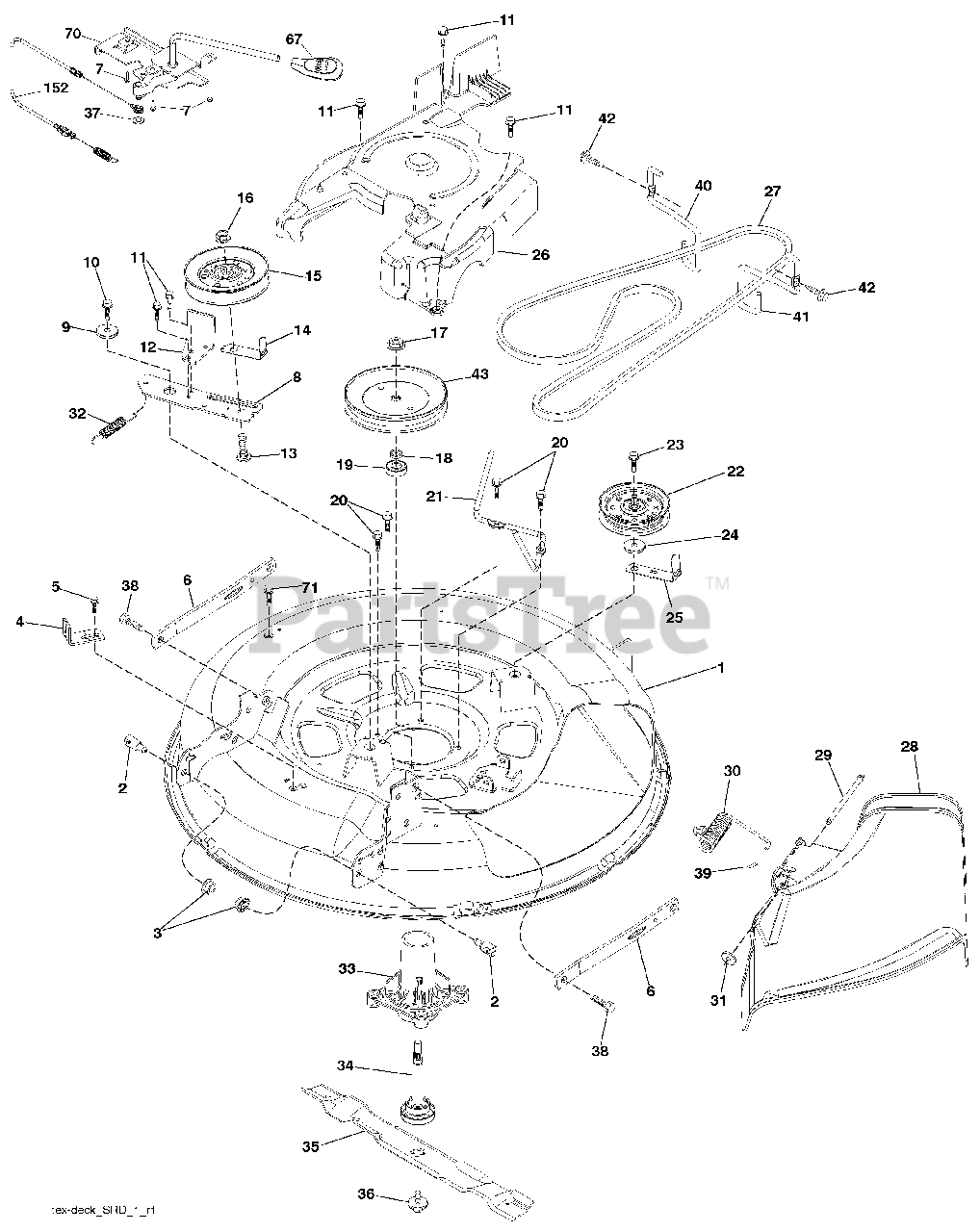

Mower Deck Parts Diagram

  • Title

1

Electrolux/AYP 419272

Deck Weldment 30"Srd
(Superseded to 583749801)

$399.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 195161

Stud Fastner w/'d'anti-Rotatio
(Superseded to 532195161)

$

$

Not available

3

Electrolux/AYP 73900500

Nut Lock Hex Flange 5/16 - 18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 417645

Bracket Clutch Cable

$2.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 17000510

Bolt 5/16-18
(Superseded to 817000510)

$7.49

$

In Stock, Qty 20+

0

6

Electrolux/AYP 418863

Arm Susp Mower Rear Srd

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 416358

Screw #10 x 0.750 BOS Thread
(Superseded to 596321701)

$3.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 420252

Arm Idler 30"Srd
(Superseded to 583379801)

$10.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 199092

Spacer Retainer
(Superseded to 532199092)

$7.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 17000616

Screw 3/8 - 16 X 1 Smgml Tap/R Blk
(Superseded to 817000616)

$7.49

$

In Stock, Qty 20+

0

11

Electrolux/AYP 137729

Screw Thd Roll 1/4 - 20 X 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 199470

Arm Brake Mower 38" RH Tex
(Superseded to 532400130)

$22.99

$

In Stock, Qty 15

0

13

Electrolux/AYP 72110612

Bolt Carr Sh 3/8 - 16 X 1 - 1/2 Gr5
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 156085

Keeper Belt Idler
(Superseded to 597024901)

$4.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 146763

Pulley Idler V-Groove Dim 4.25
(Superseded to 593787801)

$31.99

$

Usually ships in 3-10 days

0

16

Murray 73900600

Nut Lock FlG 3/8 - 16 unc

$

$

Not available

17

Electrolux/AYP 400234

Nut Flange Lock Top
(Superseded to 596134801)

$4.99

$

In Stock, Qty 20+

0

18

Electrolux/AYP 187690

Washer Spacer Mandrel
(Superseded to 532187690)

$5.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 110485X

Bearing Ball Mandrel
(Superseded to 532110485)

$14.99

$

In Stock, Qty 20+

0

20

Electrolux/AYP 173984

Screw Thd Roll Dod Pt Hex
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

21

Electrolux/AYP 416910

Keeper Belt Mandrel 30"
(Superseded to 583361601)

$15.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 193198

Pulley Idler Flat Unplated
(Superseded to 596481402)

$31.99

$

In Stock, only 1 left!

0

23

Electrolux/AYP 17490628

Screw Thdrol 3/8 - 16 X 1-3/4
(Superseded to 817490628)

$3.49

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 19132012

Washer 13/32 X 1 - 1/4 X 12 Ga
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 420253

Keeper Belt 30"Srd
(Superseded to 529311701)

$6.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 420255

Cover Mandrel Mwr 30"Black
(Superseded to 583481101)

$62.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 419271

Drive, Belt
(Superseded to 532419271)

$60.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 417344

Deflector

$25.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 420895

Hinge Pin

$2.49

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 197026

Spring Torsion
(Superseded to 532197026)

$11.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 110452X

Nut Push
(Superseded to 532110452)

$3.99

$

In Stock, Qty 20+

0

32

Electrolux/AYP 401872

Spring Return Deck 38/46"
(Superseded to 532401872)

$5.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 187281

Housing Mandrel 4pt Service
(Superseded to 587819701)

$62.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 192872

Shaft Asm Mndrl N/Greaseable 38
(Superseded to 587819701)

$62.99

$

In Stock, Qty 20+

0

35

Electrolux/AYP 419274

Blade Mower Bagging Srd
(Superseded to 532419274)

$37.99

$

In Stock, Qty 20+

0

36

Electrolux/AYP 193003

Bolt/Washer Asm 7/16 - 20 unf
(Superseded to 532193003)

$9.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 19131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

38

Electrolux/AYP 196539

Bolt Shoulder
(Superseded to 532196539)

$7.49

$

In Stock, Qty 20+

0

39

Electrolux/AYP 105304X

Cap Sleeve
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 419270

Keeper Belt Engine LH
(Superseded to 583374701)

$15.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 419265

Keeper Belt Engine RH
(Superseded to 583374601)

$

$

Not available

42

Electrolux/AYP 17000612

Screw Hexwsh THDR 3/8-16 x 3/4 BL
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

43

Electrolux/AYP 416877

Pulley Mandrel 6 5 Pd 30"
(Superseded to 525568001)

$34.99

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 198398X505

Handle clutch cable
(Superseded to 532441477)

$10.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 198332

Clutch Asm. Manual
(Superseded to 532198332)

$

$

Not available

71

Electrolux/AYP 17670608

Screw 3/8-16 x 1/2
(Superseded to 817670608)

$6.49

$

Usually ships in 3-10 days

0

152

Electrolux/AYP 408714

Manual Clutch Cable
(Superseded to 532435111)

$37.99

$

In Stock, Qty 20+

0

152

Electrolux/AYP 192870

Mandrel Assembly
(Superseded to 587819701)

Note: (Includes Housing, Shaft Assembly, And Bearing Only -Pulley/Nut/Washer And Blade Bolt/Washers Not Included)

$62.99

$

In Stock, Qty 20+

0

152

Electrolux/AYP 431888

Replacement Mower Complete

$560.99

$

Usually ships in 3-10 days

0
