PO 10538 LT (960480070-00) - Poulan Lawn Tractor (2013-12) STEERING Parts Diagram

Lawn Tractor

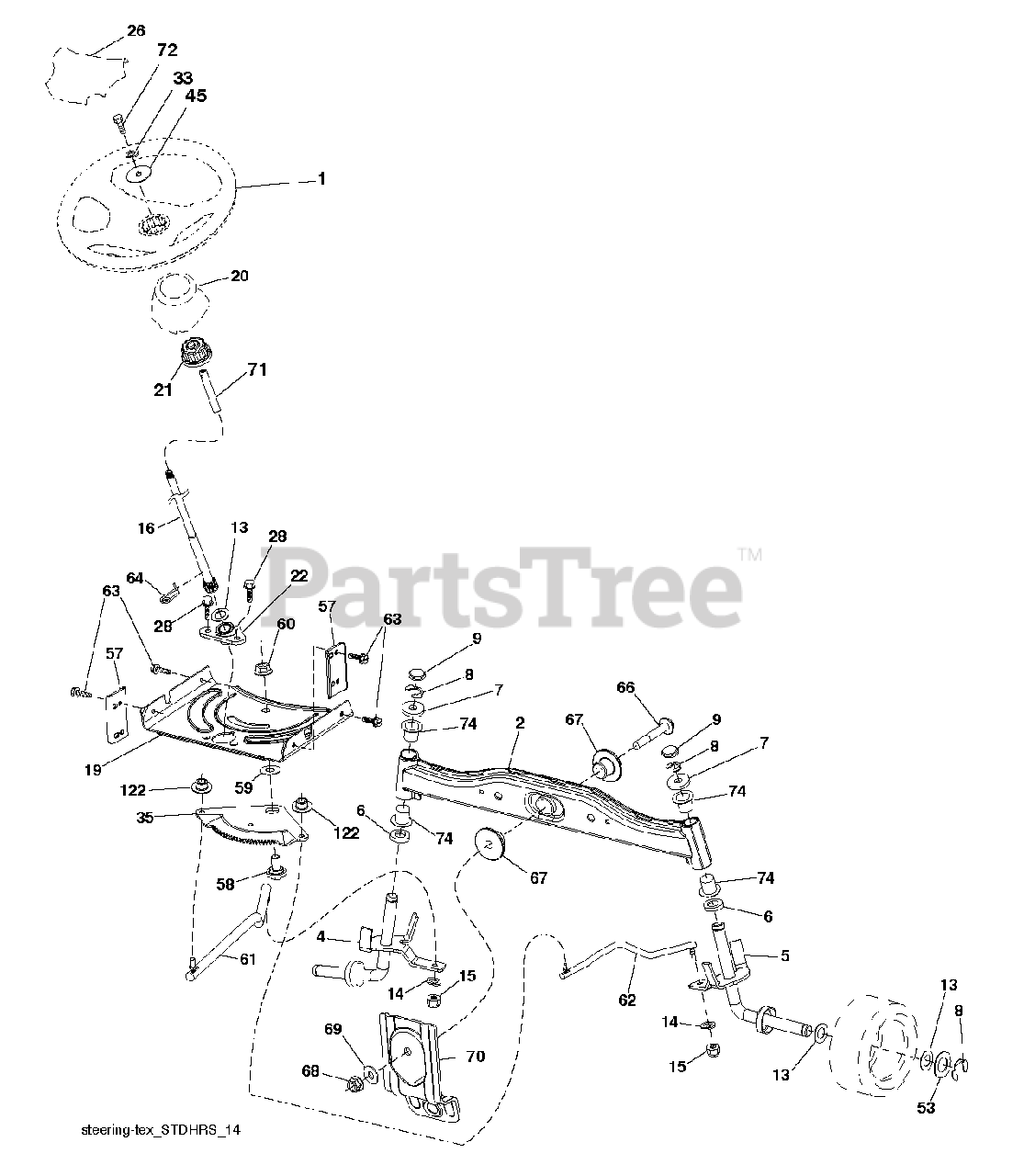

STEERING Parts Diagram

  • Title

1

Poulan 532424543

WHEEL.STEERING.HARD.RIM.BLAC

$43.99

$

In Stock, Qty 6

0

2

Poulan 532418168

AXLE HALF ASM-WELDED

$46.99

$

Usually ships in 3-10 days

0

4

Poulan 532403087

SPINDLE.WELDED.LH.15"TEX
(Superseded to 596873601)

Note: LH

$17.99

$

In Stock, Qty 10

0

5

Poulan 532403088

SPINDLE.WELDED.RH.15"T
(Superseded to 596873701)

Note: RH

$9.99

$

In Stock, Qty 20+

0

6

Poulan 532124931

(Superseded to 532006266)

$7.49

$

In Stock, Qty 10

0

7

Poulan 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

8

Poulan 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 8

0

13

Poulan 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

14

Poulan 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

15

Poulan 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0

16

Poulan 532429374

SHAFT.STEER.3/4.NON-PLATED.TEX
(Superseded to 587738903)

$51.99

$

In Stock, only 1 left!

0

19

Poulan 532194729

PLATE.STEER.DDL.NLT/NG

$18.99

$

Usually ships in 3-10 days

0

20

Poulan 532411291

BOOT STEERING BLACK

$17.99

$

In Stock, Qty 18

0

21

Poulan 532186737

ADAPTER, WHEEL STNG..
(Superseded to 532437747)

$9.49

$

In Stock, Qty 6

0

22

Poulan 532420537

STEERING.SUPT.LOWER.
(Superseded to 587738901)

$17.99

$

In Stock, only 3 left!

0

26

Poulan 532424691

INSERT, WHEEL STEERING

$7.99

$

In Stock, only 1 left!

0

28

Poulan 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

33

Poulan 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

35

Poulan 532194732

GEAR.SECTOR.PLATE.DDL.

$31.99

$

In Stock, Qty 20+

0

45

Poulan 819113812

WASHER.11/32

$6.49

$

Usually ships in 3-10 days

0

53

Poulan 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

57

Poulan 532407465

BRACKET.UPSTOP.TEX

$6.99

$

In Stock, only 1 left!

0

58

Poulan 532194747

BOLT.SHOULDER.SECTOR.P

$9.49

$

In Stock, Qty 6

0

59

Poulan 532194748

WASHER.THURST.SECTOR.S

$7.49

$

In Stock, only 3 left!

0

60

Poulan 873971000

NUT FLANGE LOCK 5/8-11
(Superseded to 583612801)

$7.49

$

In Stock, only 2 left!

0

61

Poulan 532194740

DRAGLINK.LH.BALLSTUD.D
(Superseded to 597047801)

Note: LH

$12.99

$

Usually ships in 3-10 days

0

62

Poulan 532194741

DRAGLINK.RH.BALLSTUD.D
(Superseded to 597047902)

Note: RH

$13.99

$

In Stock, Qty 20+

0

63

Poulan 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

64

Poulan 532199849

RETAINER.CLIP.SPRING.S

$6.49

$

In Stock, Qty 8

0

66

Poulan 871020748

BOLT HEX FGHD 7/16-14 X 3 SERR

$6.49

$

In Stock, only 4 left!

0

67

Poulan 532194737

BUSHING.PM.FRONT AXLE

$

$

Not available

68

Poulan 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 12

0

69

Poulan 532199162

WASHER.1.5X.505X.118

$6.49

$

In Stock, only 2 left!

0

70

Poulan 532196197

BRKT.DECK.SUSPENSION.F
(Superseded to 585338801)

$9.99

$

Usually ships in 3-10 days

0

71

Poulan 532190752

SHAFT.EXTEN.STRG.SPLINE

$17.99

$

In Stock, only 1 left!

0

72

Poulan 532428982

BOLT 5/16-18 X 4 W/PATCH

$4.99

$

Usually ships in 3-10 days

0

74

Poulan 532124937

Steering Column Bearing
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

122

Poulan 532444962

CAP.GEAR.SECTOR.TEX
(Superseded to 583576601)

$6.49

$

In Stock, Qty 6

0
