PO 10538 LT (960480070-00) - Poulan Lawn Tractor (2013-12) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

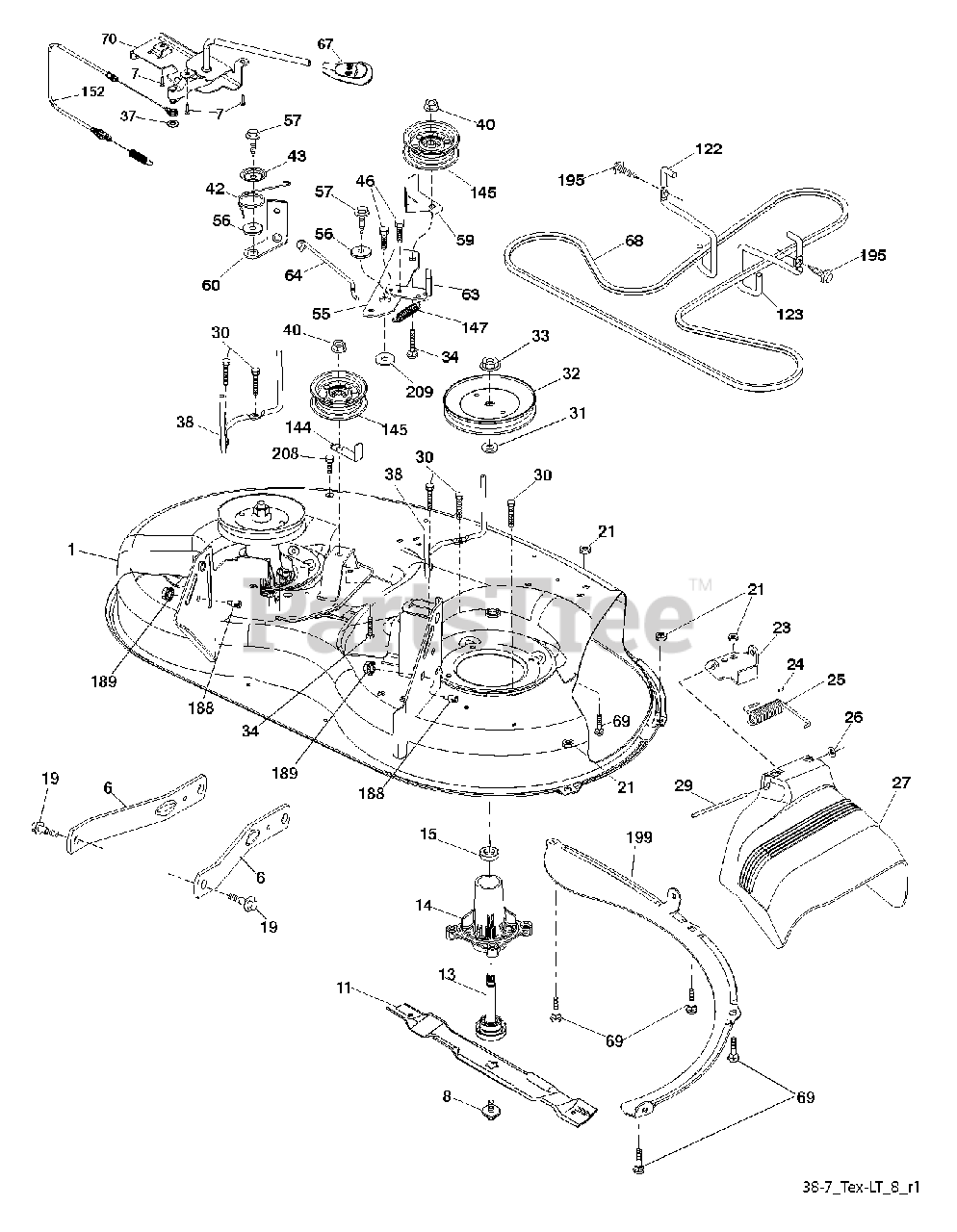

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Poulan 532194251

NO LONGER AVAILABLE
(Superseded to 583215501)

$399.99

$

Usually ships in 3-10 days

0

6

Poulan 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

7

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

8

Poulan 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

11

Poulan 532193957

BLADE 38" PREMIUM
(Superseded to 581116302)

$17.99

$

Usually ships in 3-10 days

0

13

Poulan 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

14

Poulan 532187281

HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

15

Poulan 532110485

BEARING

$13.99

$

In Stock, Qty 11

0

19

Poulan 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

21

Poulan 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Poulan 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 8

0

24

Poulan 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Poulan 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 20+

0

26

Poulan 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 532193968

SHIELD, DEFLECTOR
(Superseded to 532192572)

$80.99

$

In Stock, only 1 left!

0

29

Poulan 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Poulan 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

31

Poulan 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 20+

0

32

Poulan 532199789

PULLEY.MANDREL.5.0.PD.38"

$20.99

$

Usually ships in 3-10 days

0

33

Poulan 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

34

Poulan 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

38

Poulan 532199541

KEEPER BELT LH MANDREL
(Superseded to 532400140)

$53.99

$

In Stock, only 1 left!

0

40

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

42

Poulan 532198410

SPRING.TORSION.BRAKE

$6.49

$

In Stock, Qty 6

0

43

Poulan 532197256

SRPING.TORSION.RETAINE

$6.49

$

In Stock, Qty 7

0

46

Poulan 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

55

Poulan 532197249

IDLER.ARM

$

$

Not available

56

Poulan 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

57

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

59

Poulan 532141043

GUARD, BELT

Note: 94

$

$

Not available

60

Poulan 532199471

ARM BRAKE MOWER RH 38"
(Superseded to 532199471)

Note: LH

$17.99

$

In Stock, only 3 left!

0

63

Poulan 532199470

ARM BRAKE MOWER RH
(Superseded to 532400130)

$18.99

$

In Stock, only 2 left!

0

64

Poulan 532199790

LINK BRAKE
(Superseded to 532199918)

$24.99

$

Usually ships in 3-10 days

0

67

Poulan 532403012

HANDLE.CLUTCH.CABLE.LT

$12.99

$

In Stock, only 1 left!

0

68

Poulan 532408381

Drive Belt, 38"

$60.99

$

In Stock, only 1 left!

0

69

Poulan 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

70

Poulan 532198332

CLUTCH.ASM.MANUAL.LT.TEX

$80.99

$

In Stock, only 1 left!

0

122

Poulan 532197258

KEEPER BELT ENGINE LH
(Superseded to 531169501)

Note: LH

$7.49

$

In Stock, only 4 left!

0

123

Poulan 532197259

KEEPER BELT RH

Note: RH

$

$

Not available

144

Poulan 532193414

KEEPER BELT

$6.49

$

In Stock, only 1 left!

0

145

Poulan 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$

In Stock, Qty 9

0

147

Poulan 532401872

SPRING RETURN

$5.99

$

In Stock, Qty 7

0

152

Poulan 532435111

CABLE.CLUTCH.MANUAL.

$34.99

$

In Stock, only 2 left!

0

188

Poulan 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

189

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

195

Poulan 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

199

Poulan 532400095

BAFFLE.VORTEX.FRONT.38"

$18.99

$

Usually ships in 3-10 days

0

208

Poulan 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

209

Poulan 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

Poulan 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

Note: MANDREL ASSEMBLY (Includes housing (key 14) shaft assembly (key 13) bearing (key 15) and nut (key 33) only- pulley /washer and blade bolt /washers not included)

$56.99

$

In Stock, Qty 20+

0

Poulan 532433270

(Superseded to 583488701)

Note: NOT SHOWN

$566.99

$

Usually ships in 3-10 days

0
