PNS740KC604 - Exmark 60" Pioneer S-Series Zero-Turn Mower, Kohler CV740 (SN: 314000000 - 314999999) (2014) Caster Wheel Assembly No. 103-5189 Parts Diagram

60" Pioneer S-Series Zero-Turn Mower, Kohler CV740

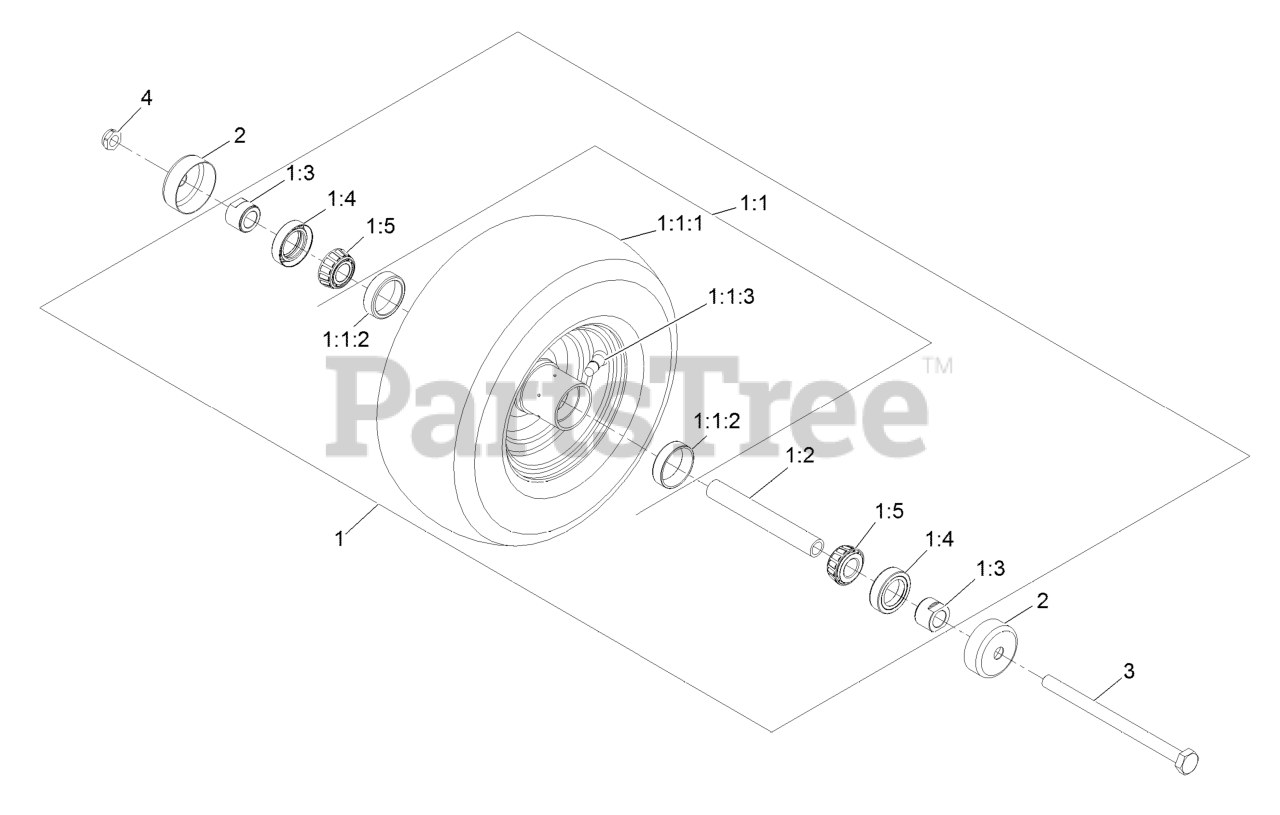

Caster Wheel Assembly No. 103-5189 Parts Diagram

  • Title

1

Asm, Wheel And Brg 13x5.00-6

Note: Not serviced separately

$

$

Not available

1:1

Asm, Wheel And Tire 13x5.00-6

Note: Not serviced separately

$

$

Not available

1:1:1

Exmark 1-633002

TIRE

$99.99

$

Usually ships in 3-6 days

0

1:1:2

Exmark 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 12

0

1:1:3

Exmark 5108

VALVE

$6.99

$

In Stock, Qty 16

0

1:2

Exmark 103-3155

126-5360
(Superseded to 126-5360)

$15.99

$

In Stock, only 2 left!

0

1:3

Exmark 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$9.49

$

In Stock, Qty 12

0

1:4

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 6

0

1:5

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 20+

0

2

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

3

Exmark 325-36

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0
