PNS740GKC60RA3 - Exmark 60" Pioneer S-Series Zero-Turn Mower, Kohler ZT740 (SN: 316000000 - 399999999) (2016) RH Transaxle Assembly Parts Diagram

60" Pioneer S-Series Zero-Turn Mower, Kohler ZT740

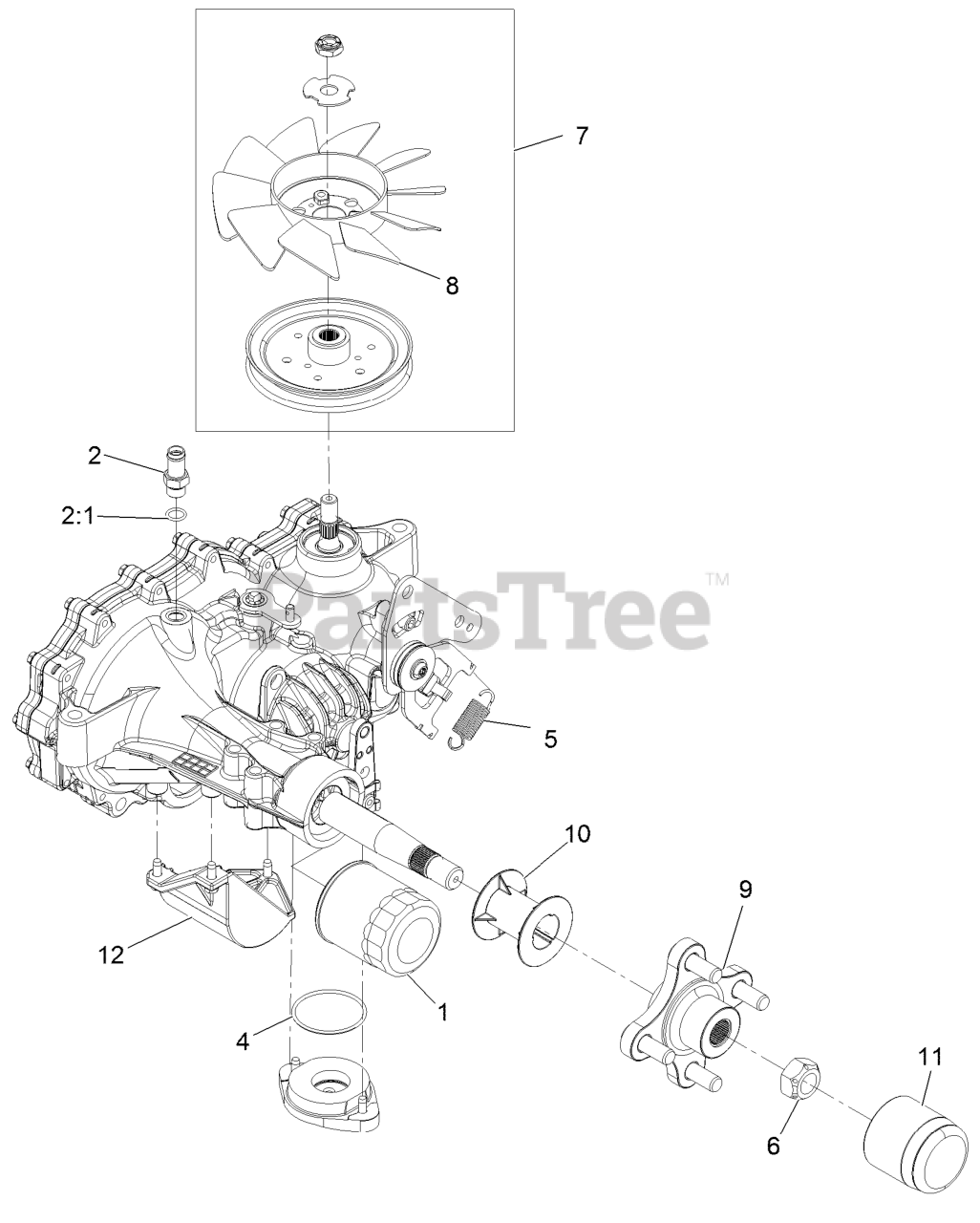

RH Transaxle Assembly Parts Diagram

  • Title

1

Exmark 109-3321

ELEMENT-OIL FILTER, HYD

$31.99

$

In Stock, only 4 left!

0

2

Exmark 109-3278

ADAPTER-STRAIGHT

$124.99

$

Usually ships in 3-6 days

0

2:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

4

Exmark 109-3540

O RING-SEAL

$6.49

$

In Stock, Qty 6

0

5

Exmark 109-5592

SPRING-EXTENSION

$17.99

$

In Stock, only 2 left!

0

6

Exmark 109-3536

NUT-HUB

$22.99

$

Usually ships in 3-6 days

0

7

Exmark 1-213247

DISCONTINUED

$

$

Not available

8

Exmark 114-8453

125-0059
(Superseded to 135-7347)

$95.99

$

In Stock, only 1 left!

0

9

Exmark 116-3872

HUB-OFFSET

$69.99

$

In Stock, only 1 left!

0

10

Exmark 116-6213

TUBE-AXLE

$12.99

$

In Stock, only 1 left!

0

11

Exmark 116-6214

CAP-AXLE, LONG

$17.99

$

In Stock, only 1 left!

0

12

Exmark 120-7981

GUARD-FILTER, RH

$34.99

$

Usually ships in 3-6 days

0

99

Exmark 109-3537

SEAL KIT
(Superseded to 140-8351)

Note: Not illustrated

$90.99

$

In Stock, Qty 6

0
