PNS740GKC60RA3 - Exmark 60" Pioneer S-Series Zero-Turn Mower, Kohler ZT740 (SN: 316000000 - 399999999) (2016) Caster Wheel Assembly No. 117-0361 Parts Diagram

60" Pioneer S-Series Zero-Turn Mower, Kohler ZT740

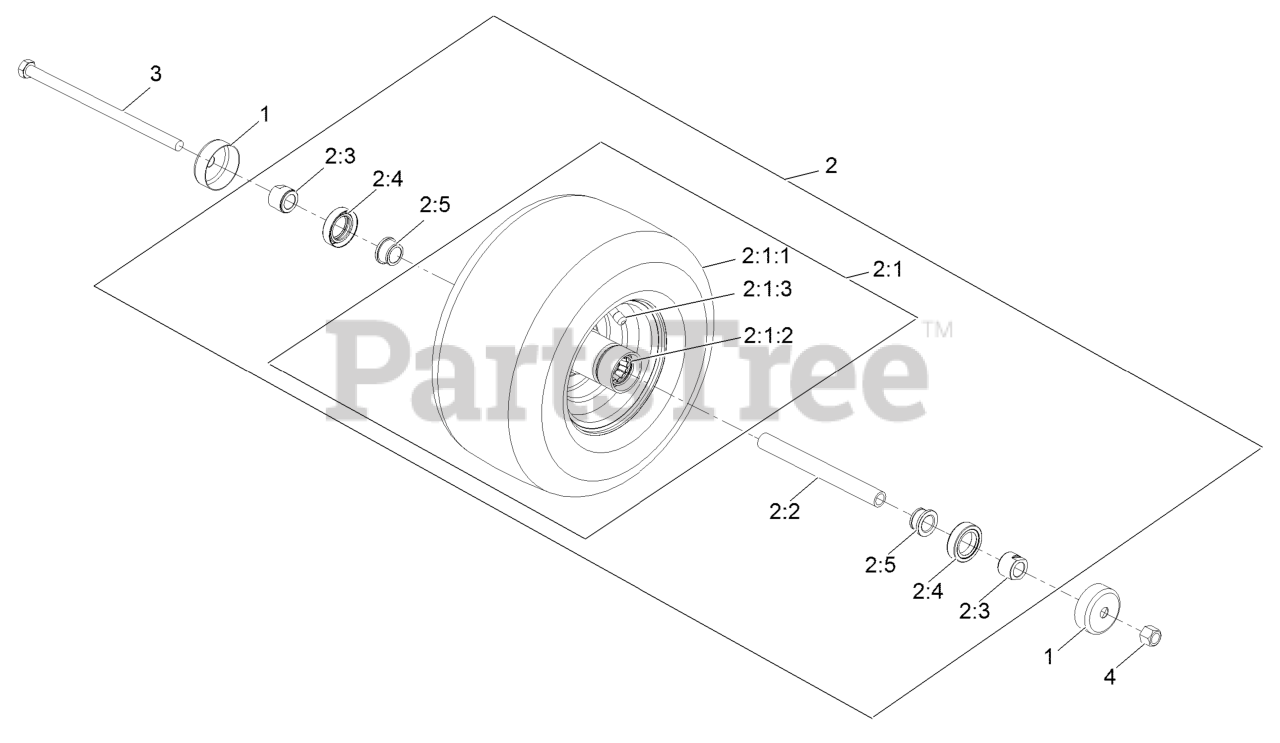

Caster Wheel Assembly No. 117-0361 Parts Diagram

  • Title

1

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

2

Wheel ASM

Note: Not serviced separately

$

$

Not available

2:1

Wheel And Tire ASM

Note: Not serviced separately

$

$

Not available

2:1:1

Exmark 1-523009

TIRE

$113.99

$

Usually ships in 3-6 days

0

2:1:2

Exmark 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 12

0

2:1:3

Exmark 5108

VALVE

$6.99

$

In Stock, Qty 16

0

2:2

Exmark 126-5361

AXLE CASTER ASM

$19.99

$

In Stock, only 2 left!

0

2:3

Exmark 103-3051

SPACER-NUT

$9.49

$

In Stock, Qty 12

0

2:4

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 6

0

2:5

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 20+

0

3

Exmark 325-39

SCREW-HH

$18.99

$

In Stock, Qty 18

0

4

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0
