PNS730KA604 - Exmark 60" Pioneer S-Series Zero-Turn Mower, Kawasaki FX730V (SN: 314000000 - 314999999) (2014) Transaxle Assembly (cont.) Parts Diagram

60" Pioneer S-Series Zero-Turn Mower, Kawasaki FX730V

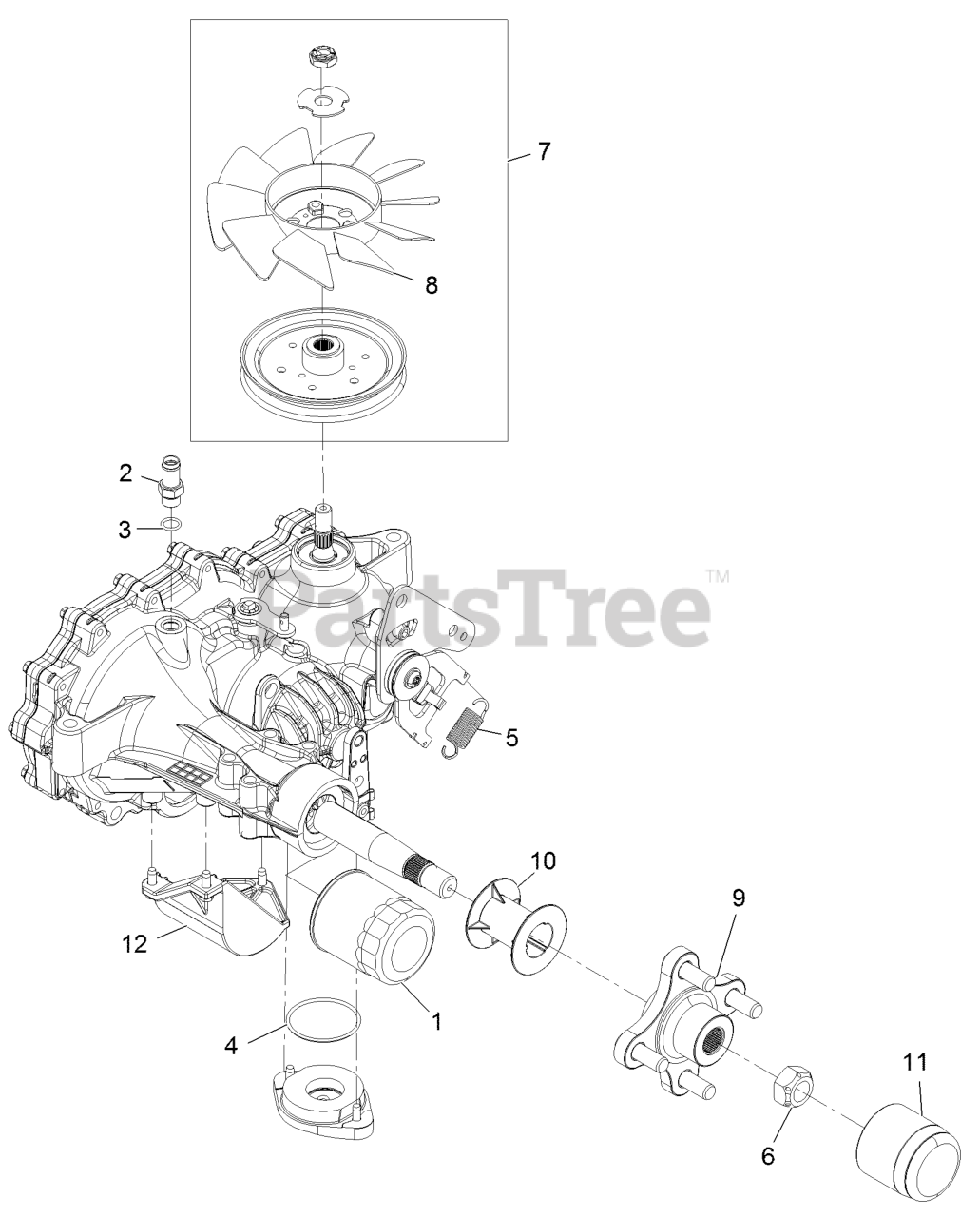

Transaxle Assembly (cont.) Parts Diagram

  • Title

1

Exmark 109-3321

ELEMENT-OIL FILTER, HYD

$29.99

$

In Stock, Qty 20+

0

2

Exmark 109-3278

ADAPTER-STRAIGHT

$132.99

$

Usually ships in 3-6 days

0

3

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 19

0

4

Exmark 109-3540

O RING-SEAL

$6.99

$

In Stock, Qty 11

0

5

Exmark 109-5592

SPRING-EXTENSION

$18.99

$

In Stock, only 2 left!

0

6

Exmark 109-3536

NUT-HUB

$23.99

$

In Stock, only 2 left!

0

7

Exmark 109-5938

125-0059
(Superseded to 135-7347)

$95.99

$

In Stock, only 2 left!

0

8

Exmark 114-8453

125-0059
(Superseded to 135-7347)

$95.99

$

In Stock, only 2 left!

0

9

Exmark 116-3872

HUB-OFFSET

$74.99

$

In Stock, only 4 left!

0

10

Exmark 116-6213

TUBE-AXLE

$13.99

$

In Stock, only 1 left!

0

11

Exmark 116-6214

CAP-AXLE, LONG

$18.99

$

In Stock, only 1 left!

0

12

Exmark 120-7979

GUARD-FILTER, LH

$37.99

$

In Stock, only 1 left!

0

99

Exmark 109-3537

SEAL KIT
(Superseded to 140-8351)

Note: Not illustrated

$95.99

$

In Stock, only 2 left!

0
