PNS730KA604 - Exmark 60" Pioneer S-Series Zero-Turn Mower, Kawasaki FX730V (SN: 314000000 - 314999999) (2014) Roll-Over Protection System Assembly No. 116-3498 Parts Diagram

60" Pioneer S-Series Zero-Turn Mower, Kawasaki FX730V

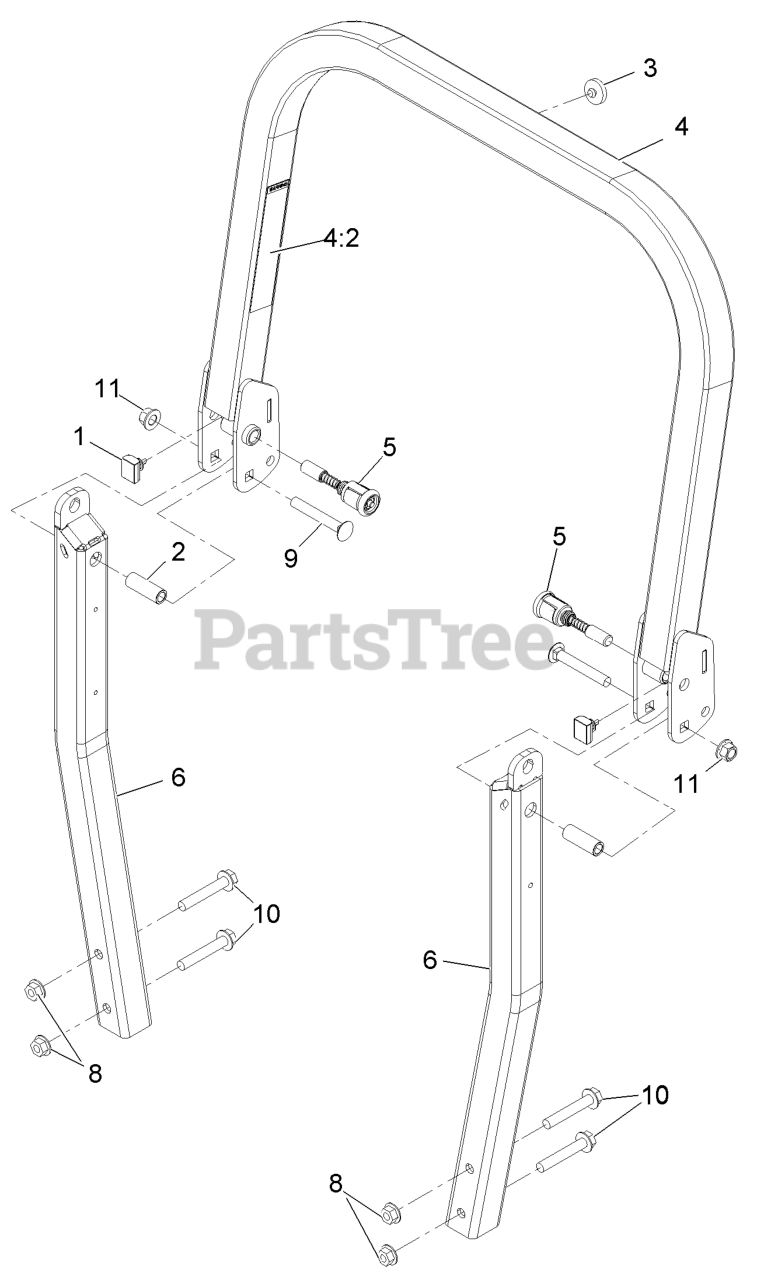

Roll-Over Protection System Assembly No. 116-3498 Parts Diagram

  • Title
1

Exmark 109-5337

BUMPER-ROPS

$6.49

$

In Stock, only 4 left!

0

2

$6.49

$

In Stock, only 2 left!

0

3

Exmark 109-9233

BUMPER-PUSH-IN, RUBBER

$5.49

$

In Stock, Qty 17

0

4

Exmark 116-0019

UPPER ROPS ASM

$499.99

$

Usually ships in 3-6 days

0

4:2

Exmark 107-2102

DECAL-WARNING, FOLDING RO

$9.99

$

In Stock, only 1 left!

0

5

Exmark 116-0104

PIN-SPRING

$47.99

$

In Stock, only 1 left!

0

6

Asm-Lwr Rops Leg

Note: Not serviced separately

$

$

Not available

8

Exmark 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

9

Exmark 3233-10

SCREW-CARR

$7.49

$

In Stock, only 2 left!

0

10

Exmark 3234-40

SCREW-HF

$13.99

$

Usually ships in 3-6 days

0

11

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0
