PNS730GKA604A3 - Exmark 60" Pioneer S-Series Zero-Turn Mower, Kawasaki FX (SN: 315000000 - 315999999) (2015) Seat Assembly Parts Diagram

60" Pioneer S-Series Zero-Turn Mower, Kawasaki FX

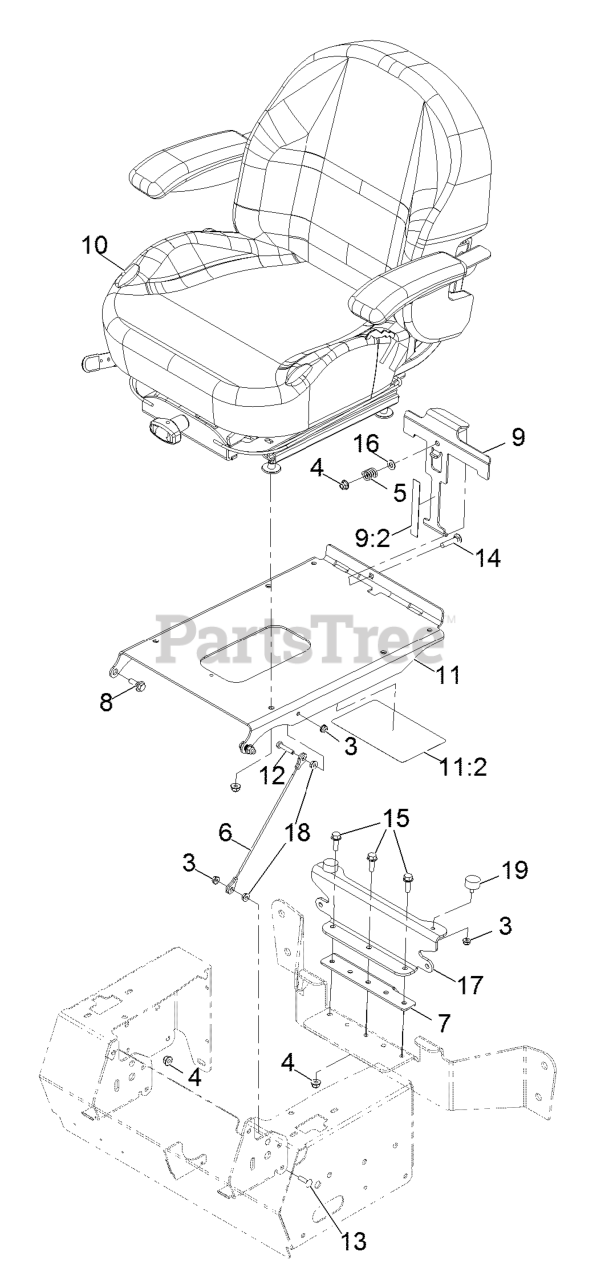

Seat Assembly Parts Diagram

  • Title

3

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

4

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

5

Exmark 107-3017

SPRING-COMPRESSION

$2.99

$

In Stock, only 1 left!

0

6

Exmark 109-2628

CABLE-STOP, SEAT

$19.99

$

In Stock, only 1 left!

0

7

Exmark 116-0871

CATCH,SEAT LATCH

$25.99

$

Usually ships in 3-6 days

0

8

Exmark 116-1297

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

9

Exmark 116-3121

ASM-SEAT LATCH

$101.99

$

Usually ships in 3-6 days

0

9:2

Exmark 116-3120

STRIP-POLY WEAR

$5.99

$

Usually ships in 3-6 days

0

10

Exmark 126-2802

KIT-SEAT SUSPENSION

$1413.99

$

Usually ships in 3-6 days

0

11

Exmark 116-4418

PLATE, SEAT W/DECALS

$153.99

$

Usually ships in 3-6 days

0

11:2

Exmark 109-6016

DECAL-SERVICE AID

$19.99

$

Usually ships in 3-6 days

0

12

Exmark 321-8

SCREW-HH

$3.99

$

In Stock, Qty 9

0

13

Exmark 3229-2

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

14

Exmark 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

0

15

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

16

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Exmark 126-0480-01

PLATE-SEAT SUPPORT

$42.99

$

Usually ships in 3-6 days

0

18

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

19

Exmark 240-14

BUMPER-RUBBER

$14.99

$

Usually ships in 3-6 days

0
